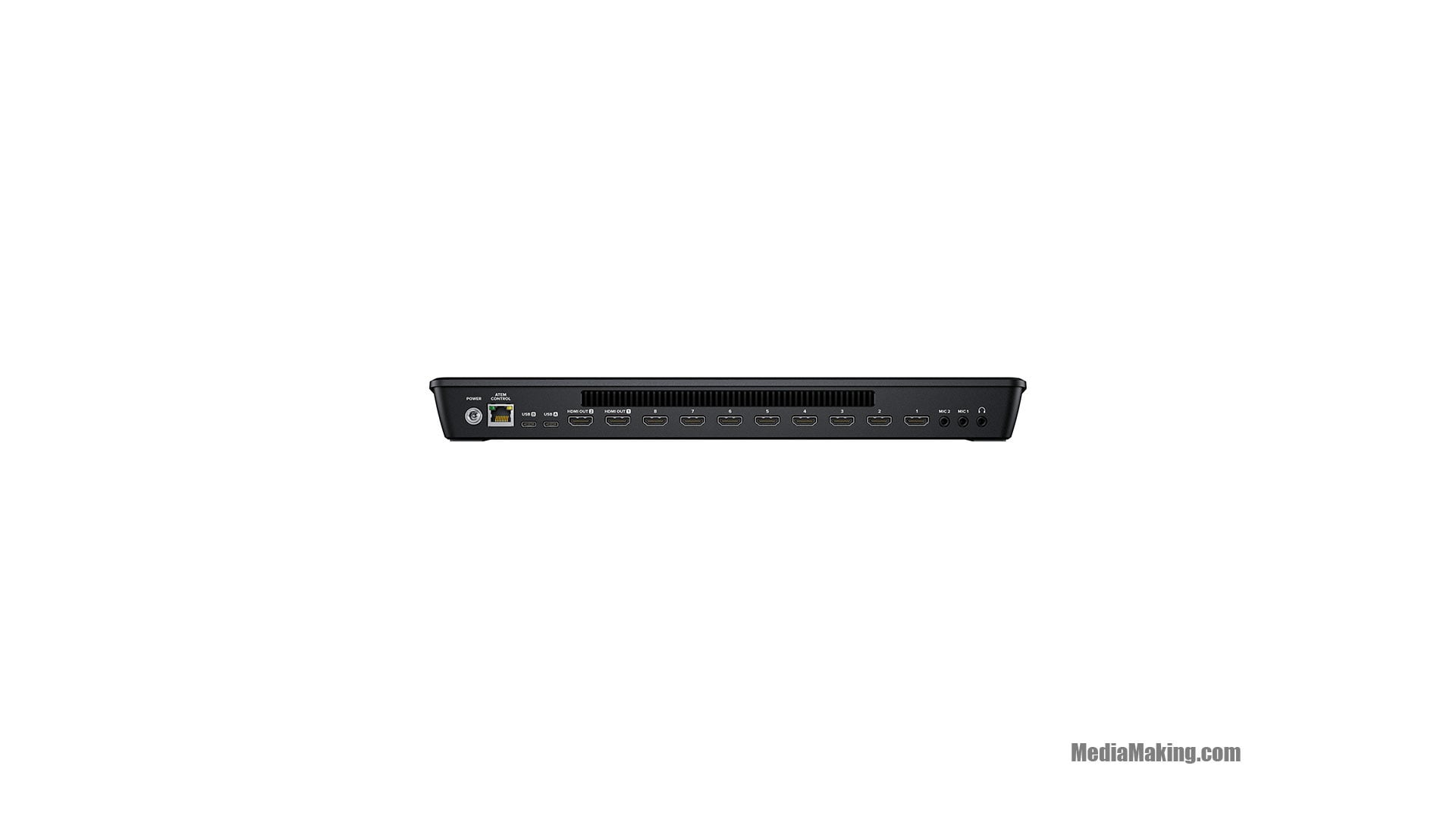

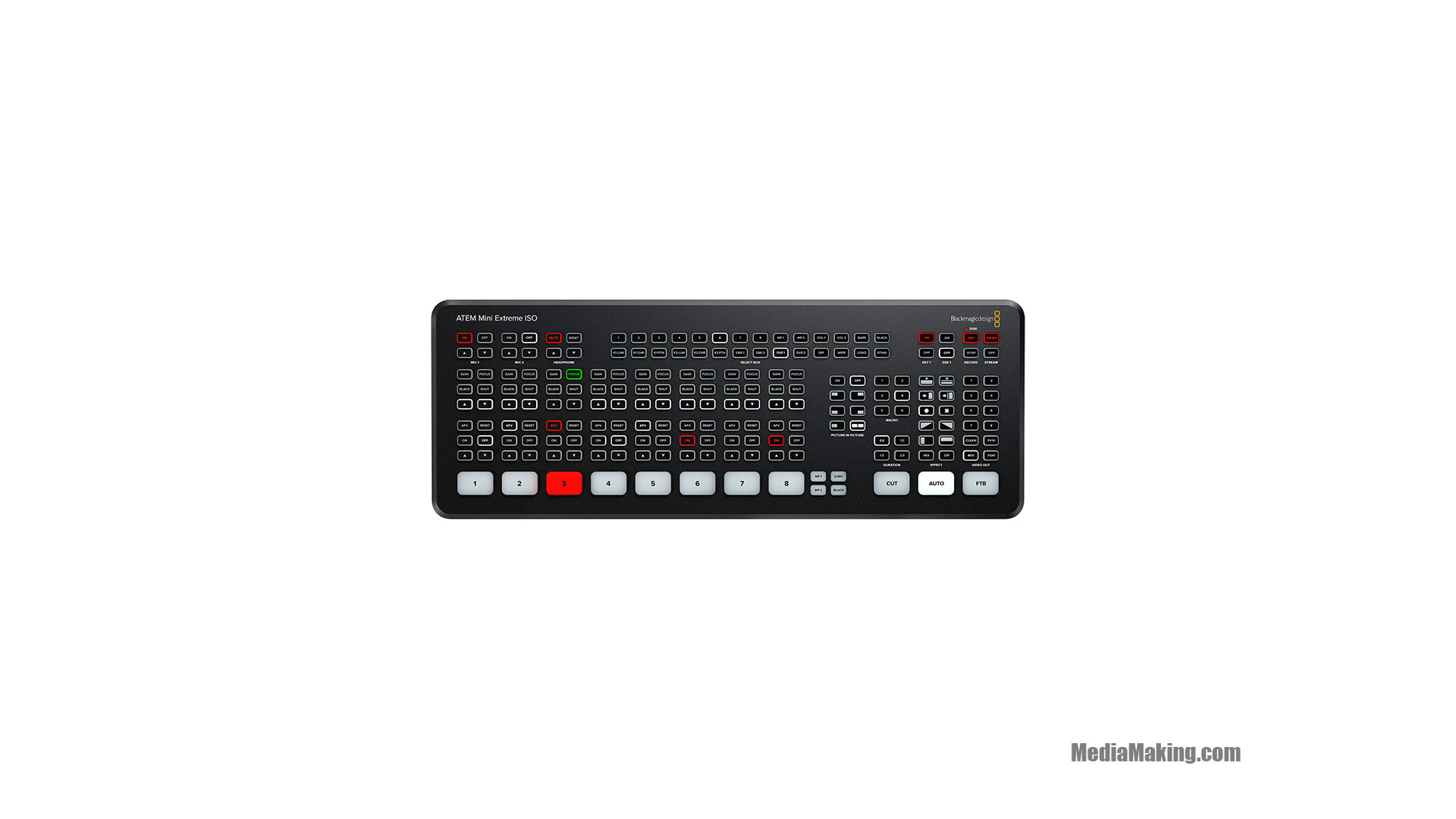

Blackmagic Design ATEM Mini Extreme ISO
Blackmagic Design ATEM Mini Extreme ISO
The Blackmagic Design ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher’s ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher’s eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.
Specifications
Weight 1,23 kg
Dimensions 36,98 x 13,64 x 3,96 cm
Effect Types 2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory 20 Images
Number of video input sources 8
Input video formats HDMI (10 bit 4:2:2 YUV)
1080p: 23,98/24/25/29,97/30/50/59,94/60 fps
1080i: 50/59,94/60 fps
720p: 50/59,94/60 fps
Video output channels 2
Output video formats HDMI (10 bit 4:2:2 YUV)
1080p: 23,98/24/25/29,97/30/50/59,94/60 fps
