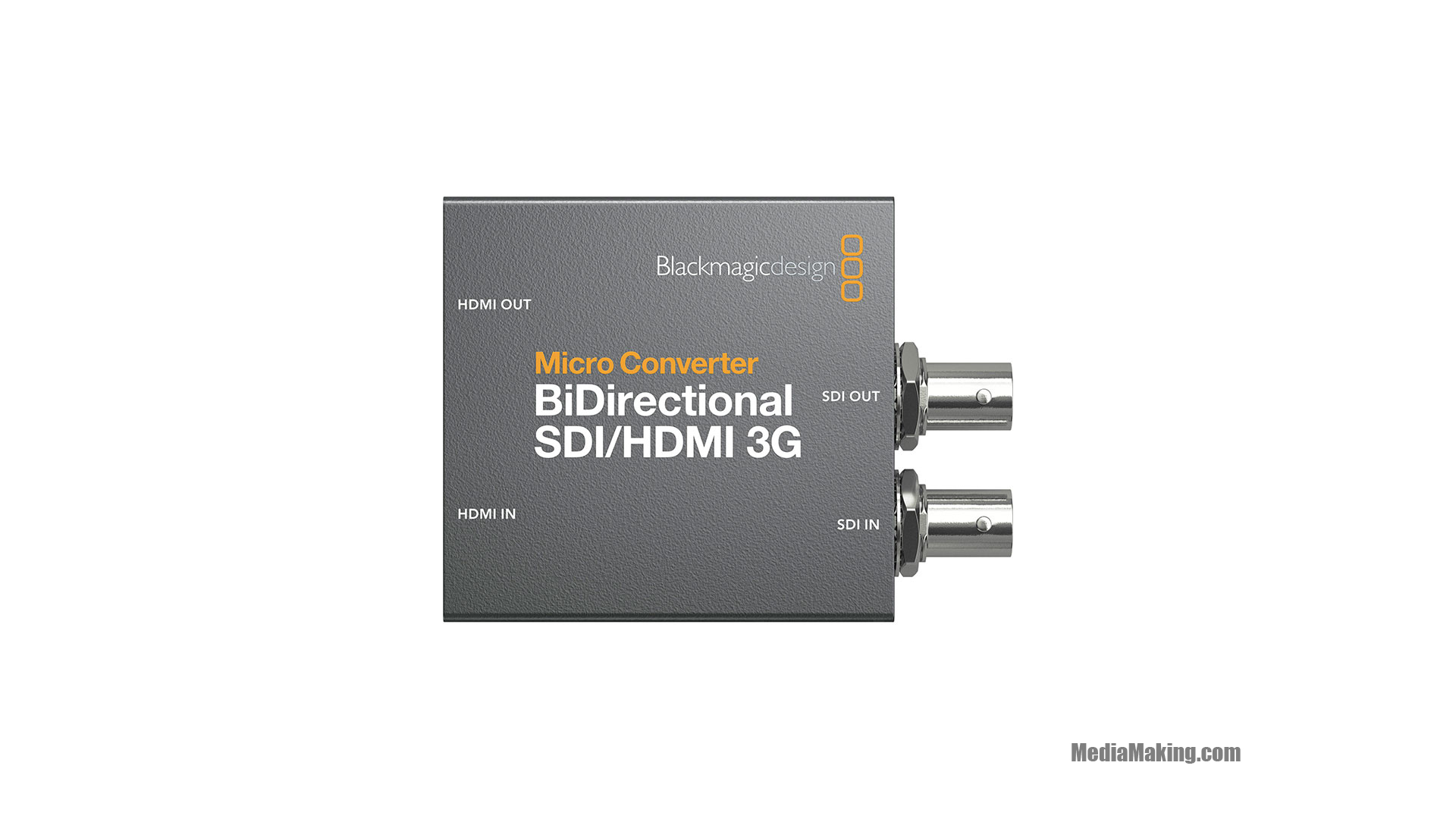

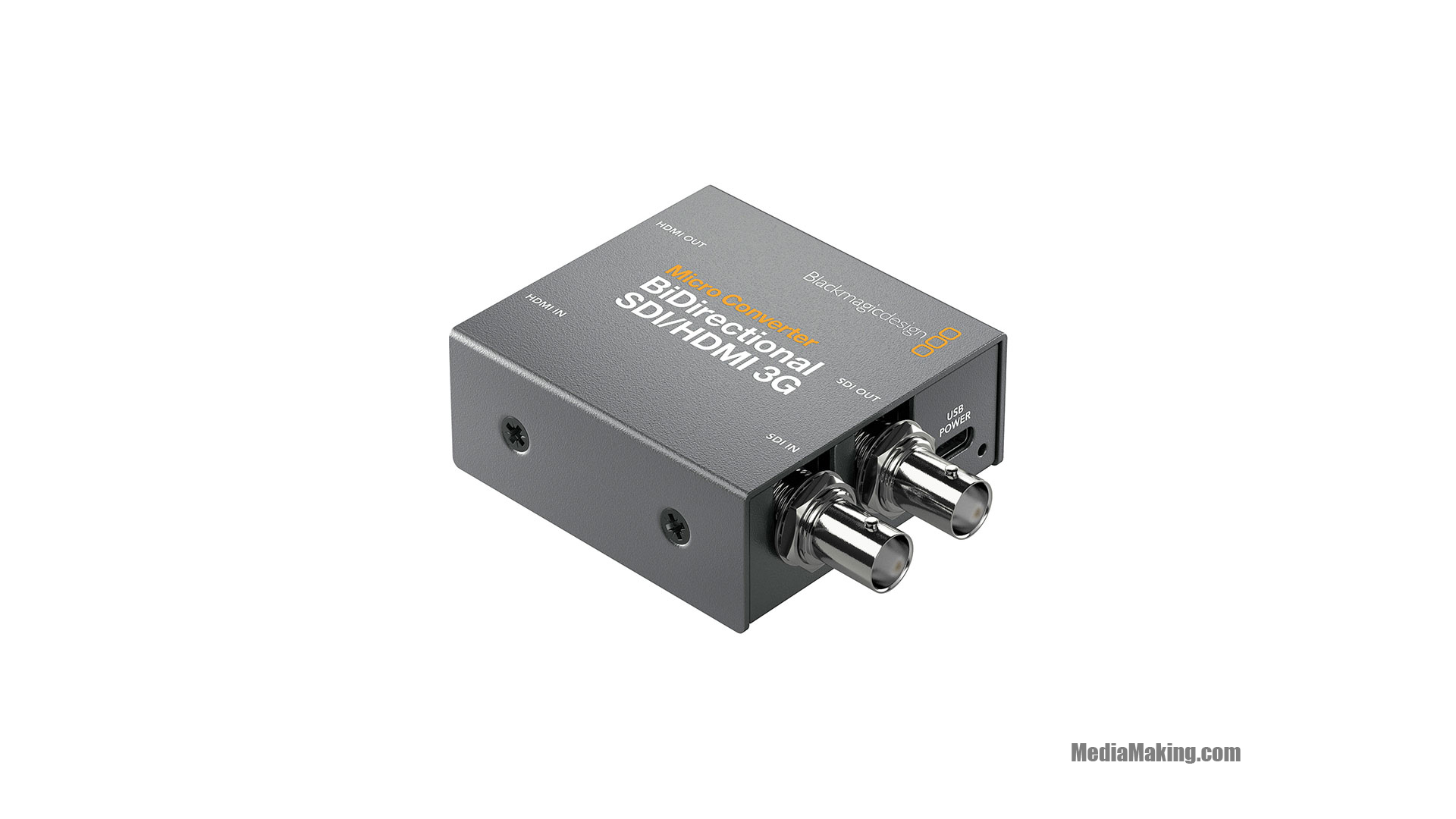

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
CONVBDCSDIHDMI03G_black-magic_Micro-Converter-BiDirectional-SDI-HDMI-3G
Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
Get the world’s smallest bidirectional broadcast quality converter! The Micro Converter BiDirectional SDI/HDMI 3G Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live noleggioion switchers!
Specifications
Video Input Connectors 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
Audio Input Connectors None
Embedded Audio Input HDMI
SDI
Video Output Connectors 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
Audio Output Connectors None
Embedded Audio Output HDMI
SDI
Dimensions 8 x 5,8 x 2,4 cm
