Weight | 4,5 Kg |
Dimensions | 48,2 x 16 x 28,8 cm |
Input | 40 x 12G-SDI |
Output | 40 x 12G-SDI |
Format | SD NTSC 525/29.97 and 525/23.98 PAL 625/25 HD 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25 /29.97/ 30 1080p 23.98/24/25 /29.97/ 30/50/59.94/60 2K 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
Consumption | 27 W |
Power | 2 x 90-240 V AC with IEC cable |
Blackmagic Videohub 40×40 12G
Blackmagic Videohub 40×40 12G

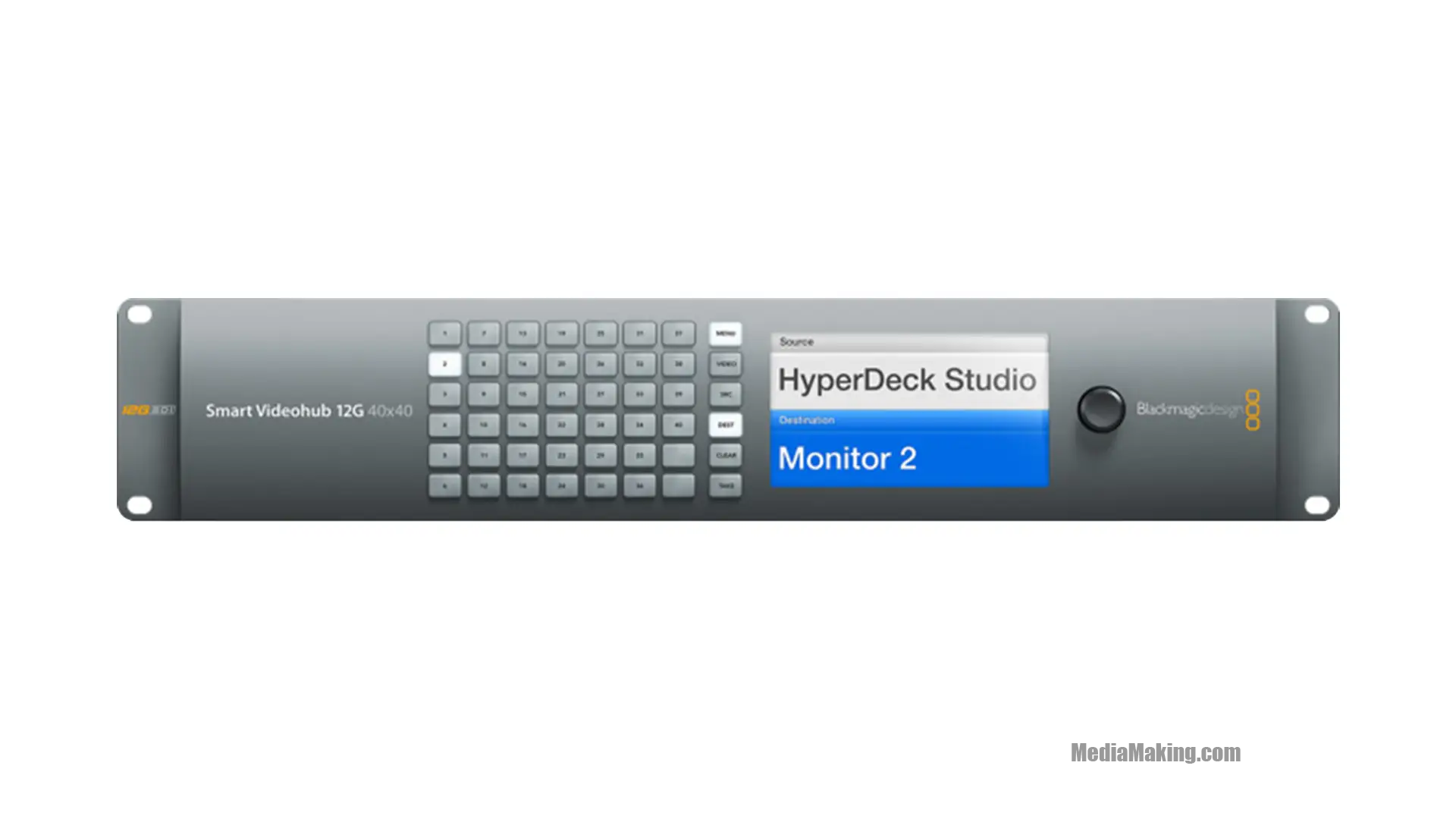

Blackmagic Videohub 40×40 12G is an advanced router with 12G-SDI technology that processes all SD, HD and Ultra HD SDI formats simultaneously. It offers 40 inputs and 40 outputs, and includes reference and redundant power connections. The elegant metal front panel houses a large Full HD LCD display to monitor the video and view its labels. Routing operations are conveniently managed using the buttons and the control knob. The 12G-SDI is compatible with all SDI video standards up to 2160p60.
Specifications
