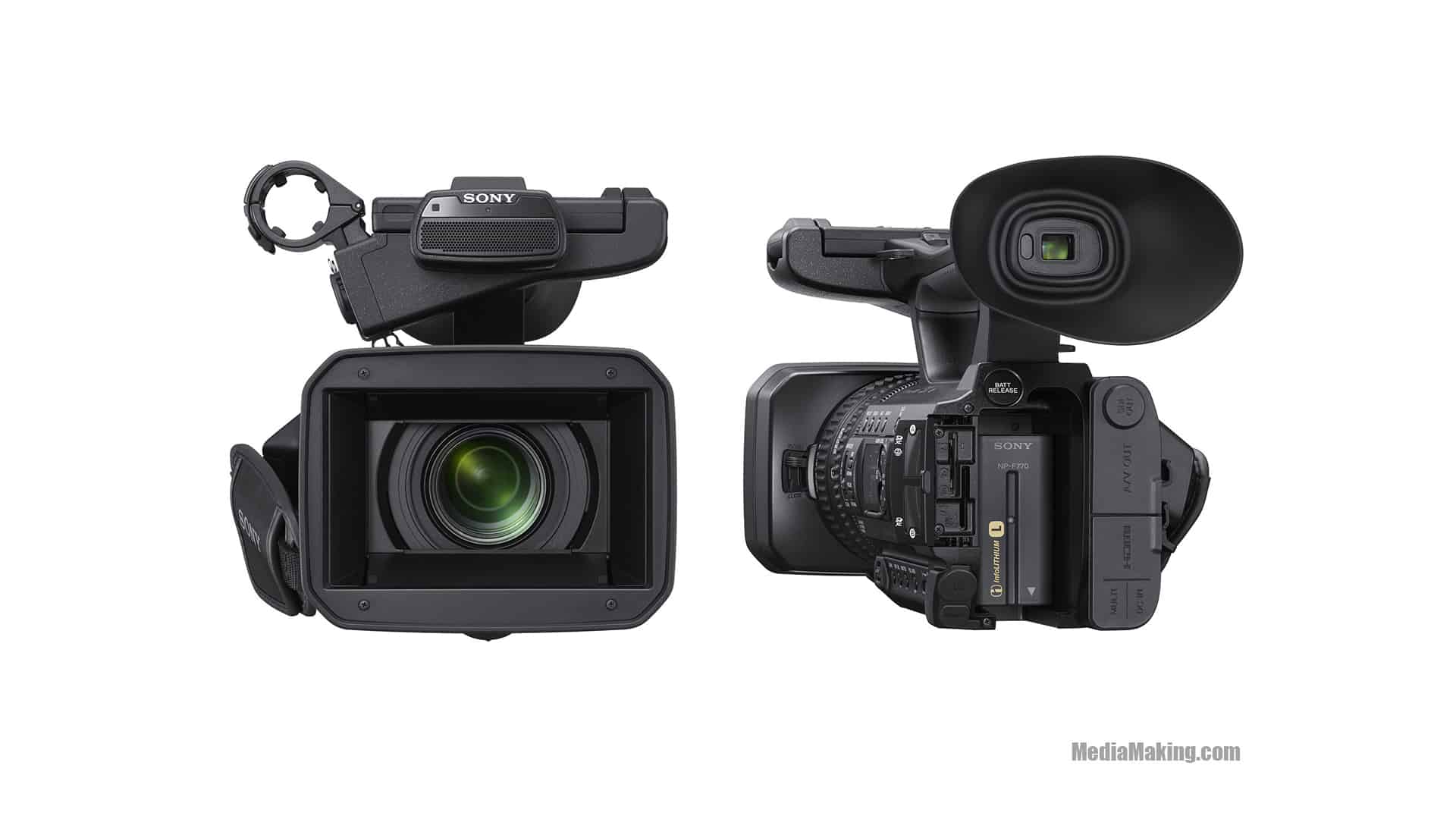

SONY PXW-Z150
Ready to resume any kind of scenario, the Sony PXW-Z150 professional portable camcorder offers stunning 4K image quality, Instant HDR workflow, Full HD HFR 120 fps slow motion and advanced integrated network settings for live streaming and wireless workflow.
General
| Weight | Approx 1895 g (body only) |
| Dimensions (L x A x P) | 171,3 ｘ 187,8 ｘ 371,3 mm (with accessories (lens cover, large eyepiece), strap excluded, protruding parts included) |
| Power supply | DC input: 8.4 V, battery: 7.2 V |
| Consumption | Approx. 6.3 W (when recording with the viewfinder and in XAVC HD 1080 / 60i format at 50 Mbps) |
| Operating temperature | From 0° C to +40° C |
| Storage temperature | From -20 to +60° C |
| Battery operating time | About 260 min. with NP-F770 battery (when recording with LCD and in XAVC S HD 1080 / 60i format at 50 Mbps) About 400 min. with NP-F970 battery (when recording with LCD and in XAVC S HD 1080 / 60i format at 50 Mbps) |
| Recording format (Video) | XAVC QFHD: MPEG-4 AVC / H.264 4: 2: 0 Long profile XAVC HD: MPEG-4 AVC / H.264 4: 2: 2 Long profile XAVC Proxy: MPEG-4 AVC / H.264 4: 2: 0 Long profile MPEG HD422: MPEG-2 422P @ HL 4: 2: 2 Long profile MPEG HD420: MPEG-2 MP @ HL 4: 2: 0 Long profile MPEG HD Proxy: MPEG-4 AVC / H.264 4: 2: 0 Long profile AVCHD: Compatible with MPEG-4 AVC / H.264 AVCHD 2.0 format |
| Recording format (Audio) | XAVC QFHD: 2-channel linear PCM, 24-bit, 48 kHz XAVC HD: 2-channel linear PCM, 24-bit, 48 kHz XAVC Proxy: 2-channel, 16-bit, 48 kHz AAC-LC MPEG HD422: 2-channel linear PCM, 24 bit, 48 kHz MPEG HD420: 2-channel linear PCM, 16-bit, 48 kHz MPEG HD Proxy: 2-channel, 16-bit, 48 kHz AAC-LC AVCHD: 2-channel linear PCM, 16-bit, 48kHz; Dolby Digital 2-channel, 16-bit, 48 kHz |
| Recording frame rate | XAVC QFHD (3840 x 2160) at 29.97p, 25p, 23.98p, 100 Mbps / 60 Mbps XAVC HD (1920 x 1080) at 59.94p, 50p, 50 Mbps / 35 Mbps XAVC HD (1920 x 1080) at 59.94i, 50i, 50 Mbps / 35 Mbps / 25 Mbps XAVC HD (1920 x 1080) at 29.97p, 25p, 23.98p, 50 Mbps / 35 Mbps XAVC HD (1280 x 720) at 59.94p, 50p, 50 Mbps XAVC Proxy (1280 x 720) at 59.94p, 50p, 29.97p, 25p, 23.98p, 9 Mbps XAVC Proxy (640 x 360) at 59.94p, 50p, 29.97p, 25p, 23.98p, 3 Mbps MPEG HD422 (1920 x 1080) at 59.94i, 50i, 29.97p, 25p, 23.98p, 50 Mbps MPEG HD422 (1280 x 720) at 59.94p, 50p, 50 Mbps MPEG HD420 (1920 x 1080) at 59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode (35 Mbps) MPEG HD420 (1440 x 1080) at 59.94i, 50i, HQ mode (35 Mbps) |
| Recording / playback duration | XAVC-L QFHD 100 mode, about 65 min. with 64 GB memory card XAVC-L QFHD 60 mode, about 100 min. with 64 GB memory card XAVC-L mode HD 50, about 120 min. with 64 GB memory card XAVC-L mode HD 35, about 170 min. with 64 GB memory card XAVC-L HD 25 mode, about 220 min. with 64 GB memory card MPEG HD422 2-channel LPCM 50 Mbps, about 110 min. with 64 GB memory card |
Camera section
| Sensor | Exmor RS type 1 CMOS sensor (13.2 mm – 8.8 mm) backlit |
| Actual elements of the image | 3840 (O) x 2160(V) |
| Built-in optical filters | ND filters OFF: TRANSPARENT 1 1/4 ND 2 1/16 ND 3: 1/64 ND |
| Minimum illumination | 1,7 lux (low Lux) |
| Shutter speed | [60i]: 1/8 – 1 / 10,000 (1/6 – 1 / 10,000 when shooting at 24p) [50i]: 1/6 – 1 / 10,000 |
| Gain | -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC |
| White balance | Preset (for interiors: 3.200K, for exteriors: 5600K ± 7 intervals, color temperature range: 2.300-15.000K), Onepush A, B, Auto selectable |
| “Slow Motion” and “Quick Motion” function | [60i]: XAVC HD: Selectable frame rate from 120 fps [50i]: XAVC HD: Selectable frame rate from 100 fps |
| Built-in microphone | Omnidirectional stereo electret condenser microphone |
Input/Output
| SDI Output | BNC (x1), standard 3G / HD / SD SMPTE ST 424 / ST 292-1 / ST 259 |
| HDMI Output | HDMI connector (type A) |
| Speaker output | Mono |
| Headphone output | Mini jack stereo (x1) |
| DC input | Jack DC |
| XLR audio input | XLR 3 pin (female) (x 2), selectable line / mic / mic +48V |
| Remote | Mini jack stereo (ø 2,5 mm) |
| USB | Jack USB Multi/Micro (x1) |
