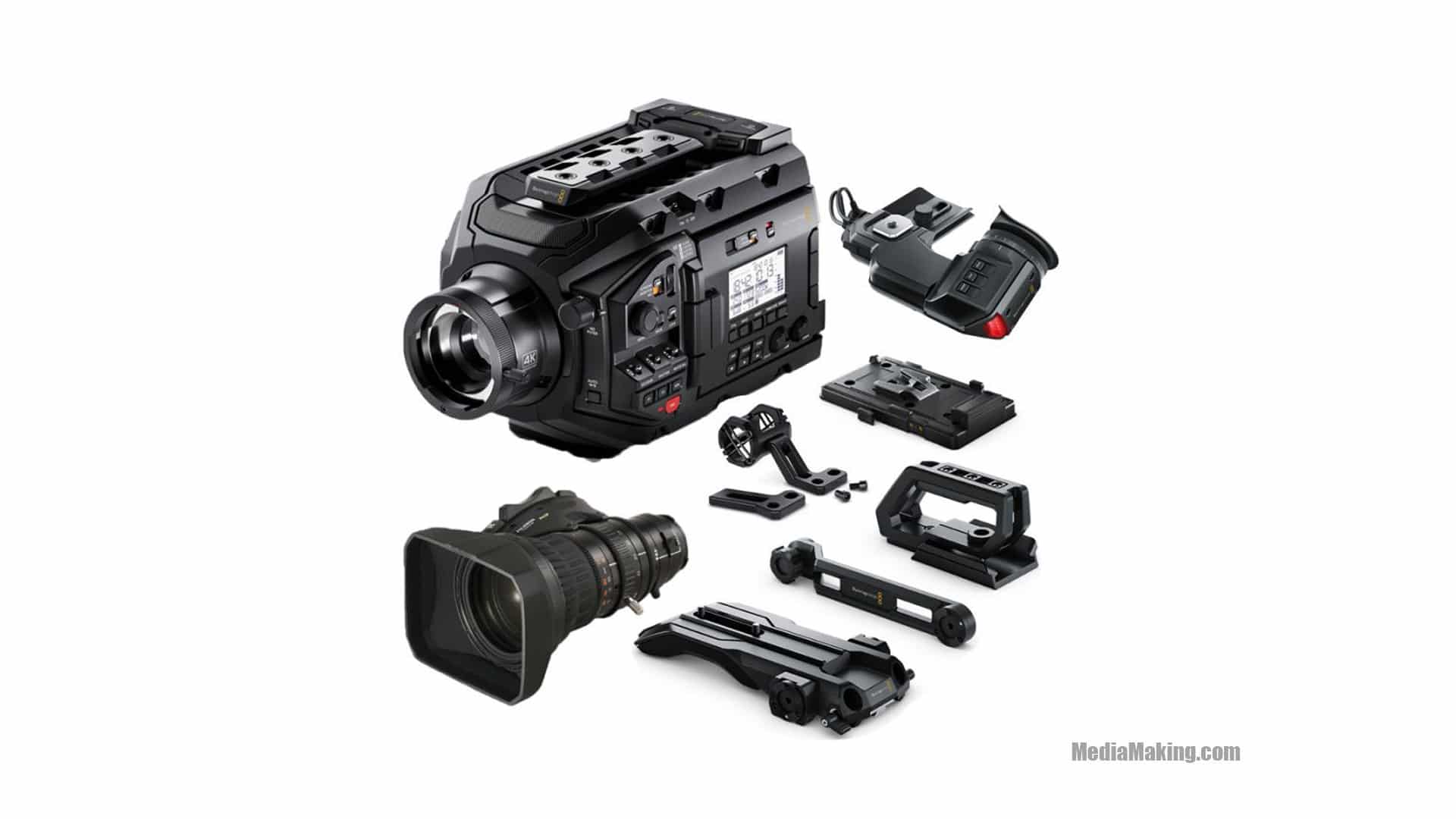

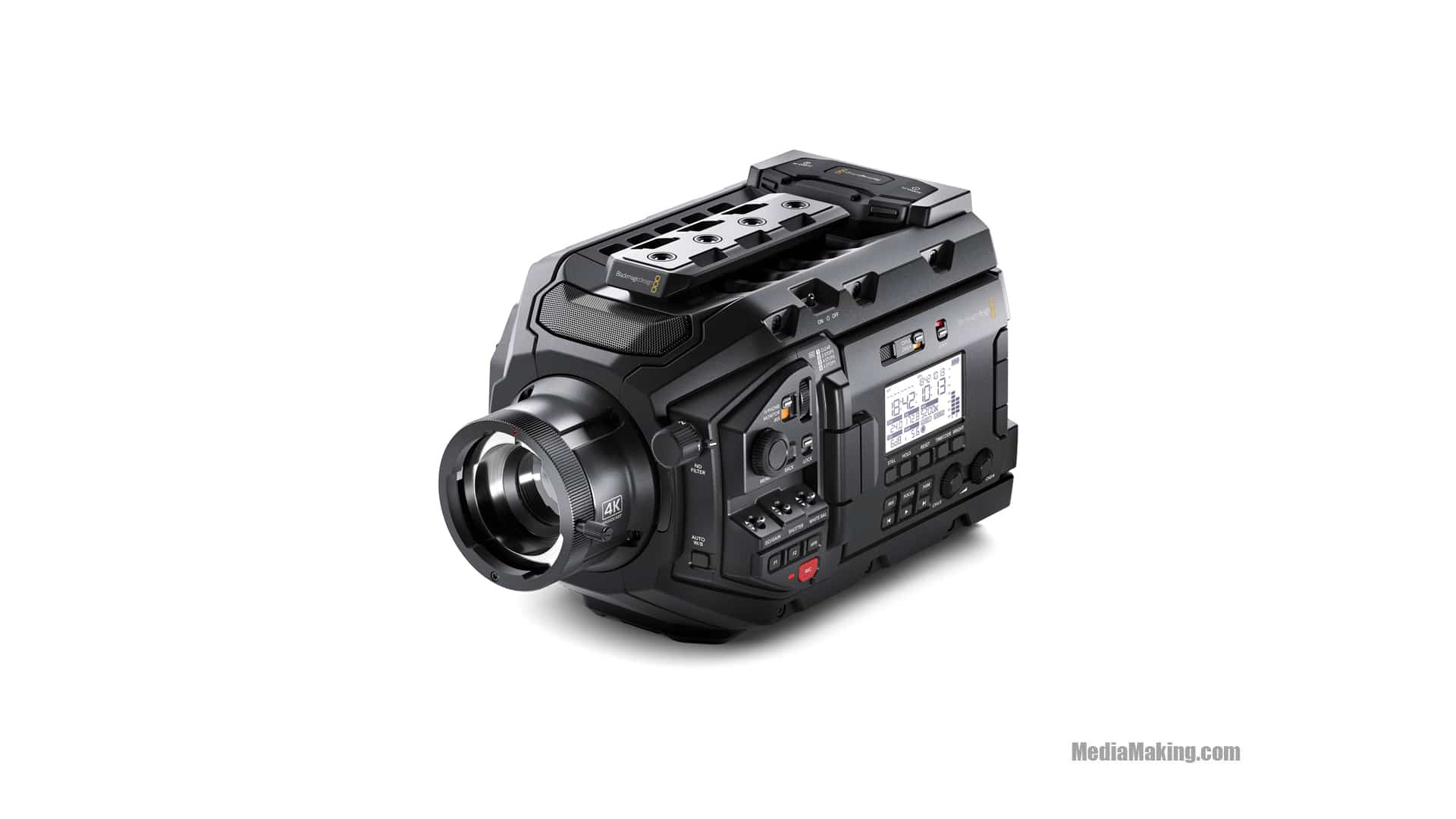

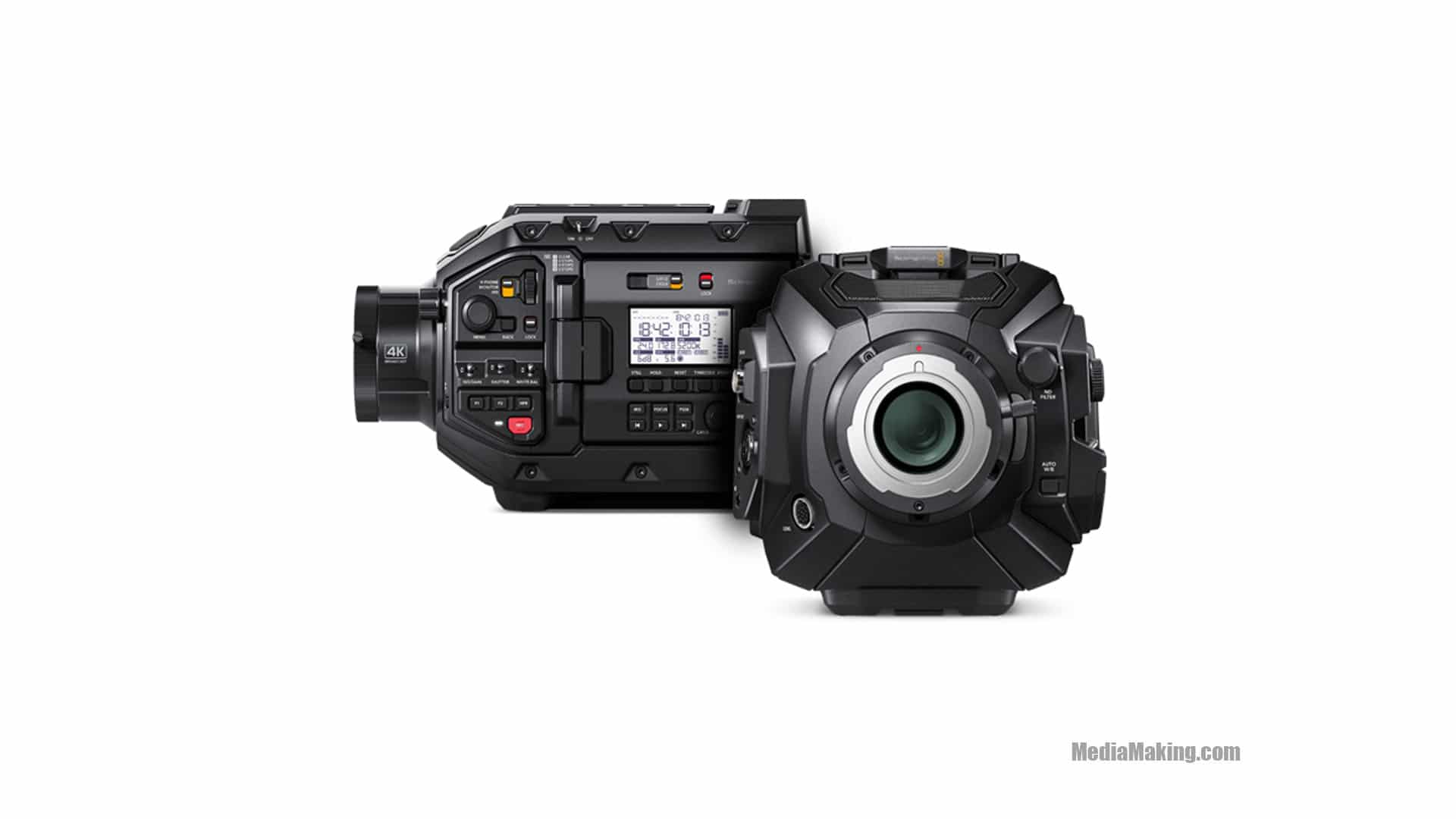

Blackmagic URSA Broadcast
URSA Broadcast is two rooms in one. It is ideal both for outdoor shooting in reportage style and for broadcasts from the studio. Broadcast professionals can use their existing optics and batteries, and leave behind the formats and proprietary cards of traditional cameras. URSA Broadcast records on common SD cards in standard formats compatible with television broadcasting systems and non-linear editing software.
Specifications

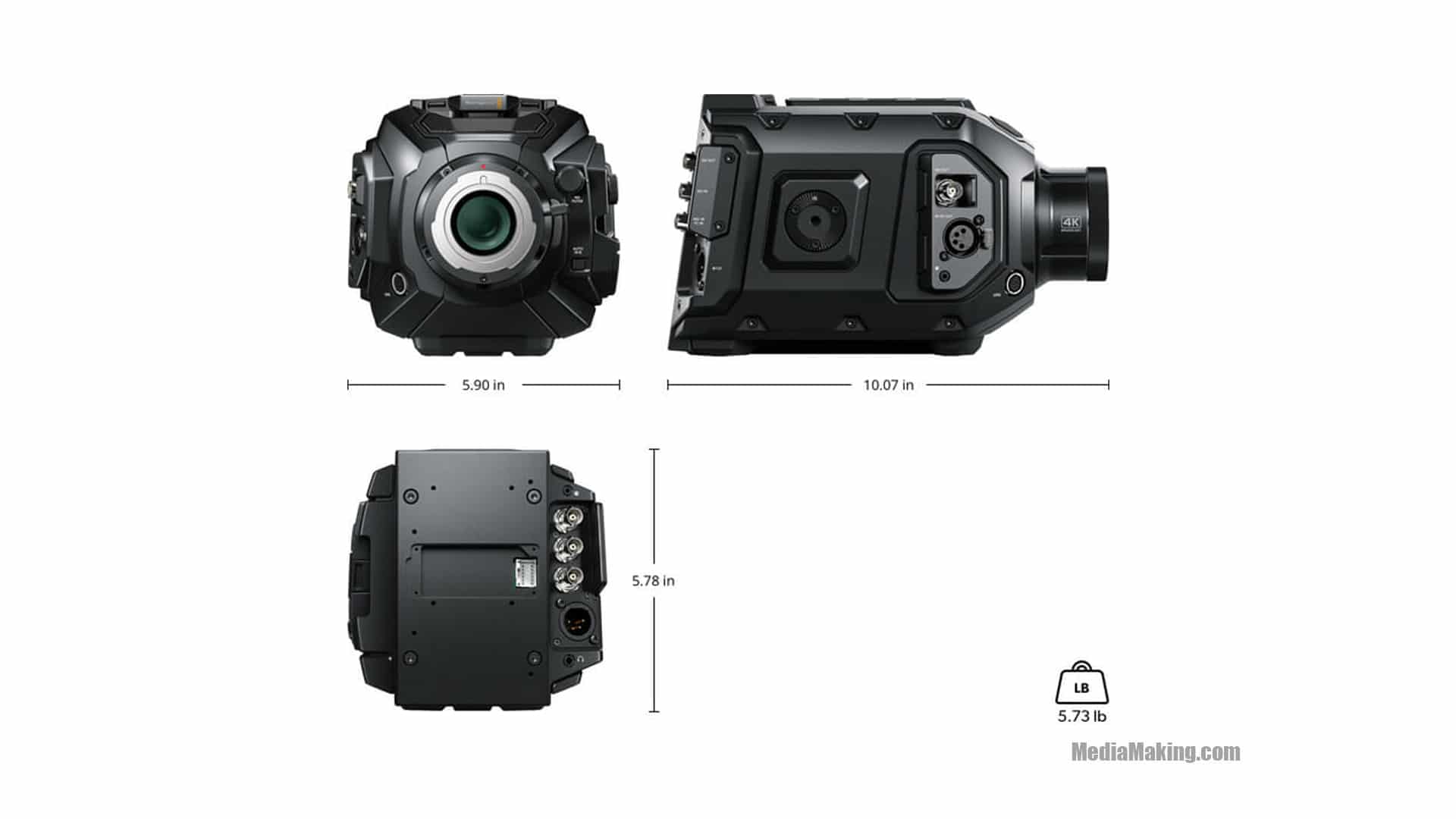

| Dimensions | 149,85 x 146,89 x 255,96 mm (LxAxP) |
| Weight | 2,6 kg |
| Sensor size | 2/3 inch sensor when using a 4K B4 socket (effective size: 13.056 mm x 7.344 mm) |
| Shooting resolutions | 3840 x 2160, 1920 x 1080 |
| Frame rate | Compatible project frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps. Variable frame rate (off-speed) up to 60p |
| Display size | 4″ with capacitive touch LCD |
| Video inputs | 1 x SDI |
| Analog audio input | 2 x XLR switchable between mic / line and AES levels. Support phantom power |
| Analog audio output | 1 x 3.5mm headphone jack compatible with iPhone talkback microphone |
| Computer interface | USB C port for software update |
