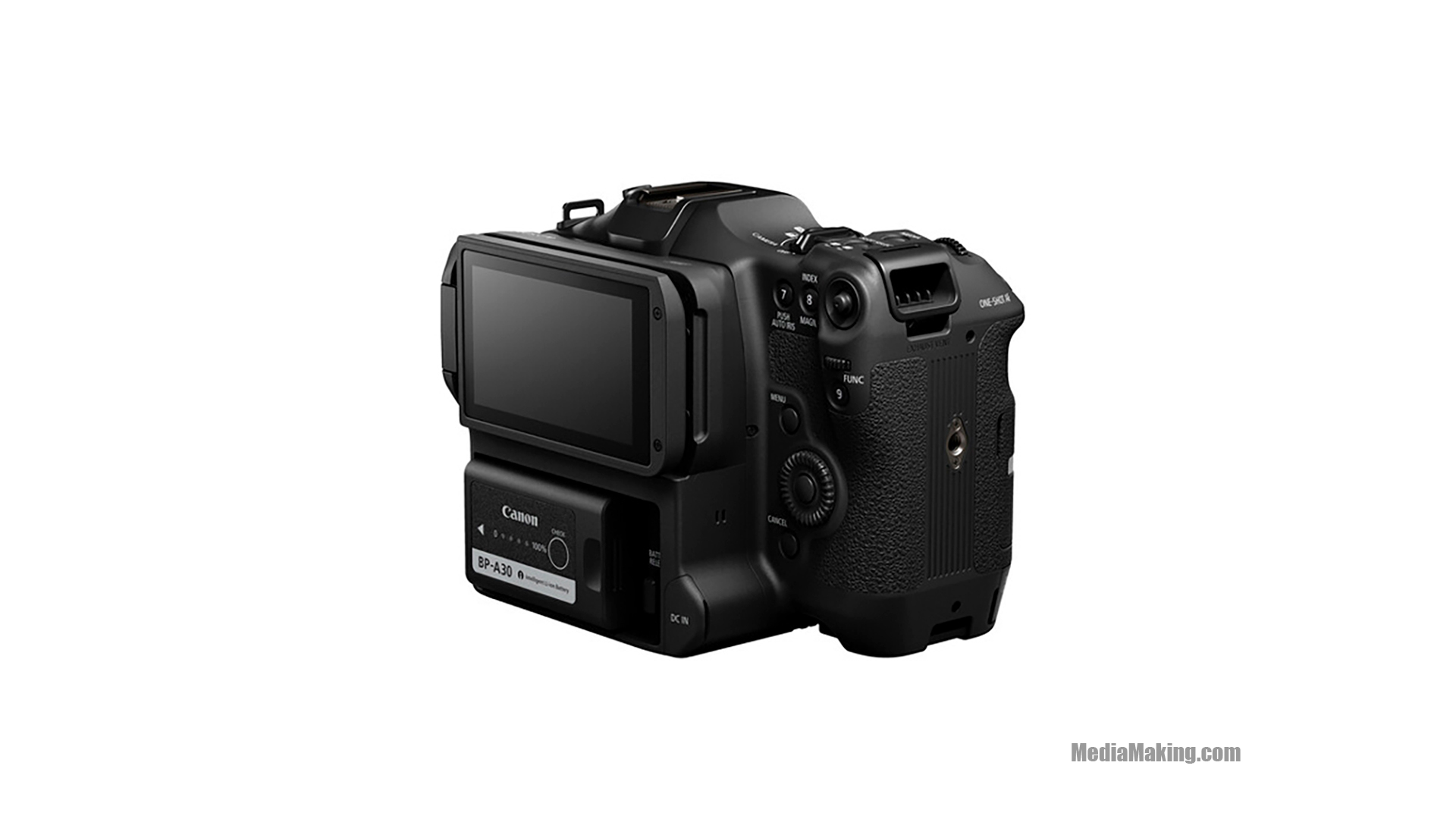

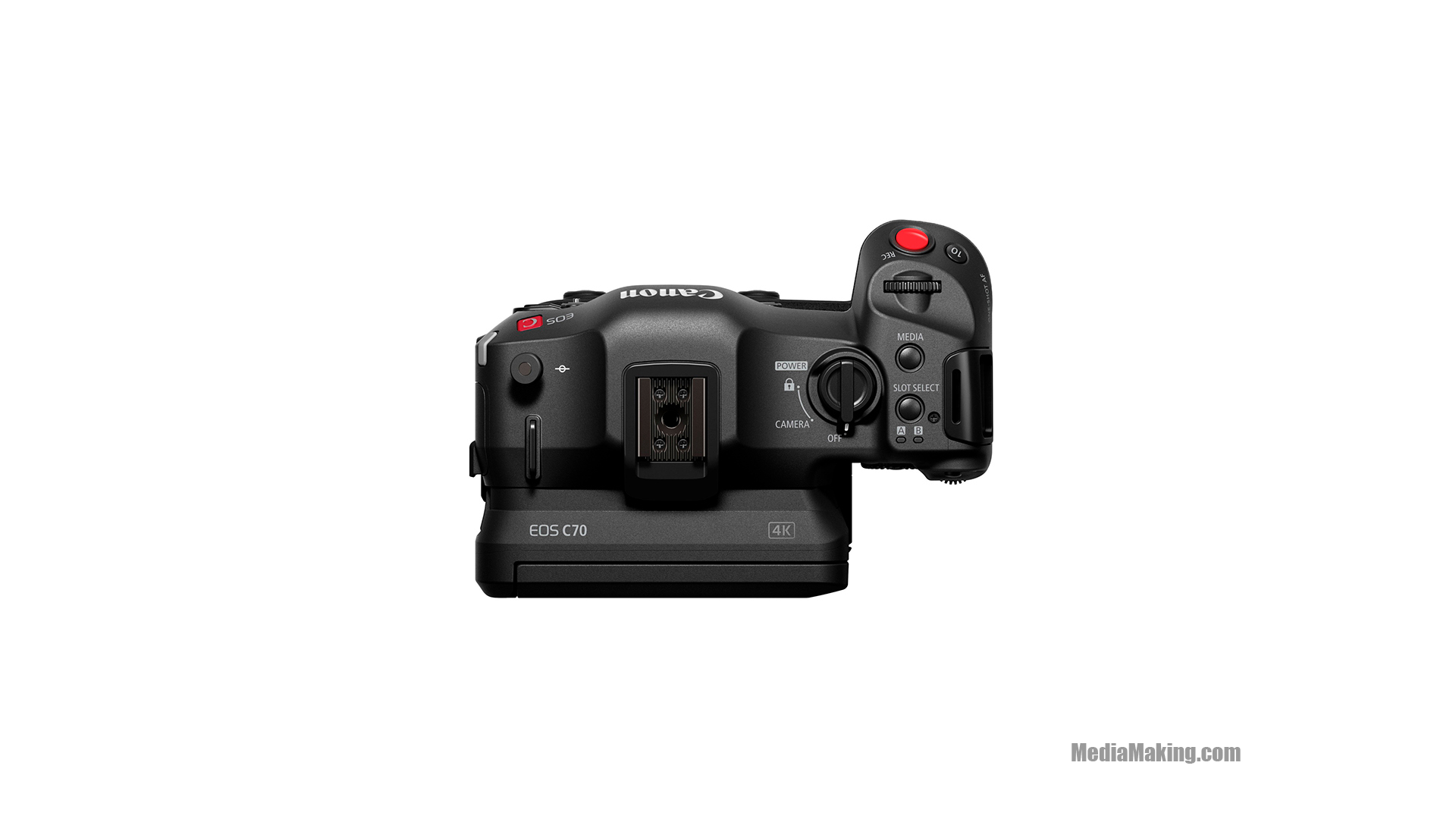

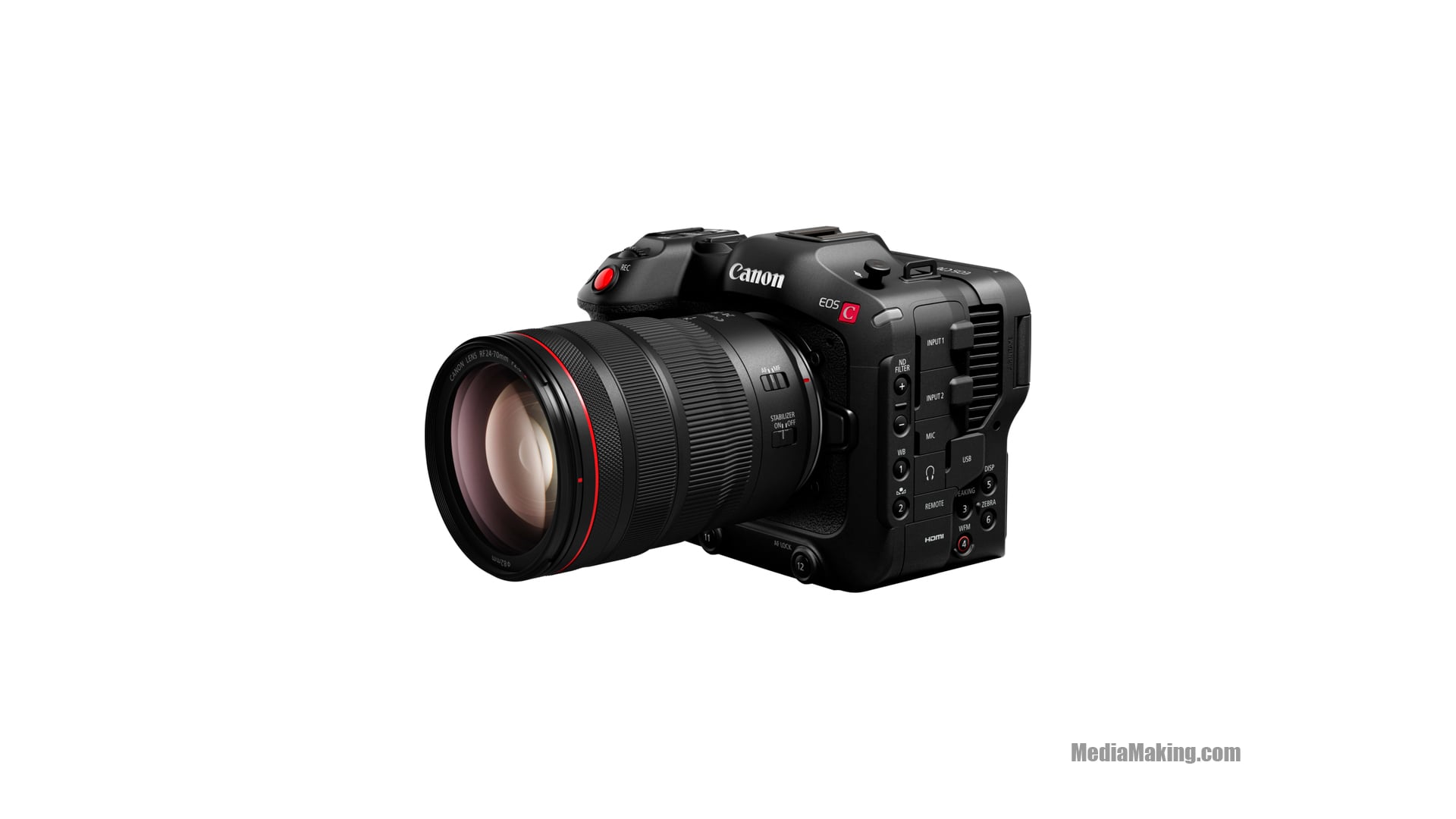

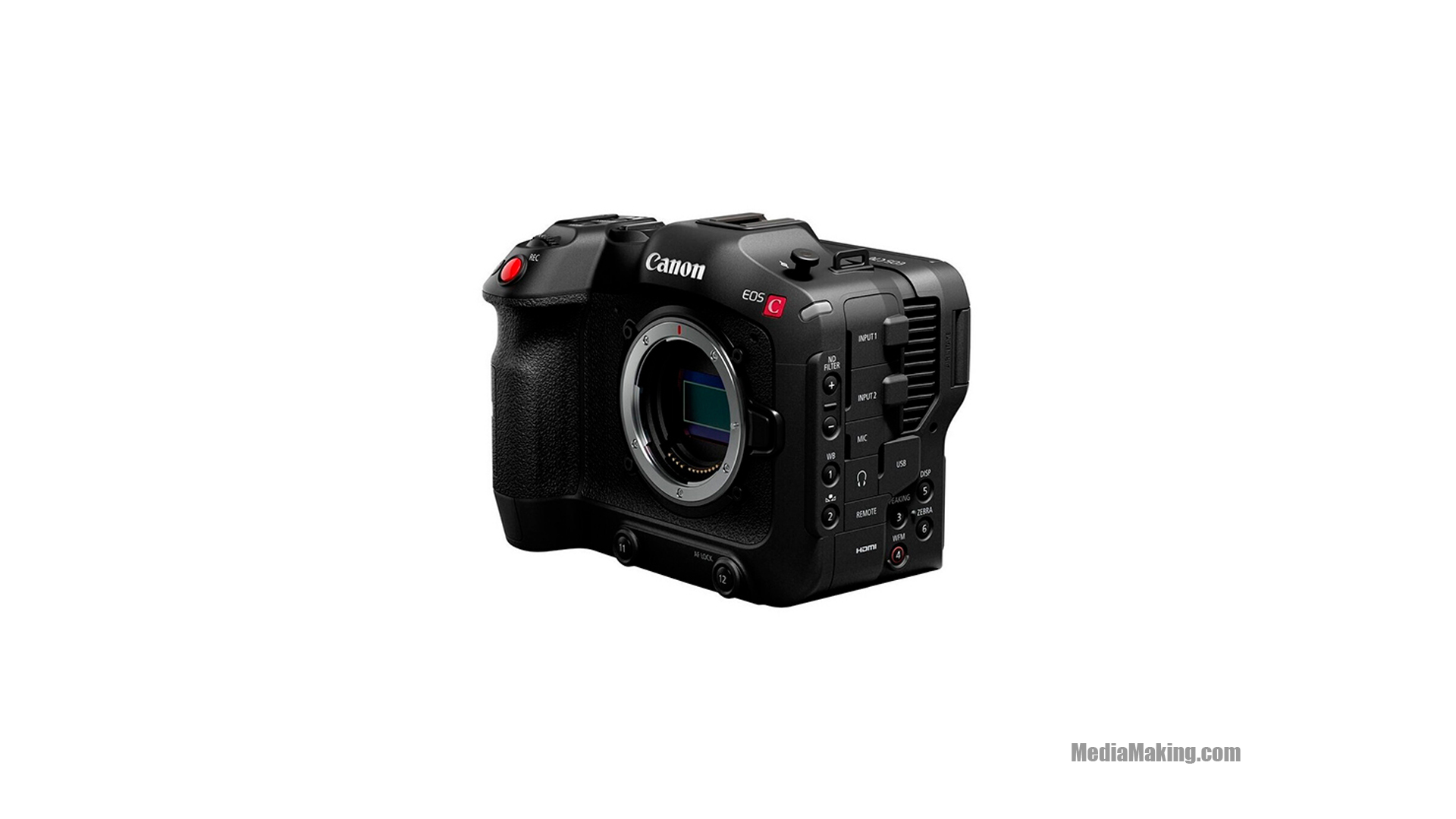

The Canon EOS C70 camera is a new generation EOS Cinema camera with RF mount equipped with the Canon DGO Super 35mm 4K sensor. Featuring 4K 120p Slow Motion mode, HDR and Dual Pixel CMOS AF technologies and a compact body, this camera takes the RF system into a new era.
Equipped with the new Super 35mm 4K sensor and DIGIC DV7 image processor, the EOS C70 delivers high-resolution images with a dynamic range of over 16 stops.
Thanks to the large diameter, the reduced draft and the 12-pin connection, the RF mount guarantees a balance between optical and electronic innovation, as well as the possibility to take advantage of the extraordinary AF speed of the lenses in the Canon RF range.
Dual UHS-II SD card slot allows simultaneous or relay recording in multiple formats. The XF-AVC format supports ALL-I and Long-GOP, while MP4 recording allows for greater flexibility.
| Power supply | BP-A30 (included), BP-A60 (optional) |
| Dimensions (L x A x P) | 160 x 130 x 116 mm (body only) |
| Weight | 1,1 kg |
| Megapixel | Approx 9,6 |
| Recording Format | Long GOP |
| Lens mount | Canon EF mount. Compatible lenses: all EF and RF lenses (including EF-S / EF cinema lenses) |
| Focus | All Canon RF, Canon EF, Canon Cine Servo compatible lenses (EF mount with EF-RF adapter) |
| Image type sensor | CMOS Super 35 mm |
| ND filter | 2, 4 or 6 stops. Up to 10 stops via the built-in ND filter system (in extended mode) |
| “Slow Motion” and “Fast Motion” Function | 4K recording: up to 120 FPS 2K recording (crop): up to 180 FPS Possibility of audio recording with normal frame rate |
| White balance | AWB, USER 01 setting (setting range: 2000K to 15000K / -20CC to +20 CC), daylight, tungsten, settings (A/B) |
| Gain | [-6 dB,-3 dB], -2 dB(*), 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB, 33 dB, 36 dB, 39 dB, 42 dB, [45 dB, 48 dB, 51 dB, 54 dB] |
| Audio input | 3-pin XLR mini-connector x2, 3.5mm stereo mini-jack (input only) Stereo microphones built into the camera body) |
| HDMI output | HDMI connector (type A) (output only, Camera Body) |
| Timecode output | BNC/HDMI |
| Headphone output | 3.5 mm stereo mini jack (output only, Camera Body) |
