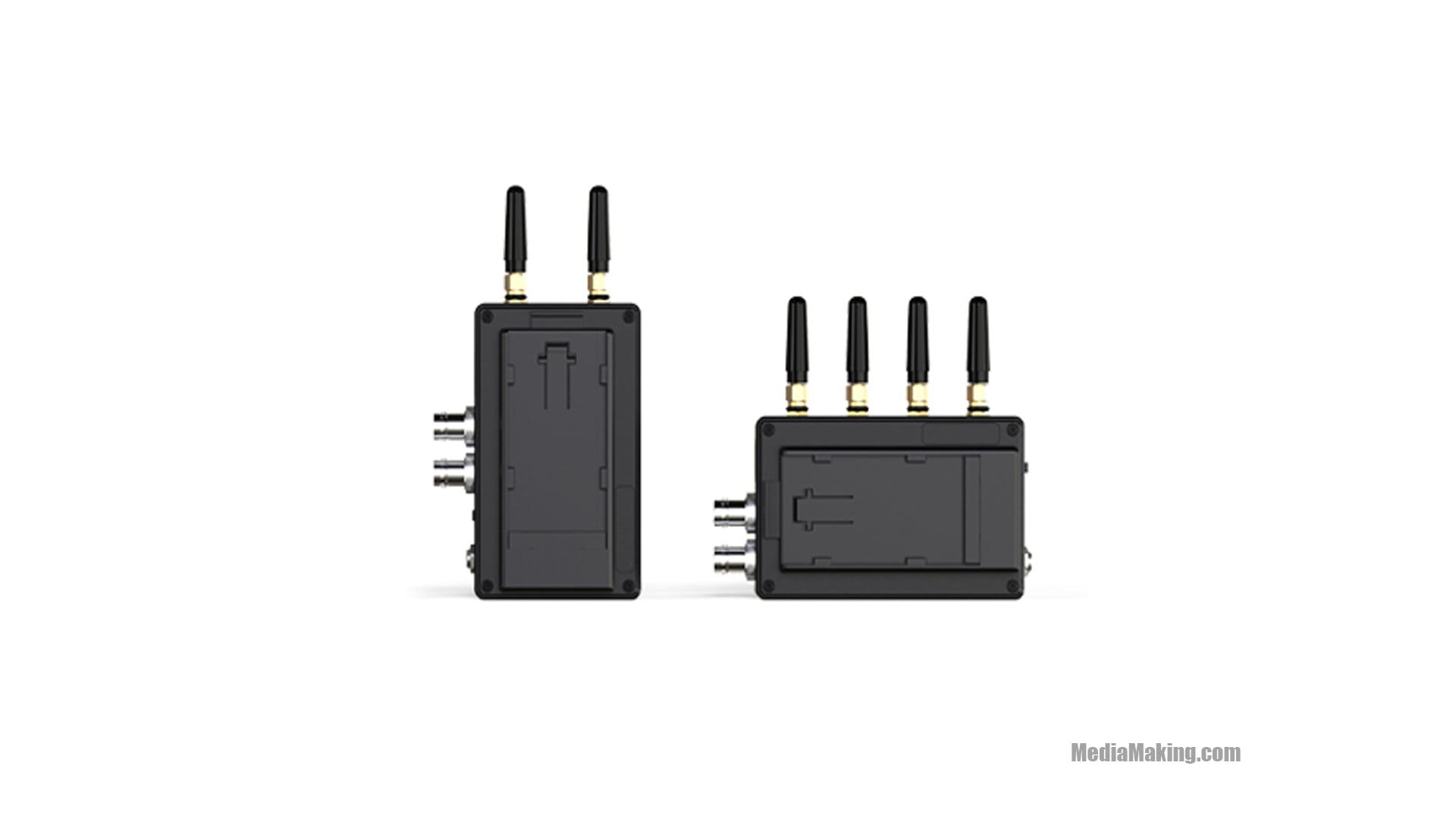

The SWIT FLOW radio link has reliable wireless transmission, with higher wall-cross performance thanks to RF optimization and the optimization of image quality. In this way, Swit has found a way to maintain a fantastic video transmission without data loss or crash compared to normal 5GHz wireless transmitters.
Works under 5.1-5.9GHz, with integrated wireless scanner. Detect the wireless conditions of all frequencies, automatically jump to the best wireless channel to maintain a reliable connection and transmission.
You can also manually switch wireless channels from 7 unrestricted channels.
Both Tx and Rx are equipped with OLED to display the signal format, the wireless channel number and the signal strength.
To ensure the quality of the black level, the signal noise and the color reproduction of the received wireless signal, the FLOW wireless receiving series supports signal re-clocking and accurate color reproduction.
Weight ( (Transmitter – Receiver) | 236 g / 245 g |
Dimensions (Transmitter – Receiver) | 6.6 x 10.6 x 2.47 cm / 10.6 x 6.6 x 2.4 cm |
Input (Transmitter) | 3G/ HD-SDI x 1 HDMI x 1 |
Output (Transmitter) | 3G/HD-SDI loop x 1 |
Output (Receiver) | 3G/HD-SDI loop x 1 |
Format (Transmitter – Receiver) | 1080P (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) |
Wireless frequency | 5.17GHz-5.23GHz e 5.75GHz-5.83GHz |
Radio modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
Transmission distance | 150 metri |
Power consumption | ≤8W |
Radio power | 125mW |
Input voltage | DC 7~34V |
