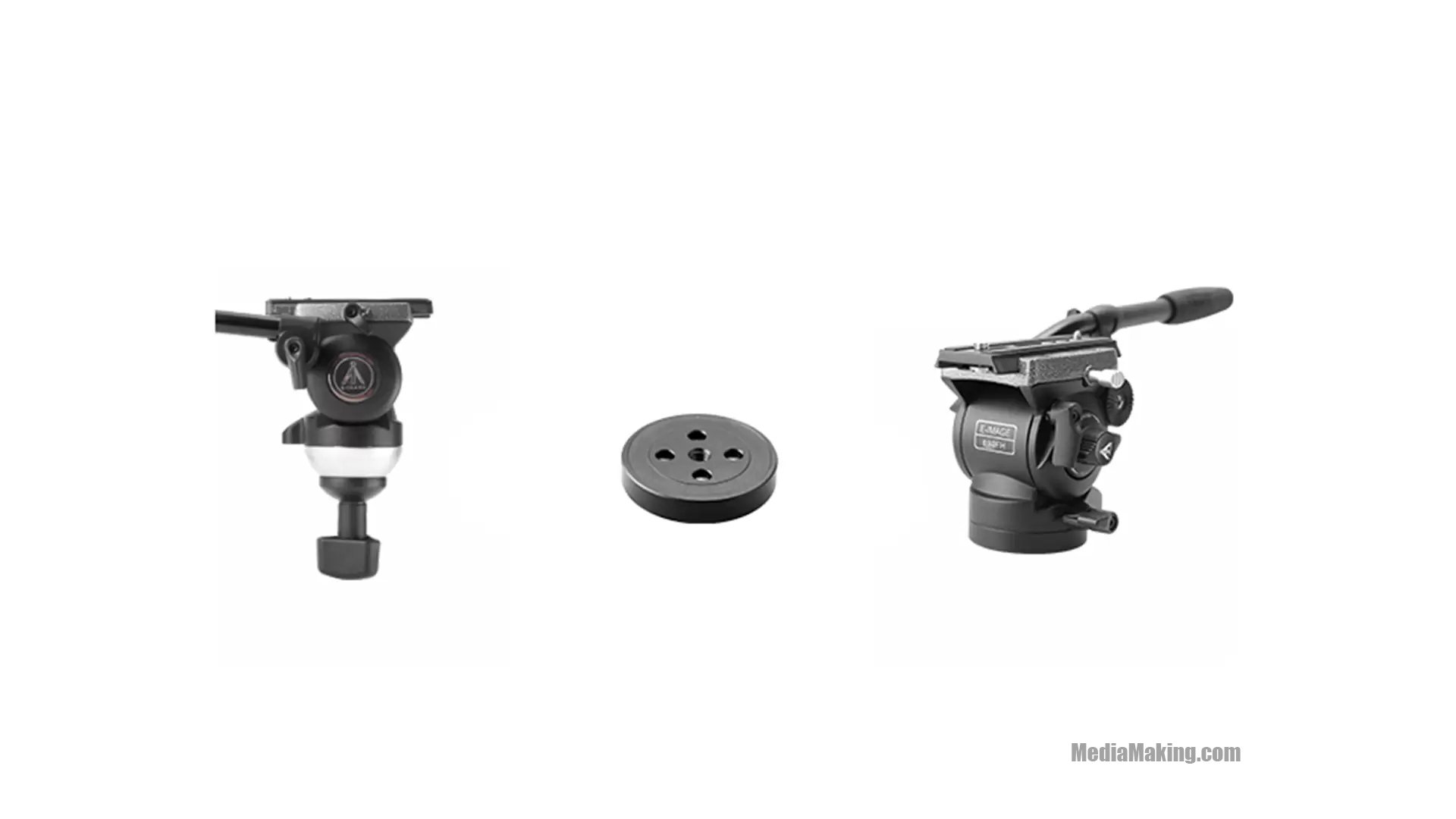

Fluid head EH630 with a bowl 75mm for dollies, slider and tripods with a payload up to 5 kg
The fluid video head EH630 supports cameras and accessories up to 5 kg. Equipped with a standard 75mm bowl, the video head is designed for use with tripods, sliders, dollies and other equipment. A fixed counterbalance and various adjustable degrees of resistance ensure rapid camera balance. Using a side knob, you can adjust the tilt axis according to your style or shooting needs. The head features an innovative “Snap-in” system that allows the operator to attach the plate to the head not only from the front and rear but also from the top of the head. It also features an integrated bubble level and a GB2 telescopic handle that can be extended up to 59,5 cm for more precise camera movements, which can be attached to the rosette adapters on the left or right side of the video head.
Specifications
| Weight | 1,3 kg |
| Payload | 5,0 kg |
| Counterbalance | Fixed |
| Grades of Tilt drag | Variable |
| Grades of Pan drag | Fixed |
| Tilt range | -50° – +90° |
| Camera plate | Sliding plate |
| Slide length | 83 mm |
| Bowl size | 75 mm (optional flat base adapter) |
| Temperature range | -40° – +80° |
| Color | Black |
