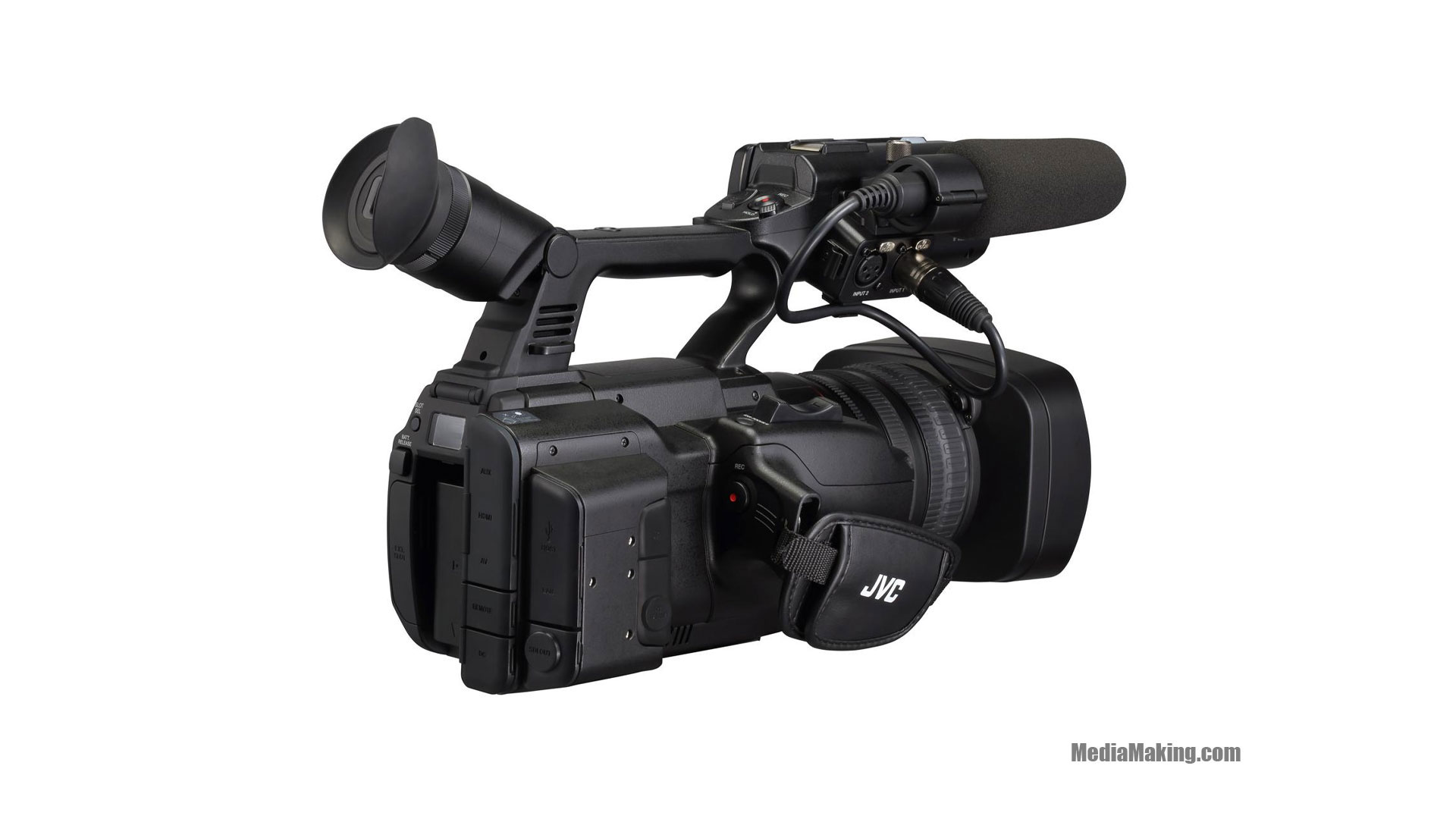

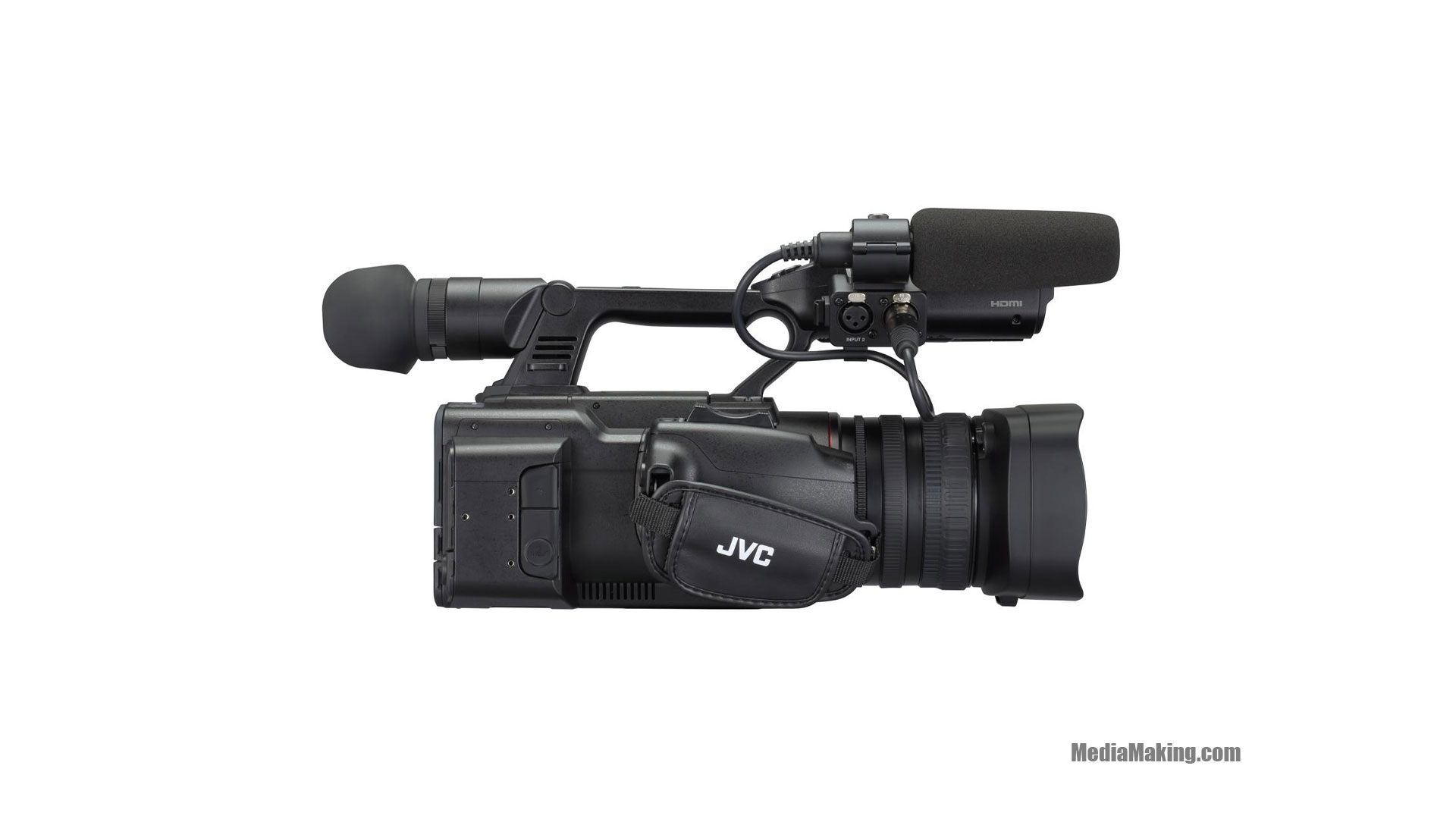

JVC GY-HC500E camera
The 4K camera JVC GY-HC500E for ENG and video productions is a 4K UHD camcorder capable of shooting both NTSC and PAL compatible frame rates and is designed to work seamlessly with traditional and IP workflows. sensor and a built-in 20x optical zoom lens, while the camera can create a 40x digital zoom.
The camera can capture in UHD, HD, SD and you can record SD as a proxy, recording up to 30p on the built-in media card slots or 60/50p on an optional SSD. The camera supports HDR by recording in HLG or JLog1 (10-bit).
Specifications
| Weight | 3,1 kg |
| Dimensions | 19,5 x 23 x 44,5 cm |
| Lens type | Integrated |
| Optical zoom | 20x |
| Focal length | 9,4 – 188,6 mm |
| Sensor type | CMOS 1″ |
| Resolution | 12,4 Megapixel |
| IP streaming bitrates | 1920 x 1080 at 59.94p/50p (20 – 8Mbps), 29.97p/25p (20 – 3Mbps) 1920 x 1080 at 59.94i/50i (20 – 3Mbps) 1280 x 720 at 59.94p/50p (20 – 3Mbps) 1280 x 720 at 29.97p/25p (8 – 1.5Mbps) 640 x 360 at 59.94p/50p (3/1.5Mbps) 640 x 360 at 29.97p/25p (3 – 0.3Mbps) |
| Video recording | 3840 x 2160p, 1920 x 1080p, 1440 x 1080i, 1280 x 720p, 720 x 576i, 960 x 540p e 480 x 270p |
| Video output | 3GSDI, HDMI e IP (H.265/H.264) |
| Power supply | 1 x external power supply 12V |
