Dimensions | 66,0 x 58,4 x 16,5 cm |
Weight | 13,6 kg |
Channels | 32 |

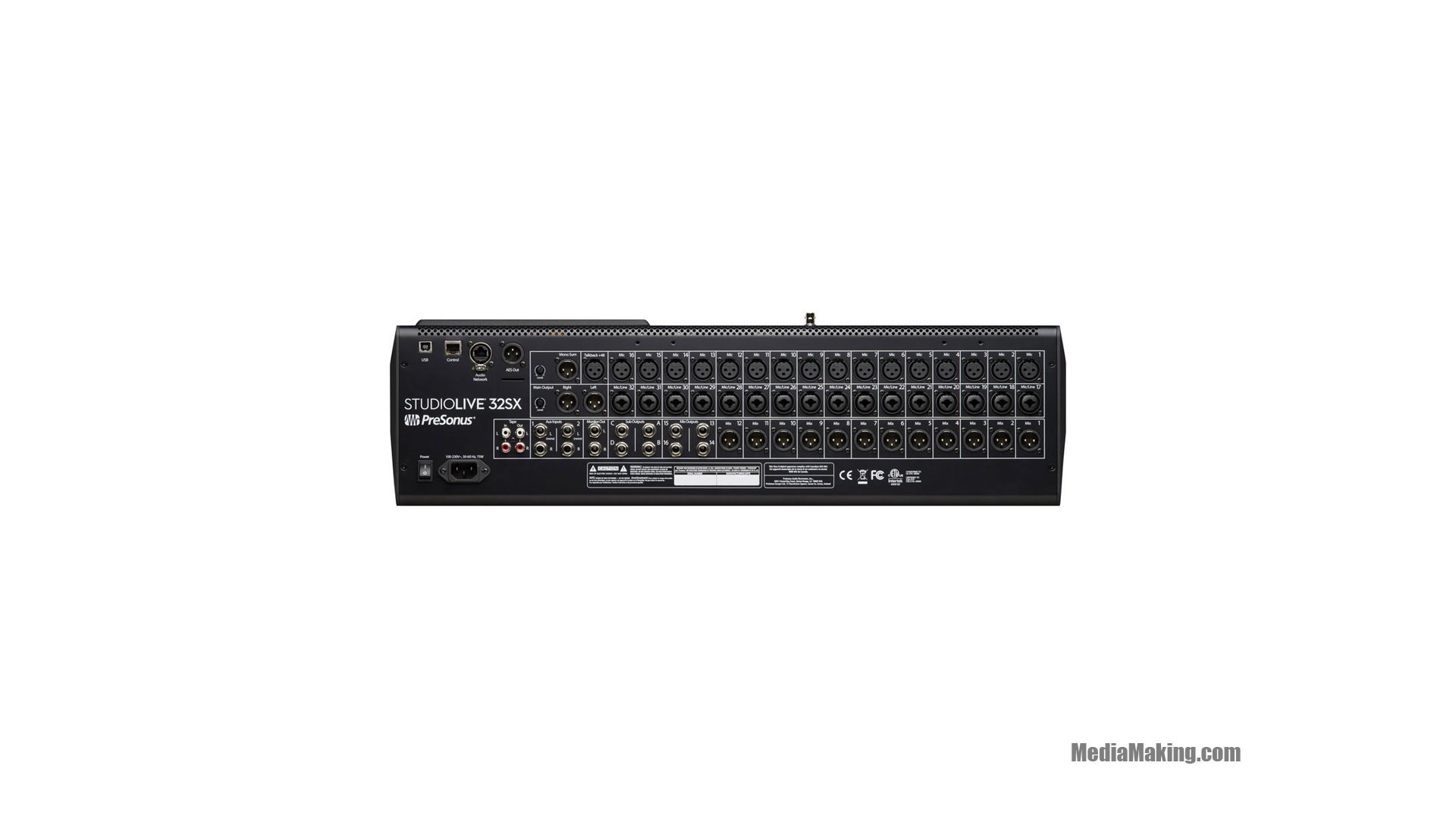

Audio input | 1 x XLR Talkback Input 16 x XLR 3-Pin Mic Input 16 x Combo XLR-1/4″ TRS Mic/Line Input 4 x 1/4″ TRS Aux Return (2 Stereo Pairs) 1 x Stereo RCA Tape Input (1 Stereo Pair) 1 x RJ45 (Control, 1 Gb/s) 1 x RJ45 AVB (I/O) 1 x XLR AES3 Output |
Audio output | 1 x 2RCA Tape Output (1 Stereo Pair) 12 x XLR 3-Pin Aux/Matrix/Subgroup Output 4 x 1/4″ TRS Aux/Matrix/Subgroup Output 2 x XLR 3-Pin Main Output 1 x XLR 3-Pin Mono Sum Output 2 x 1/4″ TRS Monitor Output 1 x 1/4″ TRS Headphone Output 4 x 1/4″ TRS Subgroup Output 1 x RJ45 (Control, 1 Gb/s) 1 x RJ45 AVB (I/O) 1 x XLR AES3 Output |
Mixer and recorder PreSonus StudioLive 32SX
Mixer and recorder PreSonus StudioLive 32SX

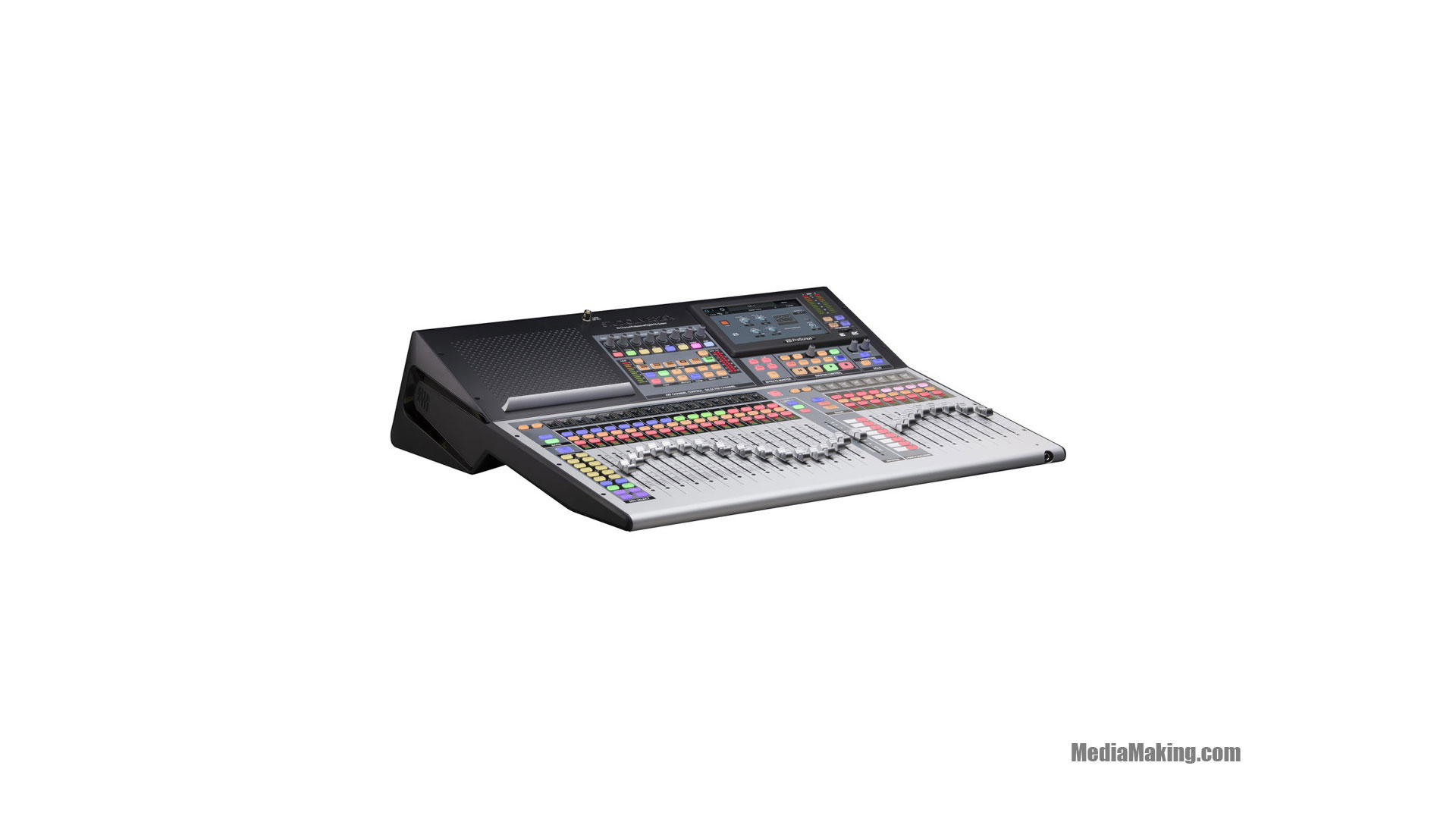

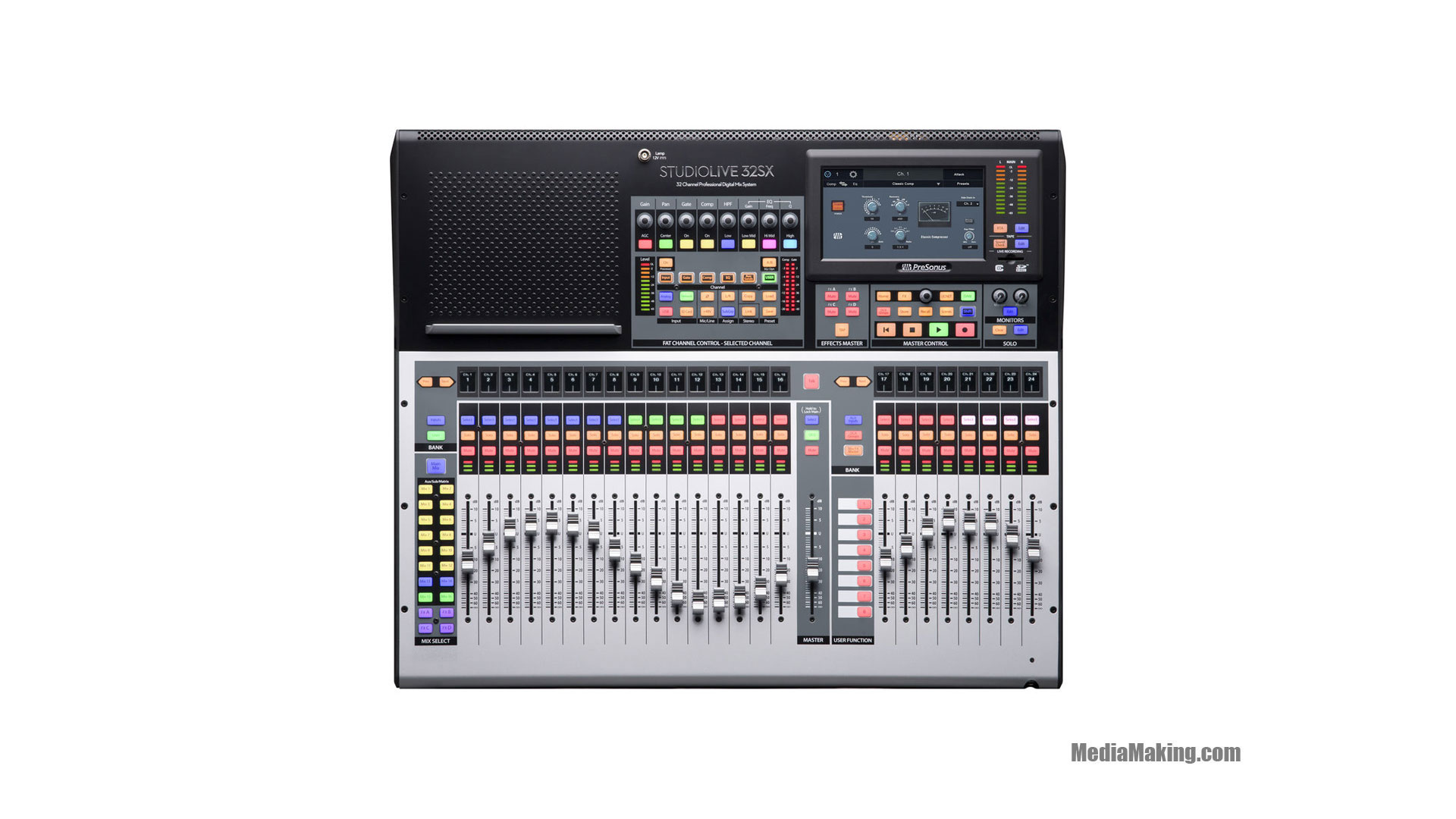

The 32-channel audio mixer and recorder PreSonus StudioLive 32SX Series III is designed for live sound reinforcement, live recording, and studio recording applications. It is a Series III S digital console, recorder, and audio interface in a low-profile, space-saving frame. The mixer features an integrated hardware and software system with a full-color touchscreen, 25 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.
Specifications
