The MultiSlider XL features a very powerful motor for greater load capacity and greater stability.
A ball bearing trolley ensures smooth movement and an XL motion controller with DMX functionality integrates the MS XL into any existing system.

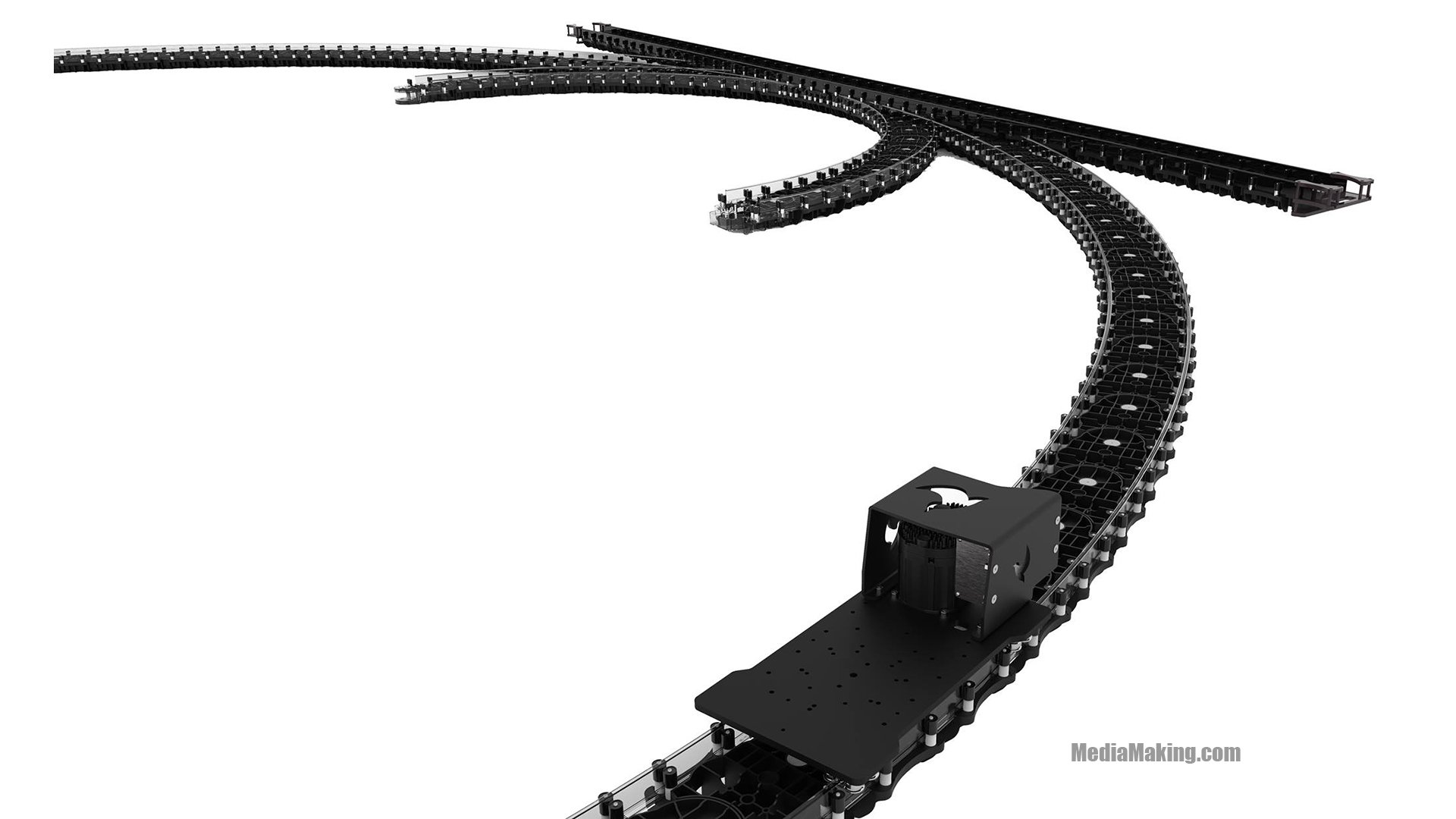

The modular system of MS EXCEL allows for easy transport and quick setup.
The rail can be divided into small segments which are connected with screws and the rails can be rolled up for transport.

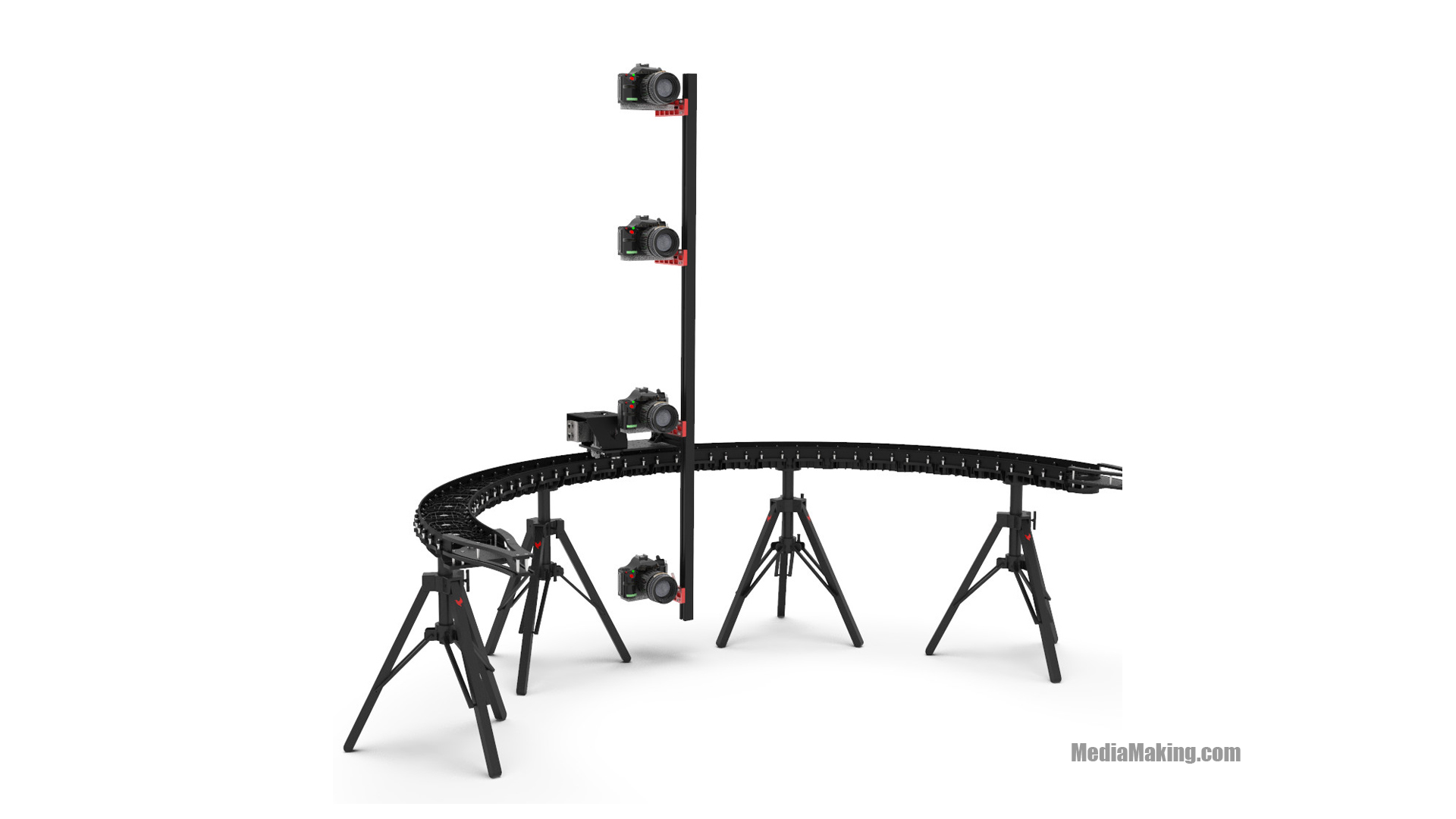

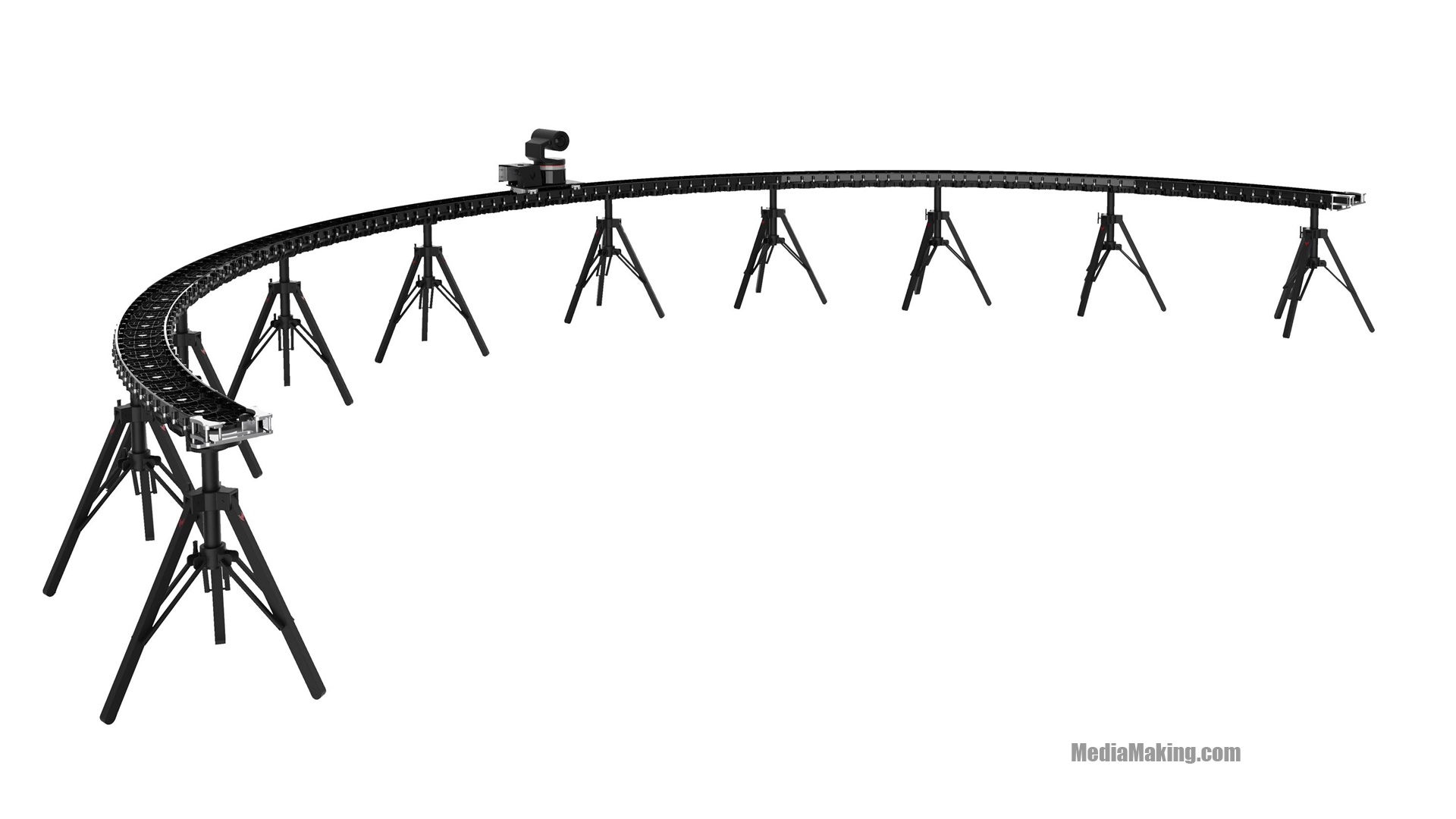

Each segment of the MS XL has a 3/8 “-16 mounting port on the bottom for tripod mounting to ensure maximum stability while the cart is in motion.
The mounting ports are located approximately 15 cm apart.

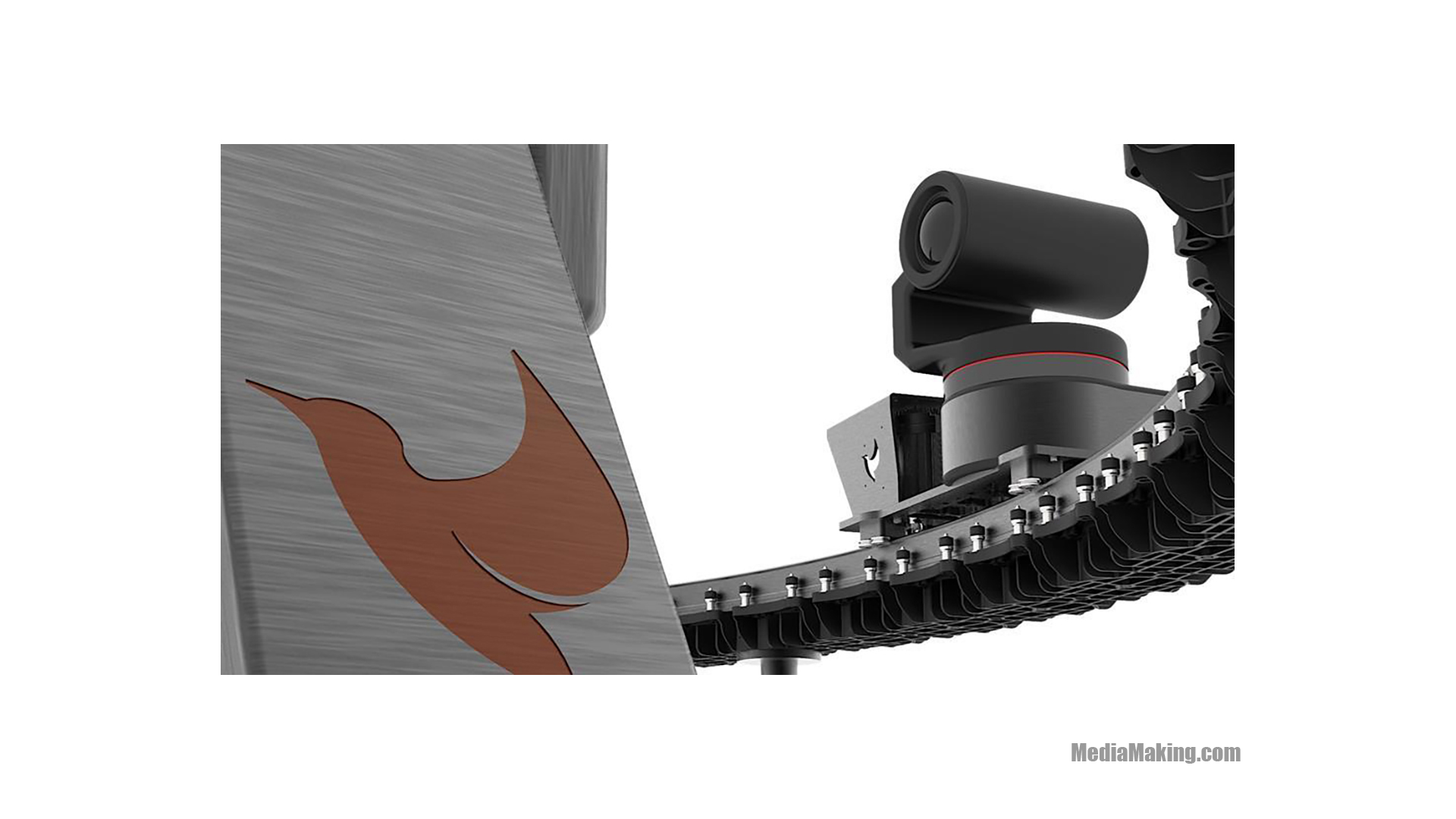

The high-end ball bearing CNC machined carriage ensures smooth movement and can also be controlled with Joysticks, pedals or the DMX Master.
Control via smartphone app (Android and iOS) is also possible.
Weight | Carriage: 2,2 kg (without motor and controller) Track: 3,75 kg |
Dimensions | Carriage: 37,0 x 20,0 x 10,0 cm Track: 100 x 18 x 6 cm |
Horizontal load capacity | 15,0 kg |
Max speed | 1.,4 m/sec. |
Working mechanism | Non-Friction Ball Bearings on high-end special composition plastic tracks |
Mounting options on bottom | 3/8″-16 mounting port on the bottom every 10 cm |
Mounting options on top | 3/8″-16 mounting screw |
