The lamp supports CCT dimming from 1800K to 20,000K, as well as full RGB hue and saturation, allowing it to reproduce millions of colors with color fidelity (CRI 96, TLCI 98). It also includes a series of preset special effects, ideal for simulating dynamic settings such as fireworks, flashes or emergency lights. Thanks to the compatibility with Nanlux/Nanlite modifiers and accessories, it offers maximum flexibility of use.

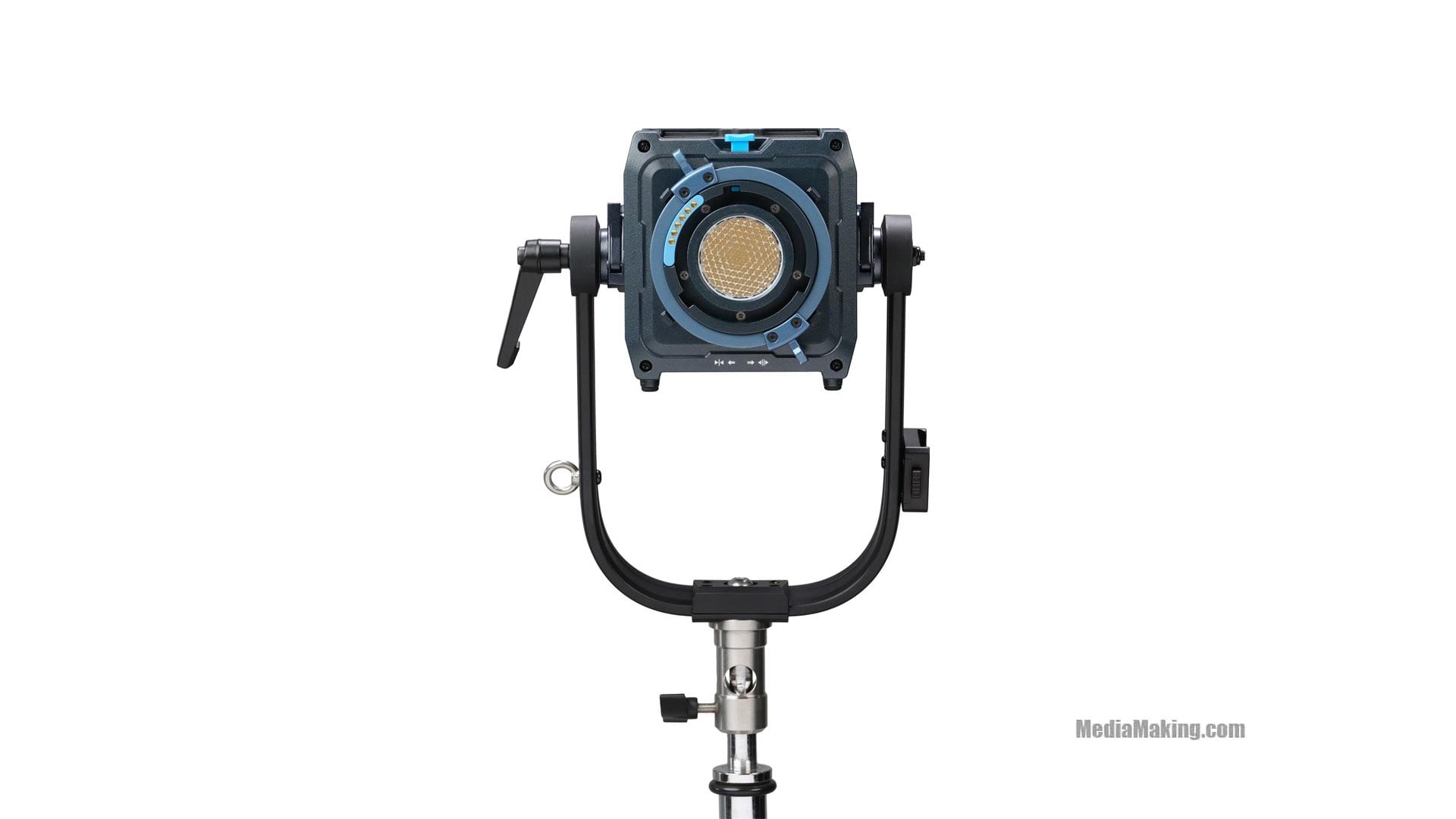

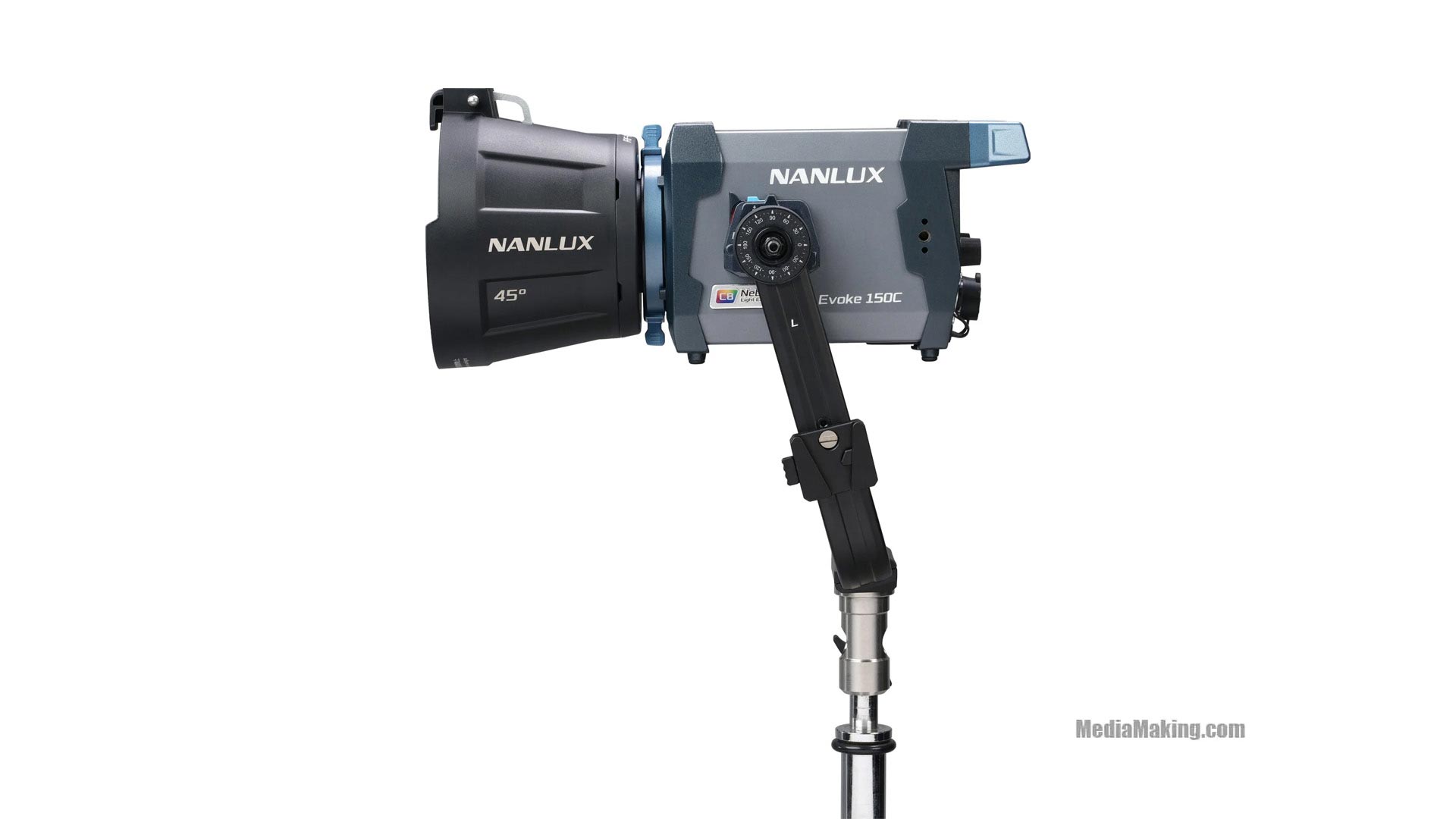

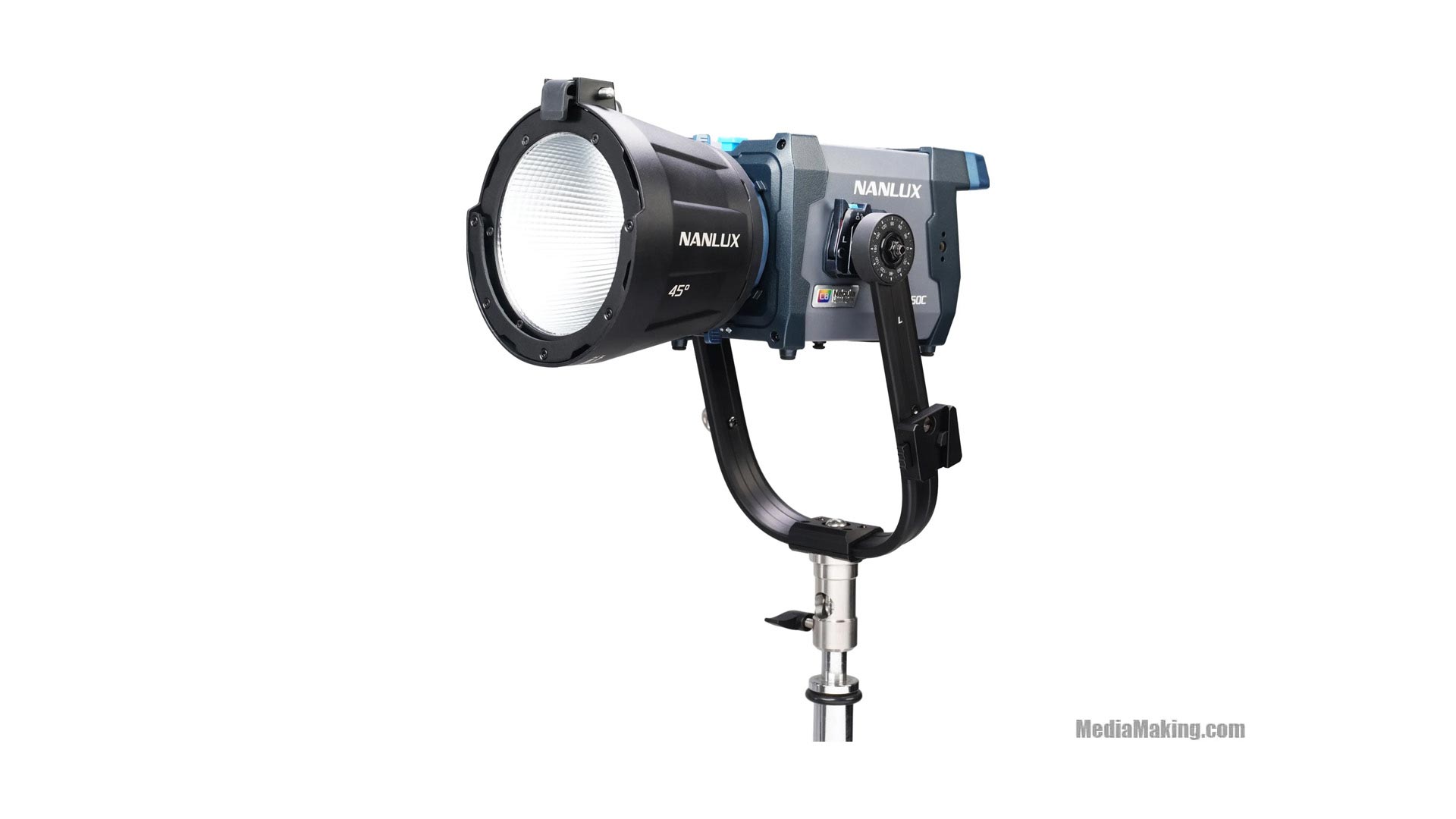

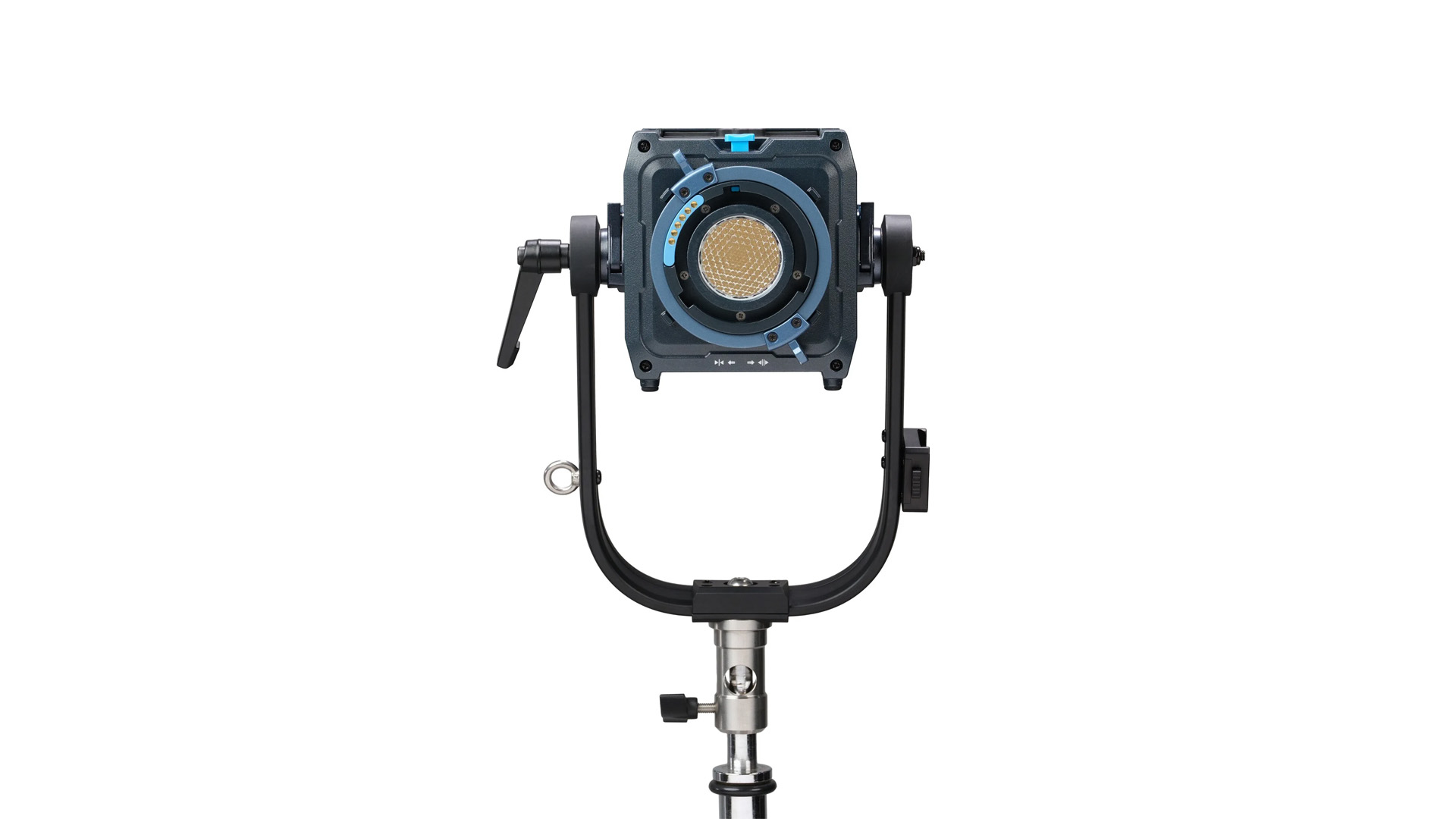

Robust and versatile, the Evoke 150C features built-in controls, DMX/RDM management, the Nanlink App and wireless connections, making it easy to integrate into complex sets. Powered by both AC and V-Mount batteries, it is perfect for studio and on-location shooting. In summary, the Nanlux Evoke 150C is a compact yet professional solution for those looking for a high quality, reliable and production-ready full colour light.
| Dimensions |
Fixture: 20,8 × 14,5 × 12,7 cm Case included: 36 × 24.5 × 22 cm |
| Weight | 2,65 kg |
| Model | Evoke 150C |
| Rated power | 150 W |
| Input voltage/current |
CA 100-240 V / 50-60 Hz CC 14,4-28 V (PD3.0 60 W Min) |
| Power source |
AC cord (included) D-Tap battery 14.4–28 V (not included) |
| Beam angle |
47° (unmodified) 45° (with reflector included) |
| Color Temperature (CCT) | 1000 K – 20000 K |
| Color mode | RGB, Daylight, Tungsten |
| CRI | 96 |
| TLCI | 97 |
| TM-30 Rf | 96 |
| TM-30 Rg | 100 |
| SSI |
78 (5600K) 86 (3200K) |
| Dimmer | 0% – 100%, App / DMX / RDM / Integrated Control |
| Cooling system | Fan |
| Wireless Control |
Bluetooth CRMX Radio/RF (remote control not included) App Nanlink (Android & iOS) |
| Preprogrammed effects | Yes |
| Assembly |
Yoke Manual Mounting bracket 1 × Stud 1-1/8″ with 5/8″ receiver 3 × 1/4″-20 Female Thread |
| Display | Yes |
| Environmental resistance | IP66 (dust, rain, water) |
| Operating conditions | -20 °C – 45 °C |
| Certifications | BIS, CE, FCC-ID, Kcc, NCC, PSE Circle, RoHS, UKCA |
