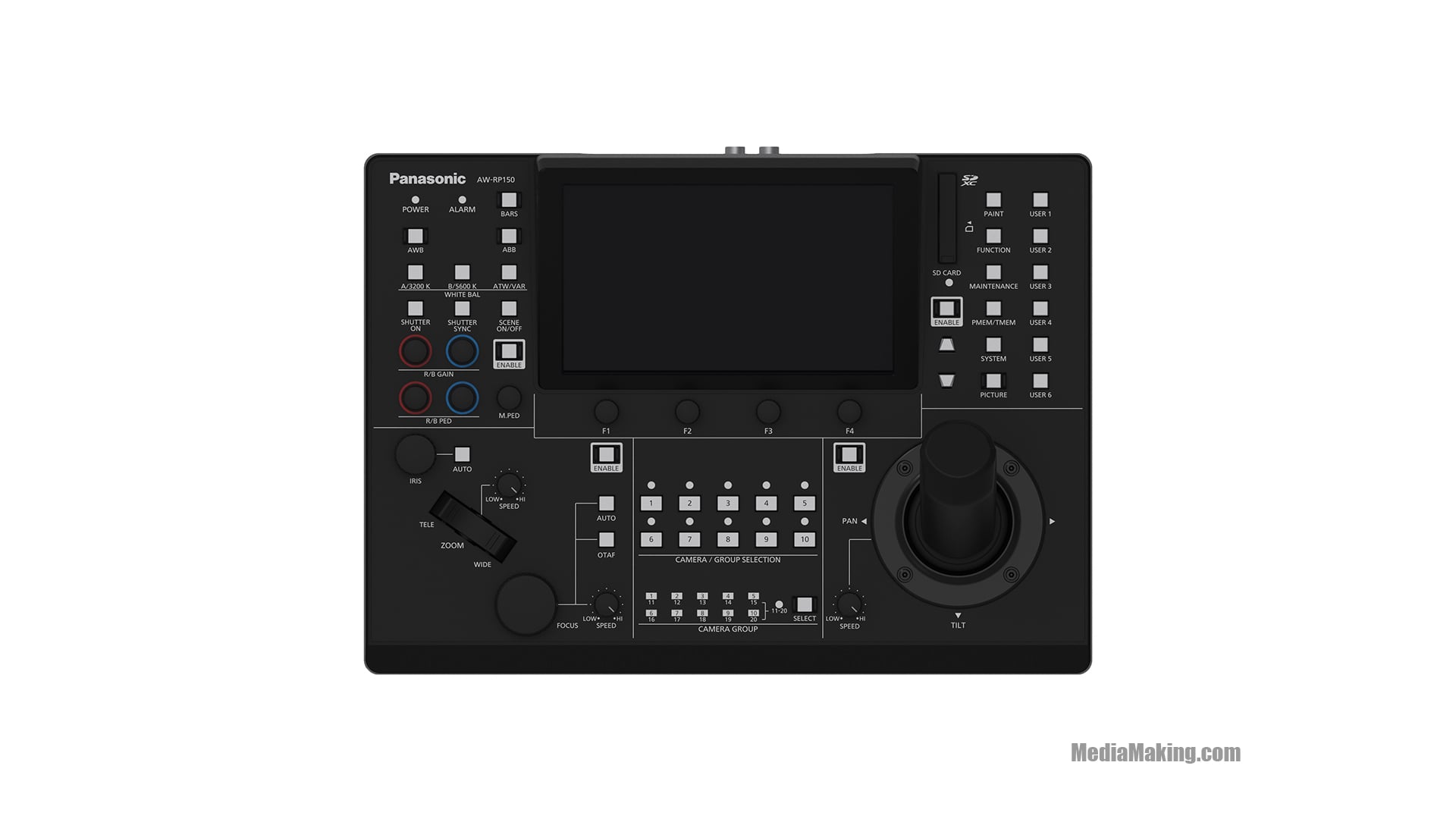

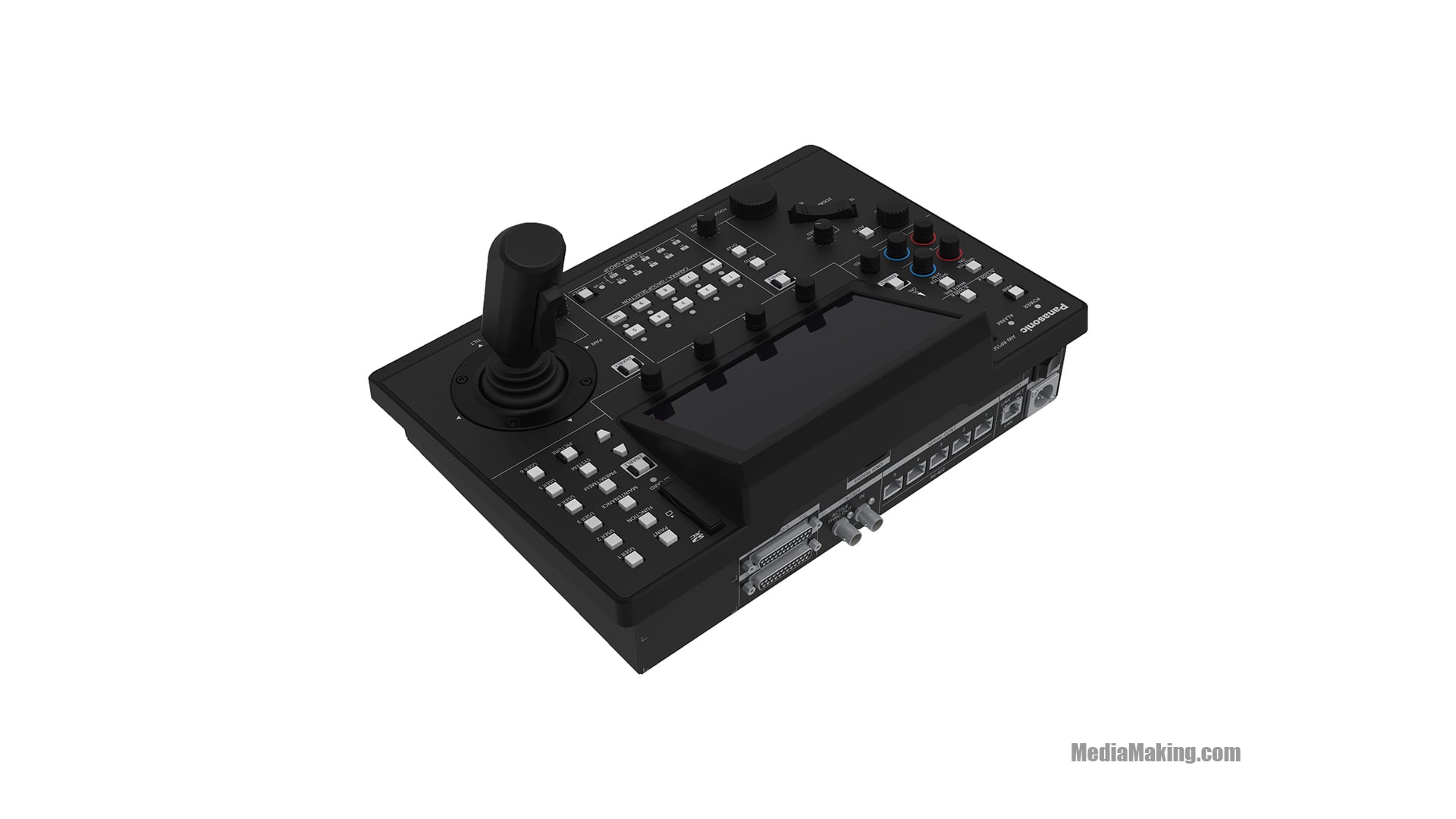

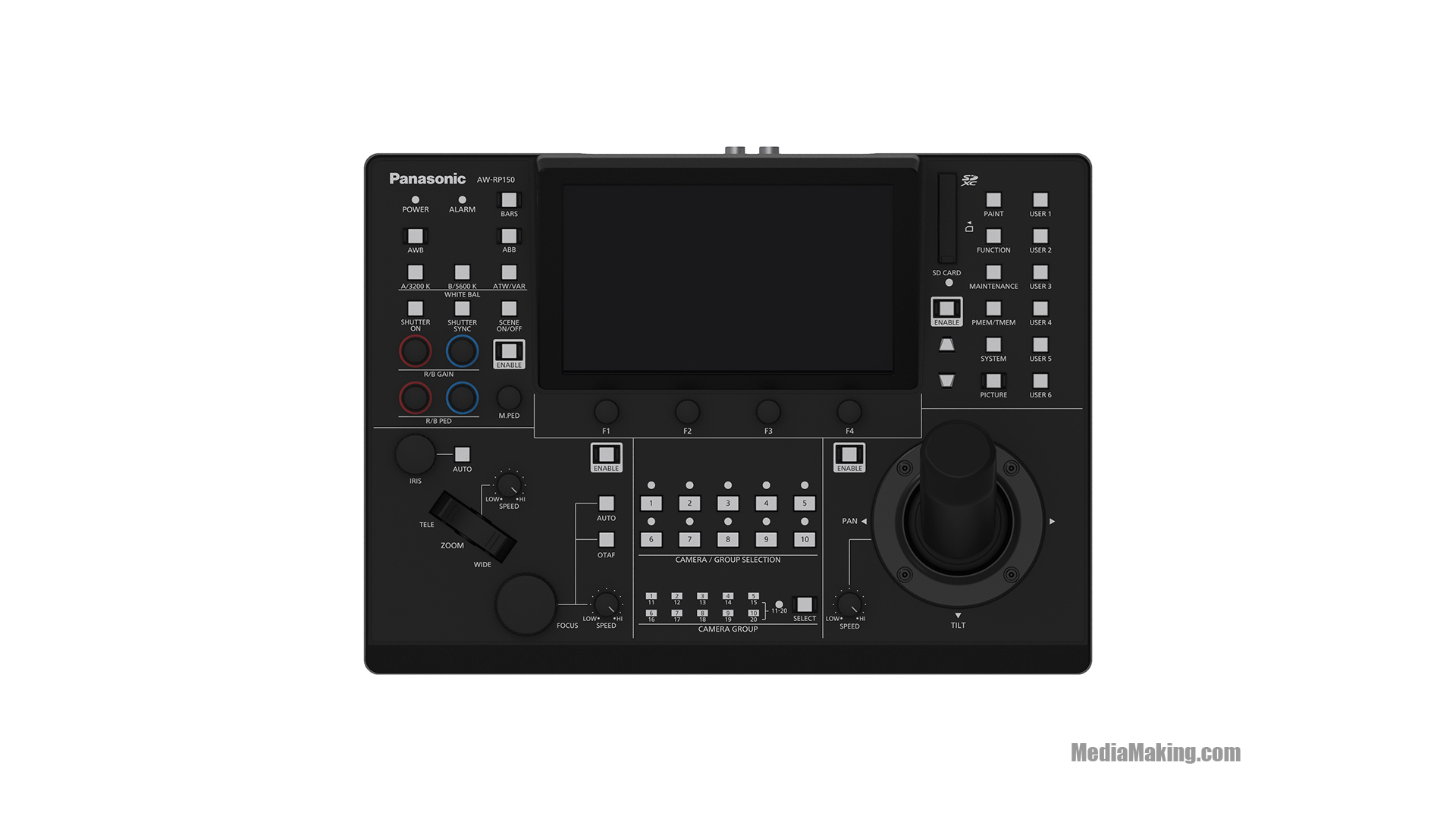

Remote control AW-RP150 for PTZ Panasonic cameras
The AW-RP150 is the new remote controller that interacts with Panasonic’s full line of professional PTZ cameras.
It offers excellent features including a one-handed joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.
A joystick-mounted rocker lever manages pan and tilt, zoom and focus operations.
The integrated touchscreen display allows you to use all essential camera functions quickly and easily.
Specifications
| Weight | 3,2 kg |
| Dimensions | 34,2 x 17,8 x 24,5 cm |
| Power supply | 12 V DC |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -20 °C – 50 °C |
| Compatibility | IP/RS422 AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1 |

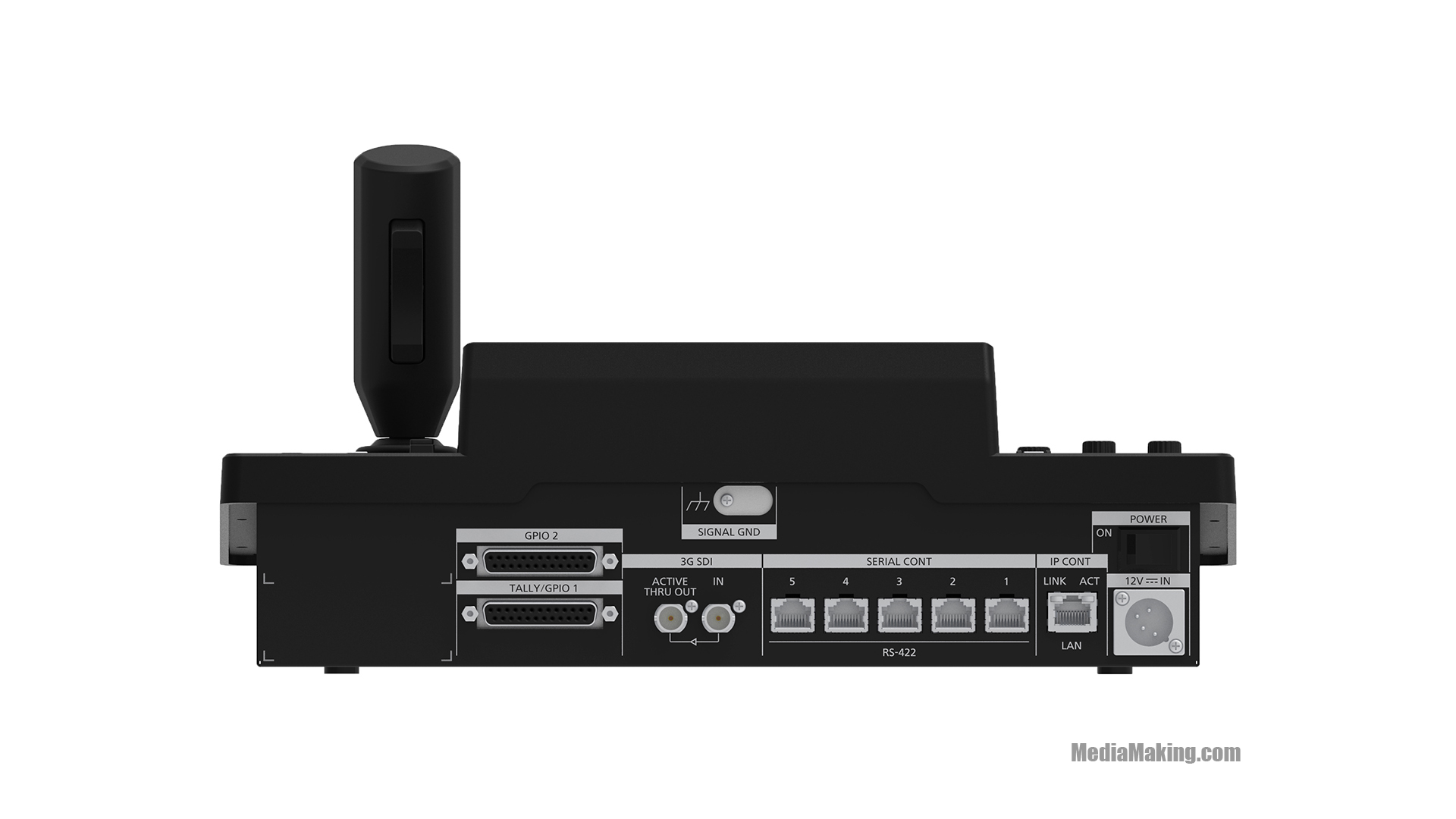

| Input | DC 12 V IN XLR 4-pin 3G-SDI IN SMPTE292 / 75 Ω (BNC x 1) Supported formats: 1080/59.94p*2, 1080/50p*2, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF |
| Output | ACTIVE THRU OUT SMPTE292 / 75 Ω (BNC x 1) |
