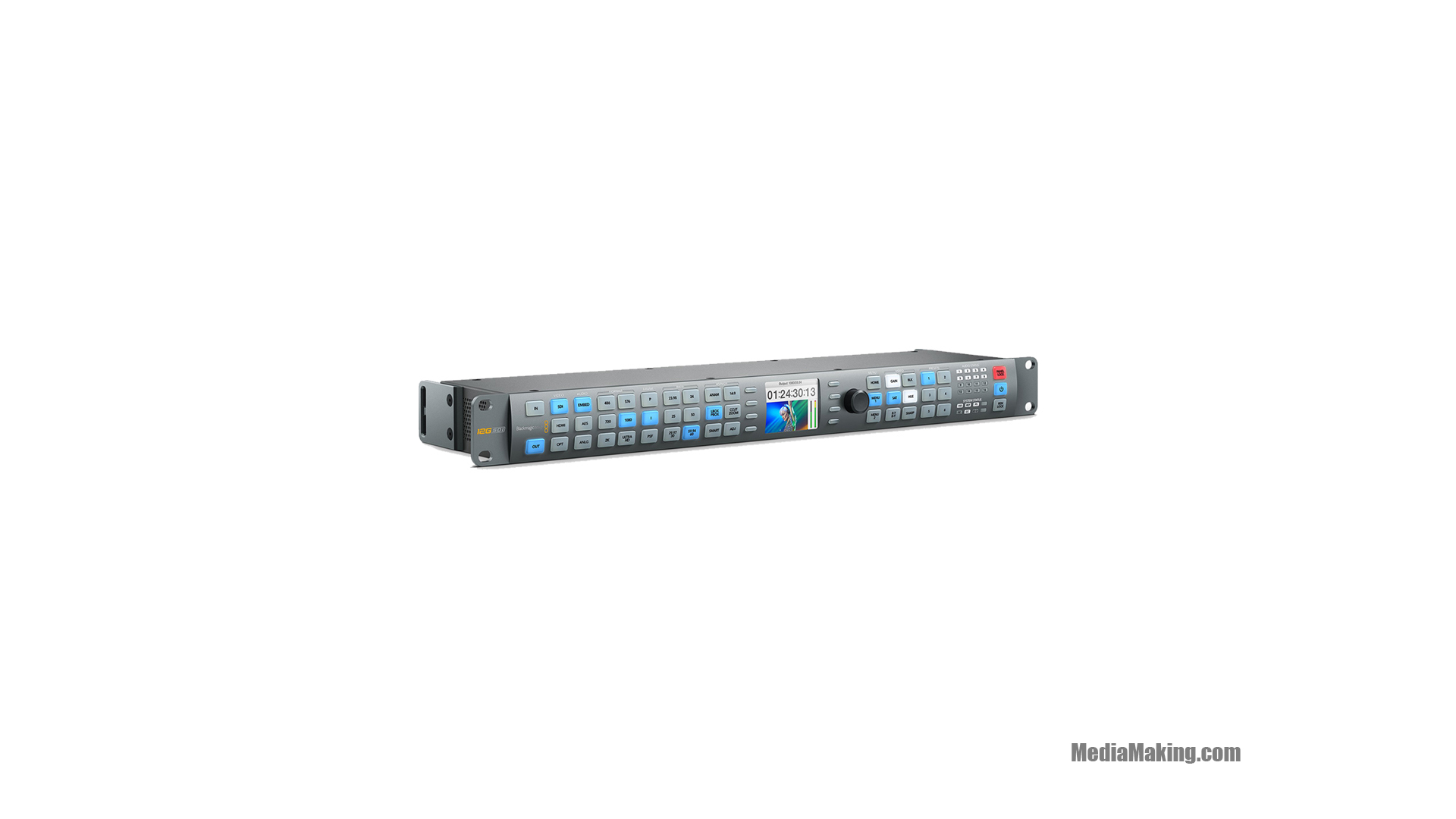

Standards Converter Teranex AV
Teranex-AV
Standards Converter Teranex AV
The Teranex standards converter is the definitive solution to convert SD, HD and Ultra HD formats, and guarantee the quality and performance required by the best TV broadcasters worldwide. The Teranex standard converter performs conversions in higher, lower or cross resolution between all SD, HD, Ultra HD and frame rate formats, and also includes the function of removing and inserting the 3: 2 pulldown cadence. Developed with advanced patented algorithms, the Teranex converter offers extraordinary 10-bit conversions of excellent quality, complete with audio, closed subtitles, timecode and more.
Specifications
Weight 0,33 kg
Dimensions 12,1 x 9,2 x 2,2 cm
Input 1 x 6G-SDI
Output 8 x 6G-SDI
Format SD

NTSC 525/29.97 and 525/23.98

PAL 625/25



HD

720p 59.94/60

1080i 50/59.94/60

1080PsF 23.98/24/25/29.97/30

1080p 23.98/24/25/29.97/30/50/59.94/60

2K

2048x1080PsF 23.98/24/25

2048/1080p 23.98/24/25

UHD/4K

3840x2160p 23.98/24/25/29.97/30

4096x2160p 24

Consumption 4.8 W
Power 12 VDC
