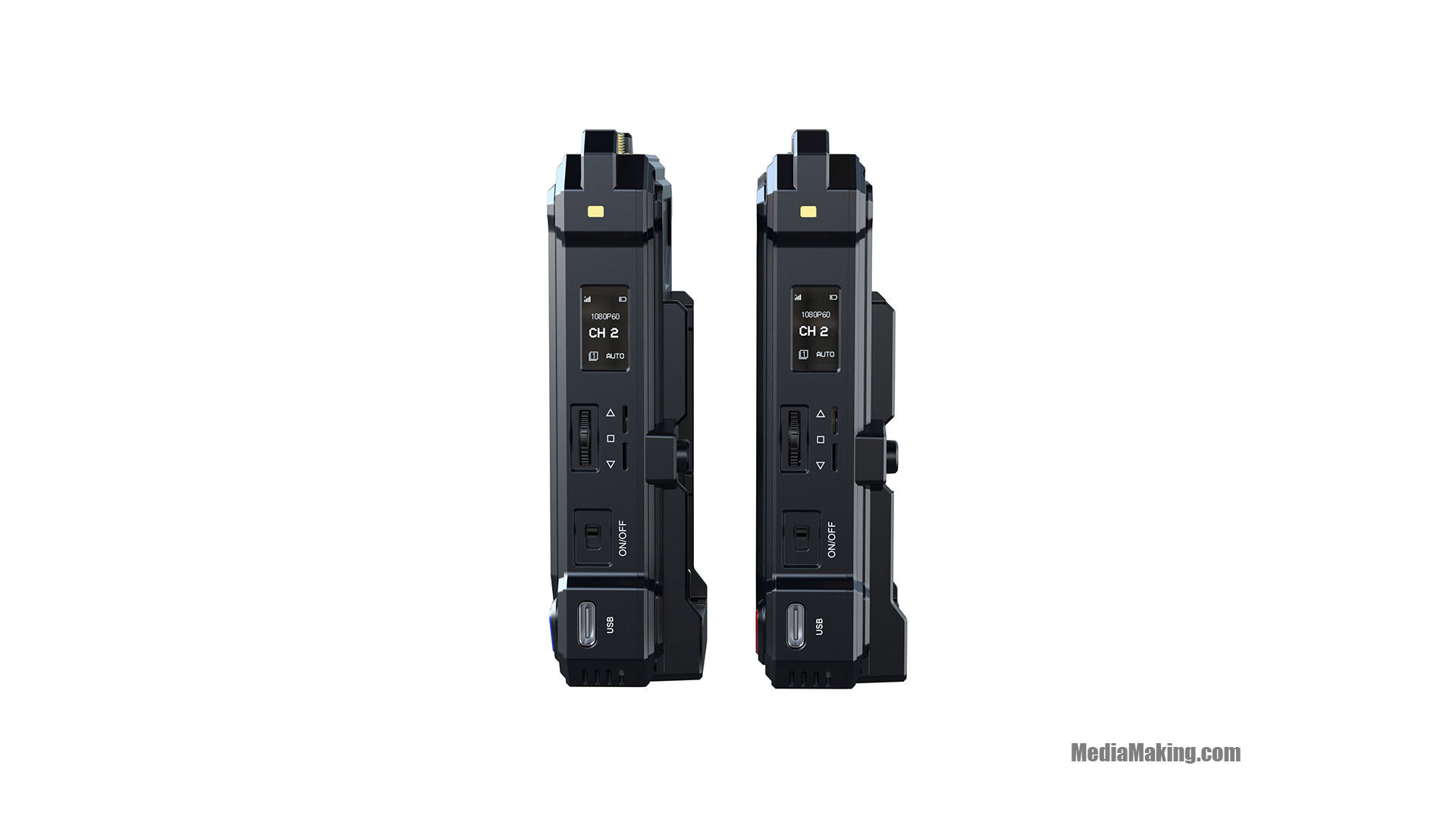

The system operates on the 5 GHz frequency band and is encrypted to prevent video leakage. The system supports smart channel selection, allowing the system to choose the cleanest channel for transmission. It also supports UVC pull streaming. Both units also feature a bright, easy-to-read OLED display. Each unit is designed to be powered via an L-series battery plate, by the included D adapter, or with an optional USB power supply via the USB Type-C port. Four standard antennas and two mushroom antennas are supplied for the receiver and transmitter.
Weight | Transmitter: 214 g Receiver: 210 g |
Dimensions | Transmitter: 11,5 x 7 x 3,2 cm Receiver: 115 x 7 x 3,2 cm |

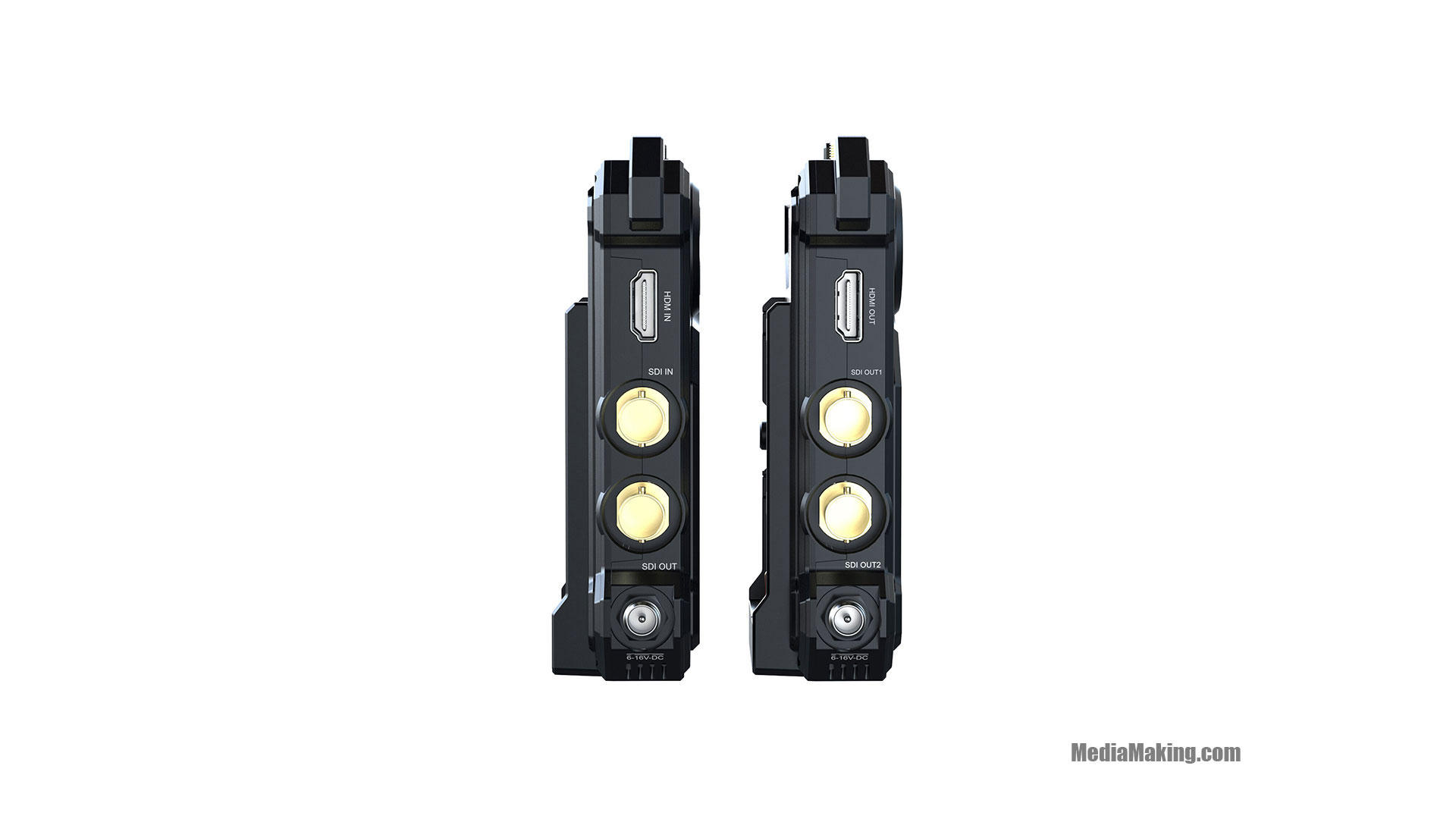

Video input/output | Transmitter: 1 x ingresso BNC (3G-SDI) Transmitter: 1 x ingresso HDMI tipo A Transmitter: 1 x uscita loop BNC (3G-SDI) Receiver: 2 uscite BNC (3G-SDI) Receiver: 1 x uscita HDMI tipo A |
Video formato | Transmitter: HDMI: 480p60 576p50 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.9/30 1080p50/59.94/60 SDI: 1080p60/59.94/50(Level A) 1080p60/59.94/50(Level B) 1080i60/59.94/50 1080p30/29.97/25/24/23.98 1080psf25 720p60/59.94/50 1080psf24/23.98 Receiver: |
Frequency range | 4.9GHz~5.9GHz |
Transmission distance | 300 m |
