CURVE500 wireless system is based on SWIT’s latest KUWI wireless technology, NON WIFI, 5.1-5.9GHz license-free bands, DFS compliance, supports HDMI 1080p60 transmission 150 meters away.
The system is pure hardware connection, plug and play.

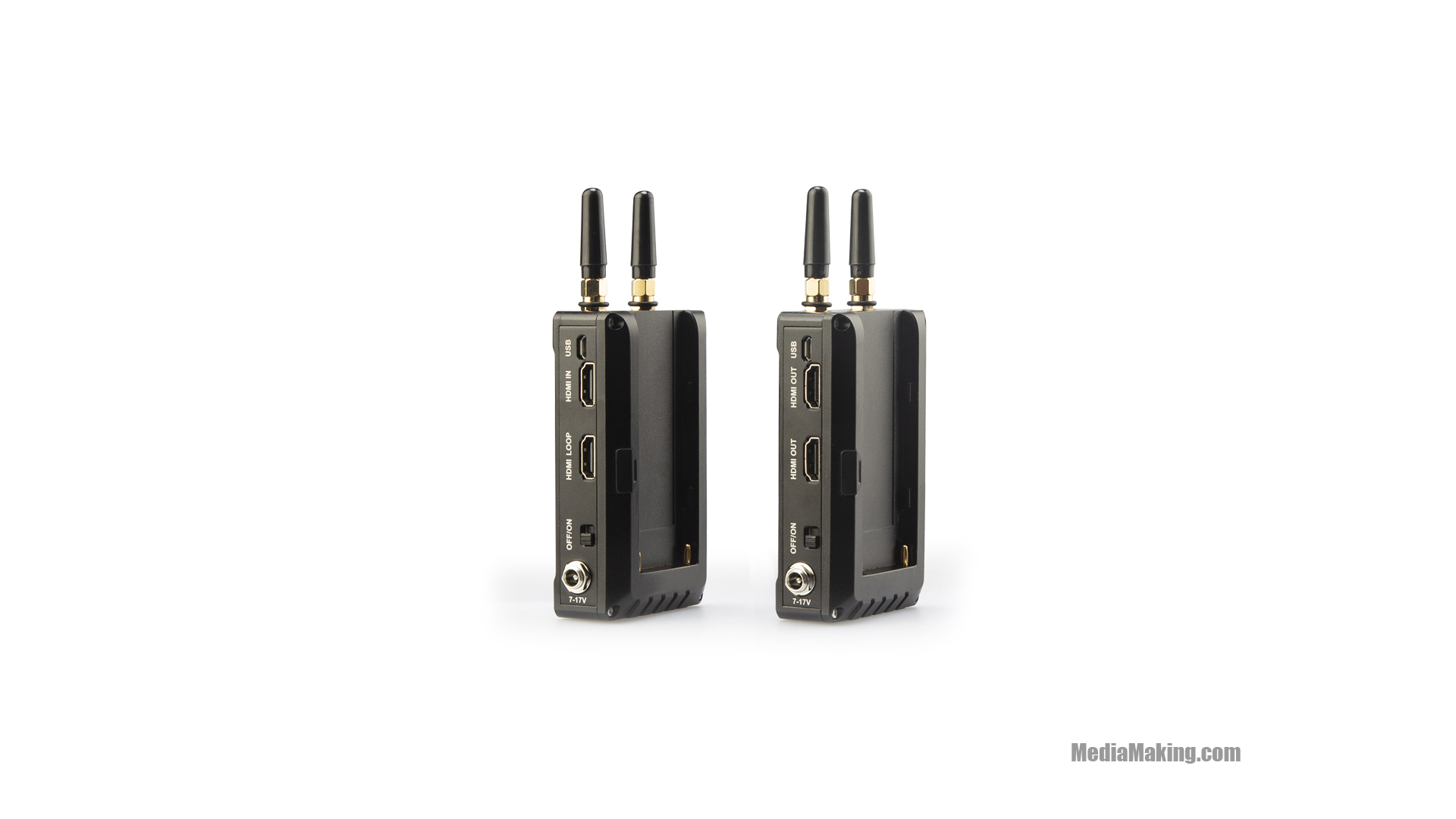

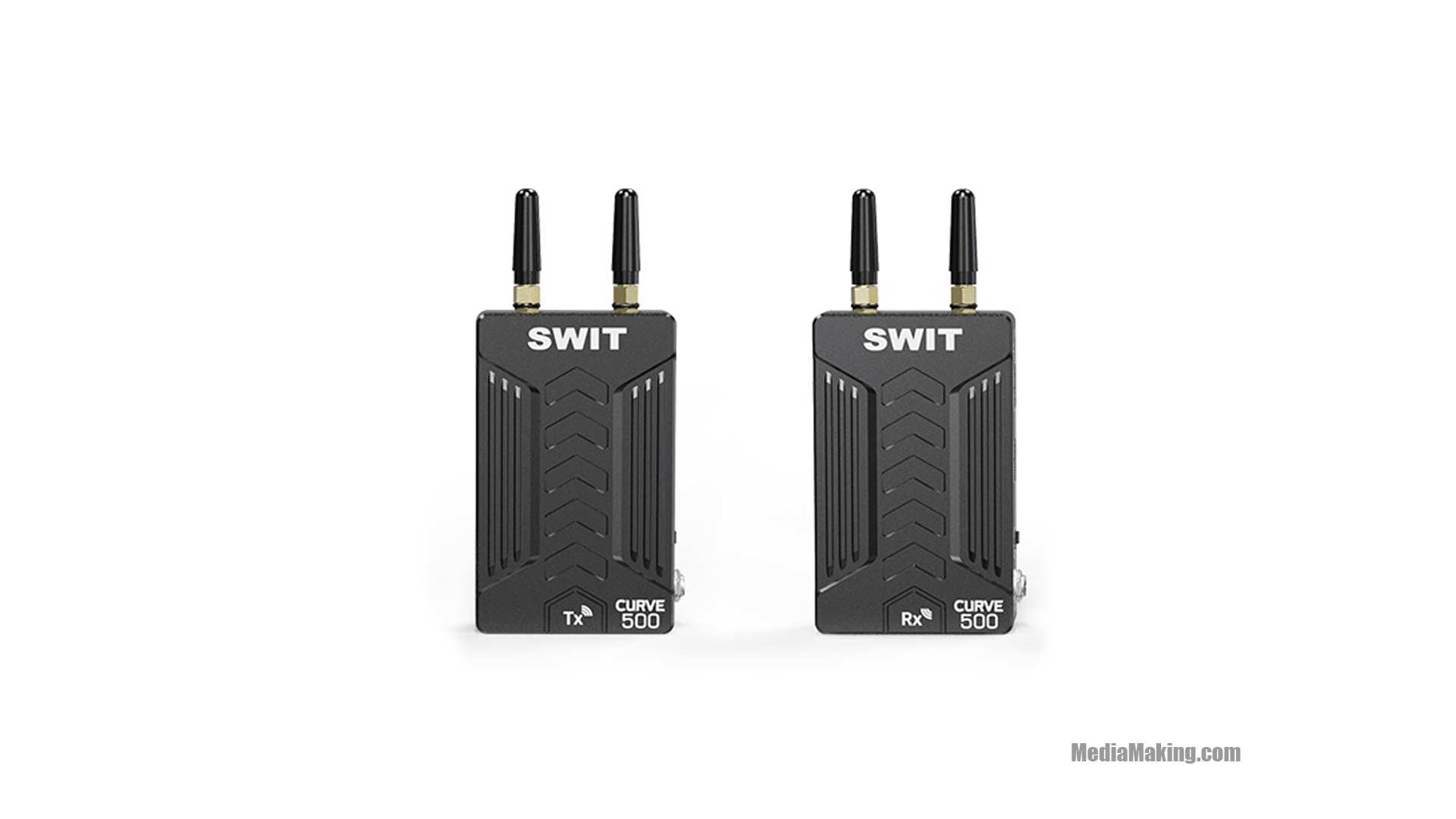

The transmitter (Tx) has 2 omnidirectional antennas and the receiver (Rx) has 2 omnidirectional antennas.
Weight (Transimitter – Riceiver) | 1.98 kg – 2,0 kg |
Dimensions (Transimitter – Riceiver) | 11,4 × 6,9 × 2,8 cm – 11,4 × 6,9 × 2,8 cm |
Input (Transimitter) | HDMI 1.3 input ×1 |
Output (Transimitter) | HDMI 1.3 loop output ×1 |
Output (Riceiver) | HDMI 1.3 output ×2 |
Video formats | 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 |
Wireless frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
RF modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
Transmission distance | 150 m |
RF Power (Transmitter) | 50mW |
Input voltage (Transimitter – Riceiver) | DC 7-17V – DC 7-17V |
