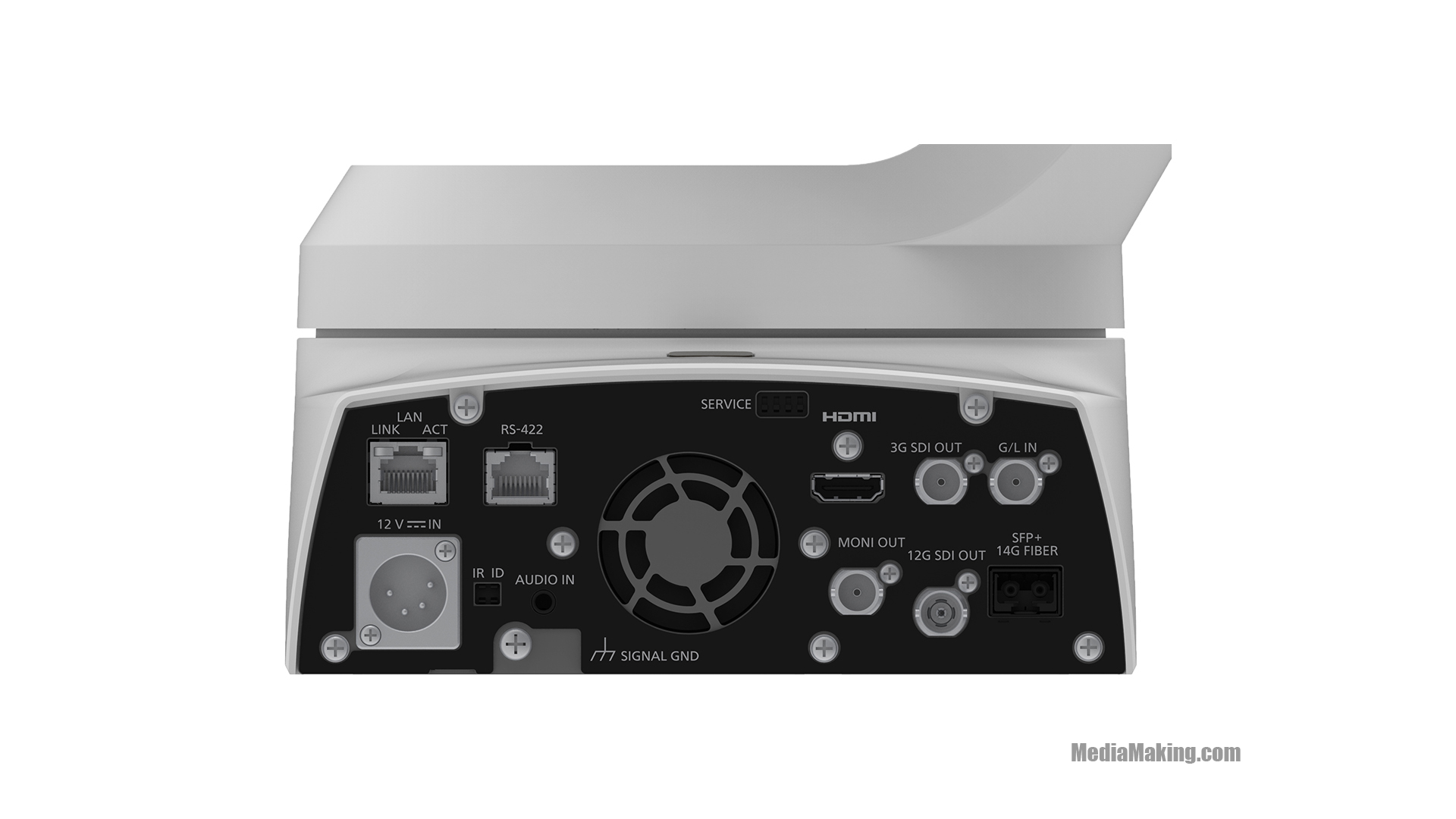

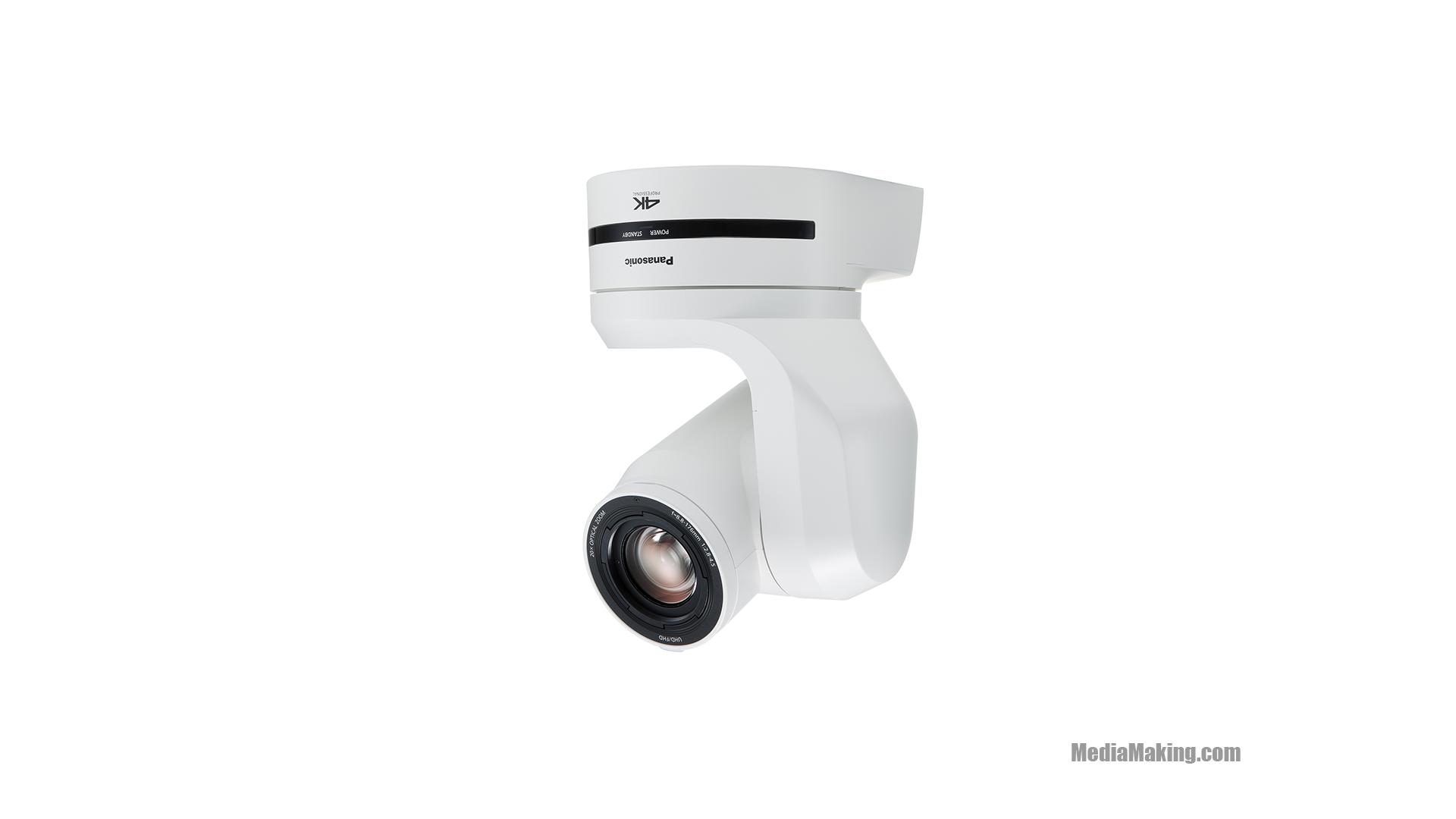

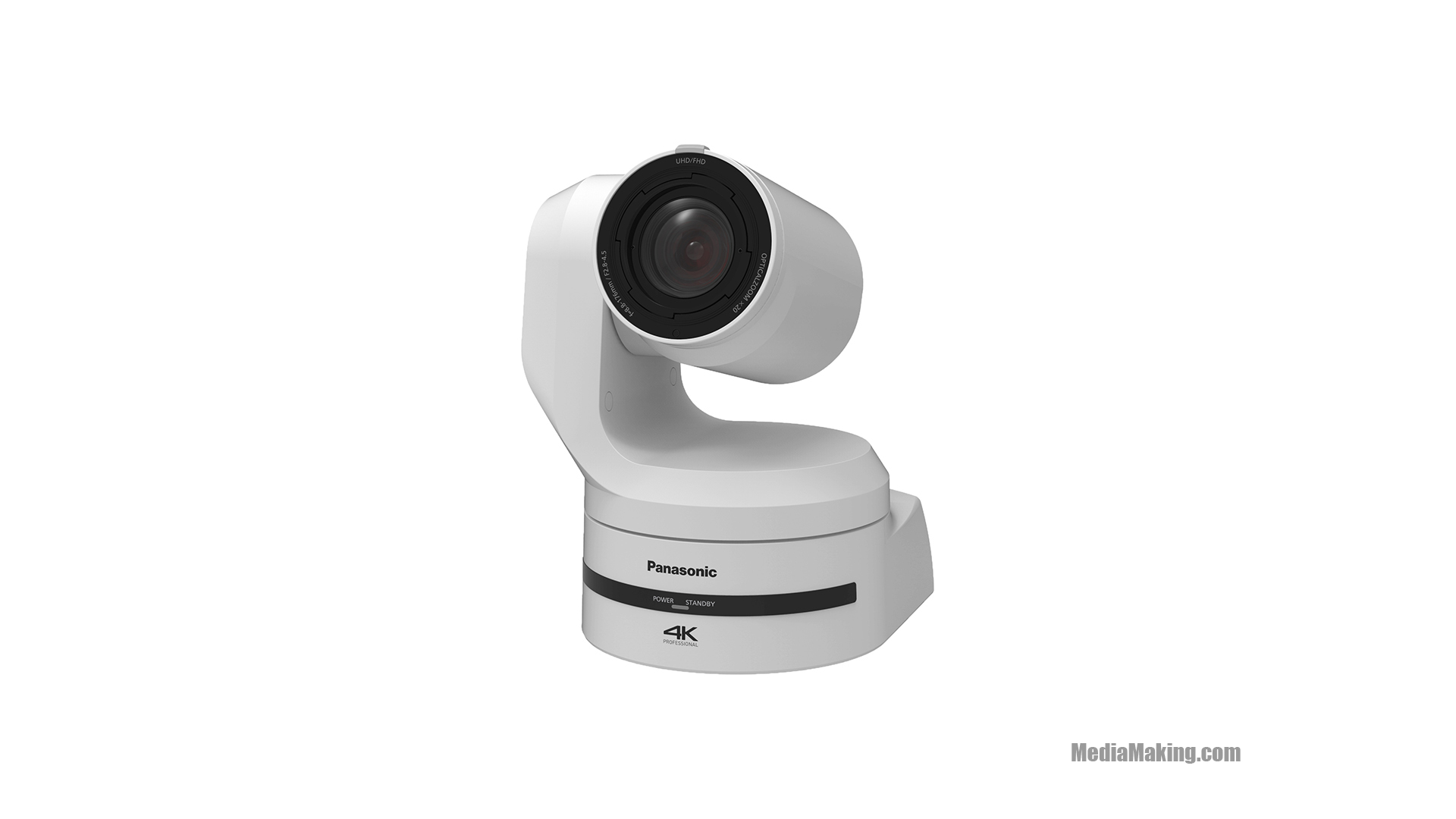

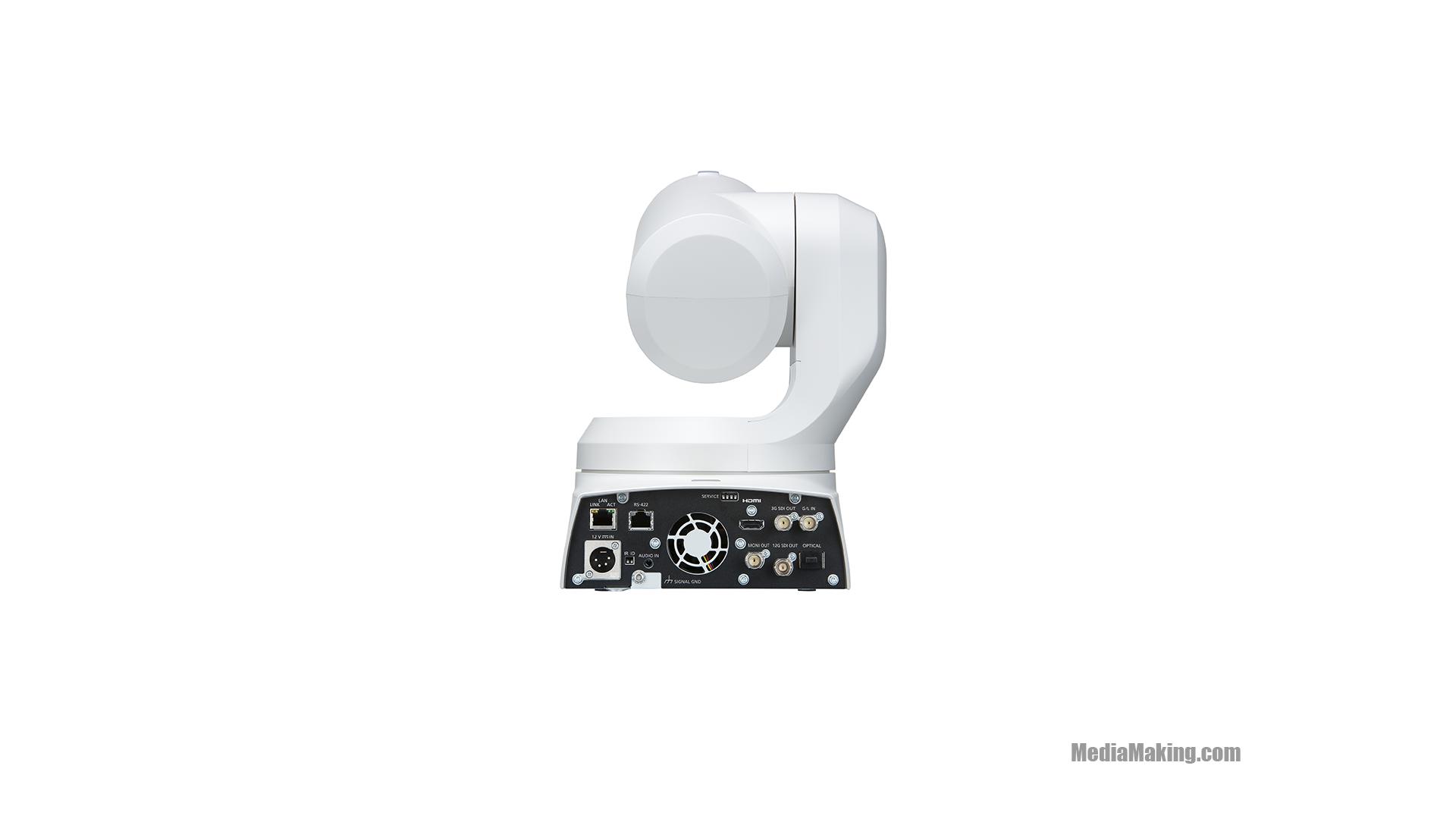

Equipped with a 1 “MOS sensor, the Panasonic PTZ AW-UE150 camera supports high quality 4K 50p video, features a 75.1 degree viewing angle and 20x optical zoom, and supports multiple outputs including 12G-SDI , HDMI, optical fiber and IP.
Simultaneous 4K / HD operation makes this PTZ camera ideal for those looking for a future-proof system.
The next generation PTZ camera supports the production of high quality video at stadiums, conference rooms and other locations. The smooth, high quality 4K 50p * 1 high magnification zoom coupled with a wide shooting angle extends the application range of this PTZ camera. The camera is equipped with a number of interfaces and supports simultaneous 4K / HD operation which allows for versatility in current and future production systems.
Weight | 4,2 kg |
Dimensions | 22,0 x 21,5 x 27,0 cm |
Power supply | 12 V DC |
Operating temperature | 0 °C – 40 °C |
Storage temperature | -20 °C – 50 °C |
Lens | Motorized Optical 20x zoom, F2.8 – F4.5 |
Focal length | Entire zooming range: 1000 mm Wide end: 100 mm |
Output format | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
