Dimensions | Transmitter: 94 x 39 x 126 mm Receiver: 176 x 81 x 235 mm |
Interfaccia | Transmitter:SD1 Input x1; HDM1 Input x1; Tally Output x1; OLED Display x1 Lemo Power Connector x1: Antenna Connector x4: Rocker Power Switch x3; Button x1; NP-F970 Battery Slot x1 Receiver: DB9 (Tally input) x1; Antenna connector x4; Lemo power connector x1. Network port x1; Power button x1; OLED display x1; Button x3; V-mount slot x1 |
Power supply | Transmitter: CC 12W/2A Receiver: DC12W/3A |
Video resolution | 1080P 23,98/24/25/29,97/30/50/59,94/60,1080150/59,94/60,720P 50/59,94/60 |
Transmission distance | 800 m/2600 ft (LOS) |
Bandwidth | 40 MHz |
BeamLink Quad Plus – 4CH Full HD Crystal Video Wireless Video Transmission System

BeamLink Quad Plus – 4CH Full HD Crystal Video Wireless Video Transmission System

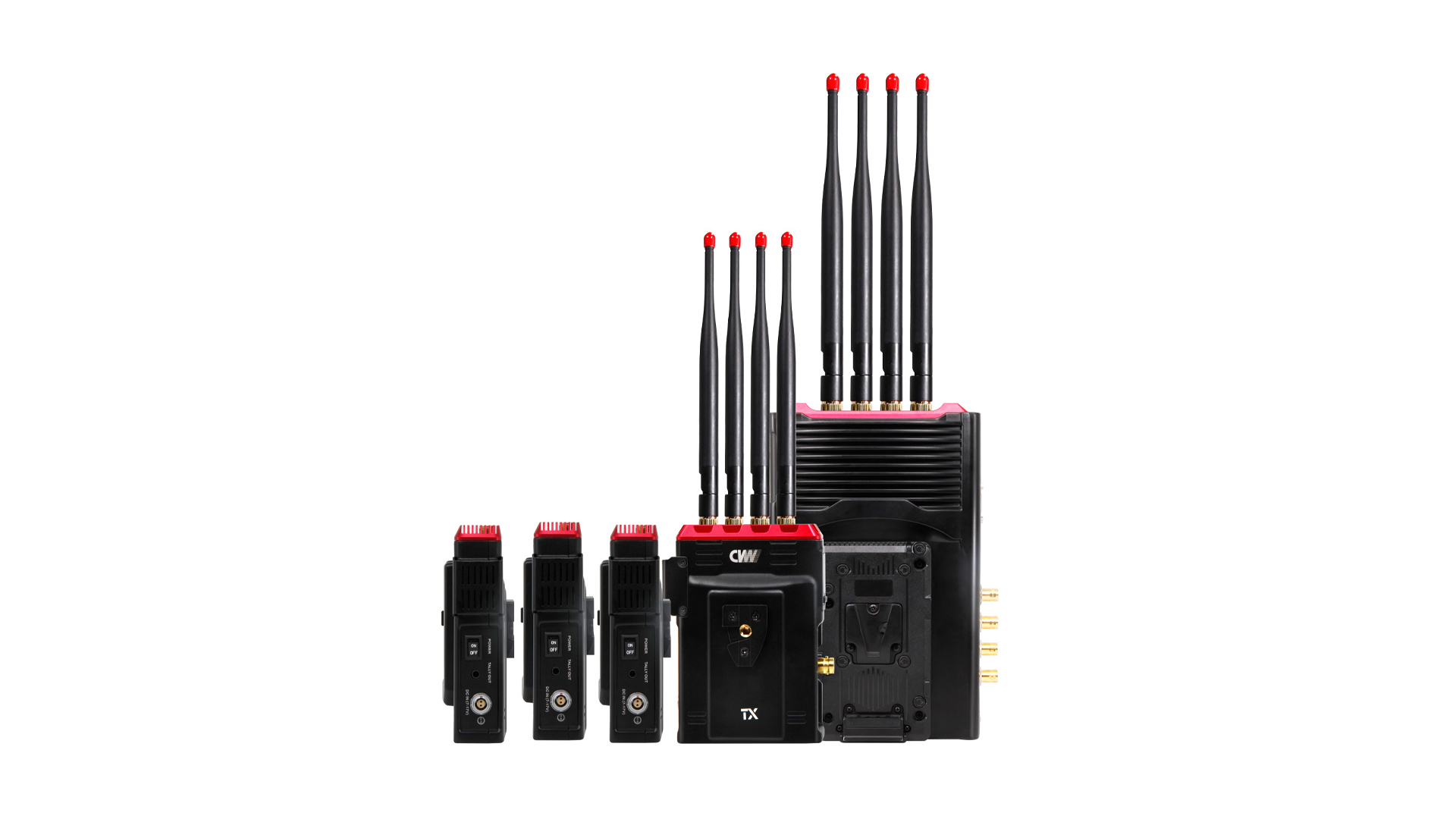

BeamLink Quad Plus – Sistema di Trasmissione Video Wireless 4CH Full HD Crystal Video is designed to send Full HD signals from four transmitters to a single receiver, with a range of up to 800 meters in line of sight. Thanks to the advanced 4×4 MIMO technology and beamforming, it guarantees a stable and reliable connection even in complex environments. It supports video up to 1080p at 60 fps, with H.265 compression, and also includes embedded audio in PCM or MPEG-2 format. The system is equipped with advanced functions such as support for PTZ control (via RS-232/RS-422), tally, timecode and metadata transmission, making it ideal for multi-camera productions at live events, TV studios and film sets. Security is guaranteed by 128 or 256-bit AES encryption. The BeamLink Quad Plus can be powered by Sony NP-F or V-Mount batteries, and is built in a robust and compact format, perfect for professional use in the field or in the studio.
Specifications
