Weight | 738 g |
Dimensions | 21,4 x 12,7 x 4,5 cm |
Input voltage (Battery) | 6,2 – 16,8 V |
Screen type | LCD |
Screen resolution | 1920 x 1200 px |
Brightness | 1500nit (+/- 10%) |
PPI | 325 |
Video Input/Output | HDMI – HDSDI |
Audio output | 3,5 mm Headphone Output 10-Pin LEMO Input/Output |
Supported codecs | ProRes RAW ProRes CinemaDNG (CDNG up to 30p only) Avid DNxHD |
Supported resolution / Frame rate from cameras | 4K DCI: 23.98/29.9/59.94p 4K UHD: 23.98/29.9/59.94p 2K DCI: 23.98/29.9/59.94p 1080p: 23.98/29.9/59.94p |
Supported resolution / Frame rate from gaming consoles and graphic cards | 1080p; 24/25/30/50/60/100/120 |
Material | Polycarbonate |
Monitor Atomos Shogun 7
Monitor Atomos Shogun 7

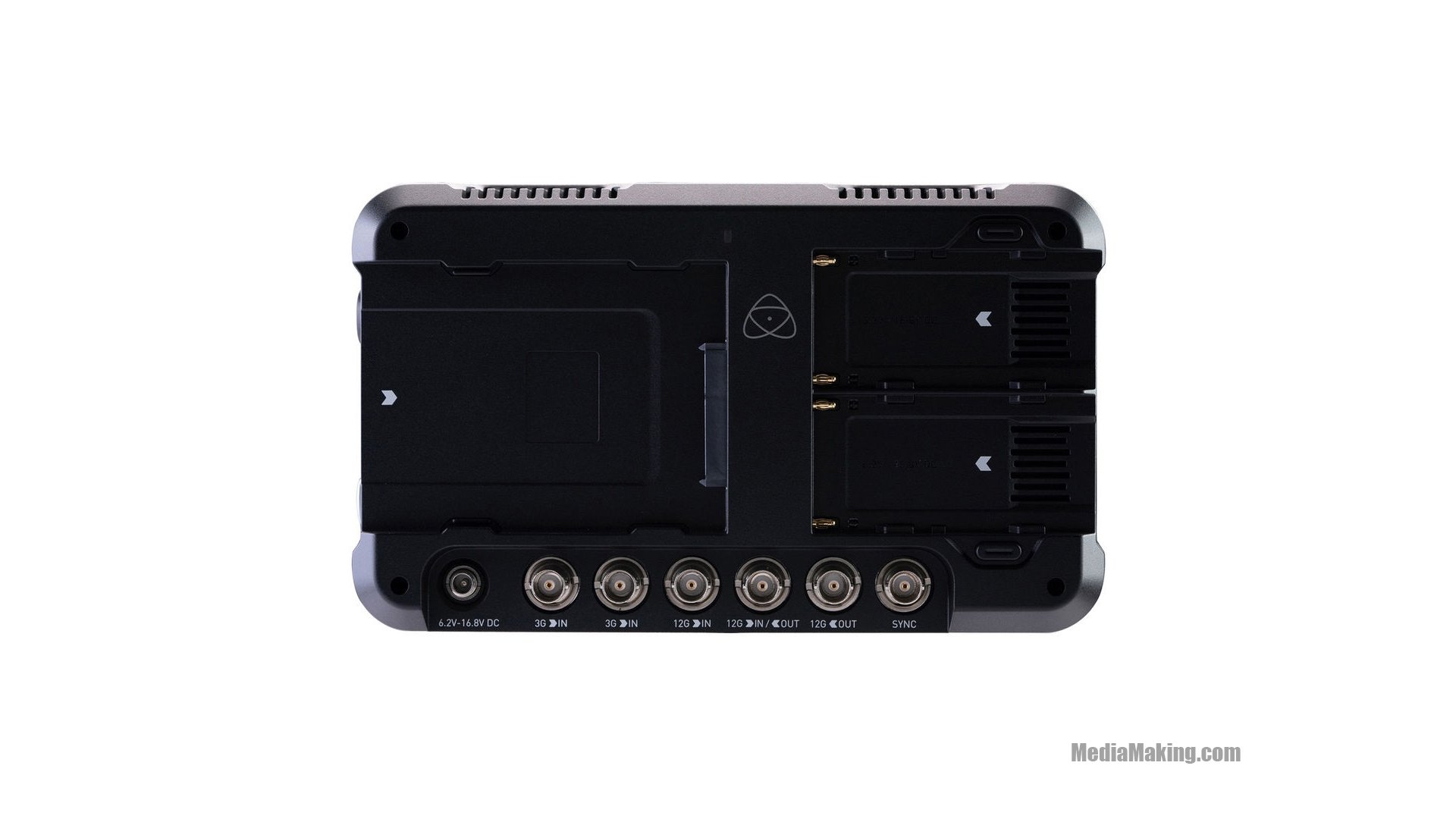

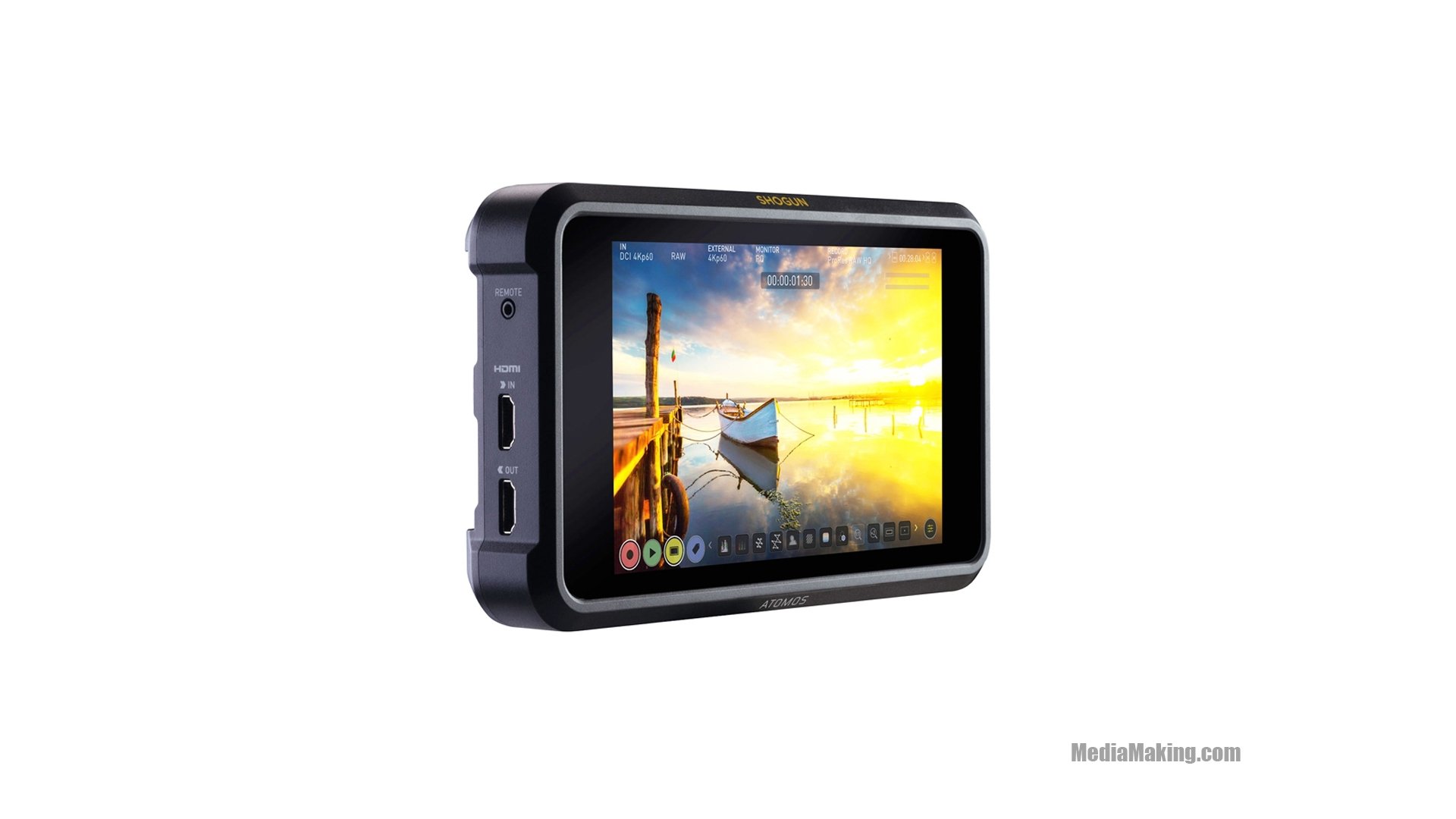

The monitor and recorder Atomos Shogun 7″ HDR Pro Cinema 4K for DSLR and cameras offers up to 4K raw recording. It has HDMI inputs and 12/6 / 3G-SDI input-output. With the AtomOS 10.4 firmware update, the Shogun 7 provides recording of up to four streams of HD-SDIì cameras plus program capture. This touchscreen monitor supports resolutions up to 4K DCI (4096 x 2160) at 60p and up to 2K at 240p for slow motion effects. 2.5″ SSD using Apple ProRes Raw, ProRes, CinemaDMG (up to 30p) and Avid DNxHD codec. Record all the actions of your event with live multi-camera monitoring, recording and switching between programs and up to four ISO SDI 1080p60 streams. When used with Final Cut Pro, a fully configurable multicam .xml file can be generated for easier editing. The 10-bit (8 + 2 FRC) panel of the Shogun 7 features a 360 ° backlight, a brightness of 3000 cd / m² and a contrast ratio of 1,000,000: 1. Native AtomHDR (log) display allows you to more accurately monitor the footage of the log range without having to view flat, faded images or use a LUT to compress the dynamic range and color space. The integrated presets accurately translate the most popular log formats of the ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED and Sony cameras. Save editing time by tagging movies on the fly and recording them directly in Final Cut Pro x, Adobe Premiere or Avid Media Composer formats (third-party plug-ins may be required for encoding). For audio recording, the monitor supports balanced XLR inputs with + 48V phantom power via a separately available audio cable. Additional Shogun 7 features include genlock input, BNC timecode input, SDI / HDMI cross conversion and a variety of on-screen exposure analysis, framing, focus assist and other visualization tools.
