Blackmagic Video Assist 7” 12G HDR
Blackmagic Video Assist 7″ 12G HDR is a professional monitoring and recording solution in all HD, Ultra HD, 2K and 4K DCI formats, compatible with any SDI or HDMI camera. The super bright 2500” 7 ”HDR display supports the LUT 3D integrates professional signal viewers, as well as advanced features for flawless focusing, exposure and framing. Two SD card slots allow you to record 4: 2: 2 10-bit broadcast quality clips in ProRes or DNx formats. Two mini XLR connections with 48V phantom power and -128dBVm background noise are included for the highest quality audio recordings, and files can be edited directly without having to convert them.
Specifications
Weight |
825 g |
Dimensions |
19,3 x 13 x 3,7 cm (LxAxP) |
Display |
Dimensioni : 7″
Risoluzione: 1920 × 1200
Aspect Ratio : 16:9 nativo
Luminosità: 2500 nit |
Retroilluminazione |
LED |

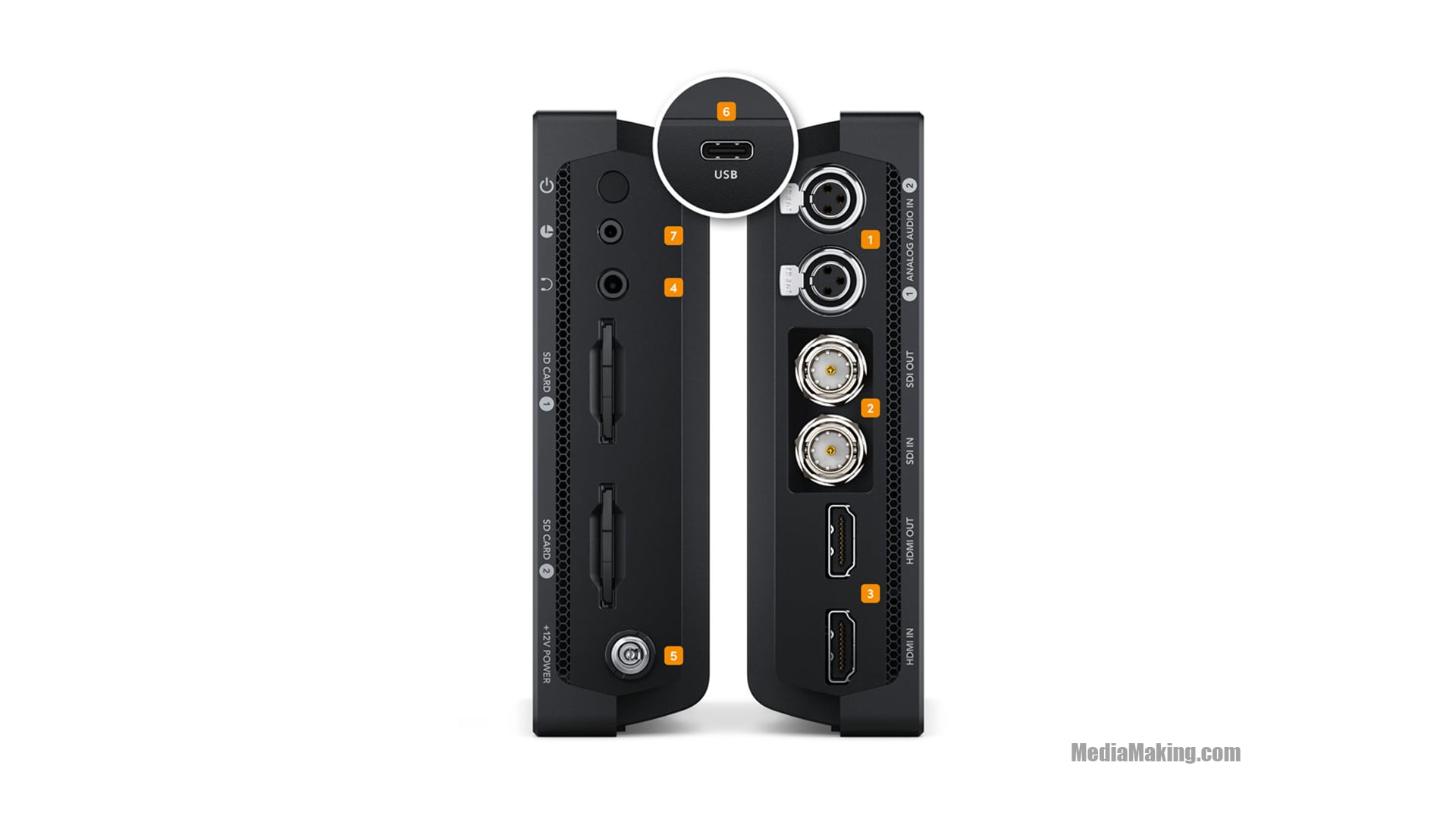

Input/Output |
SDI audio inputs
16 channels integrated via 12G-SDISDI audio outputs
16 channels integrated via 12G-SDIHDMI audio inputs
8 channels integrated via HDMI 2.0a
HDMI audio outputs
8 channels integrated via HDMI 2.0a |
Storage Type |
Removable cards SDXC UHS II, SDXC UHS I and SDHC UHS I. Compatible with DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 cards |
