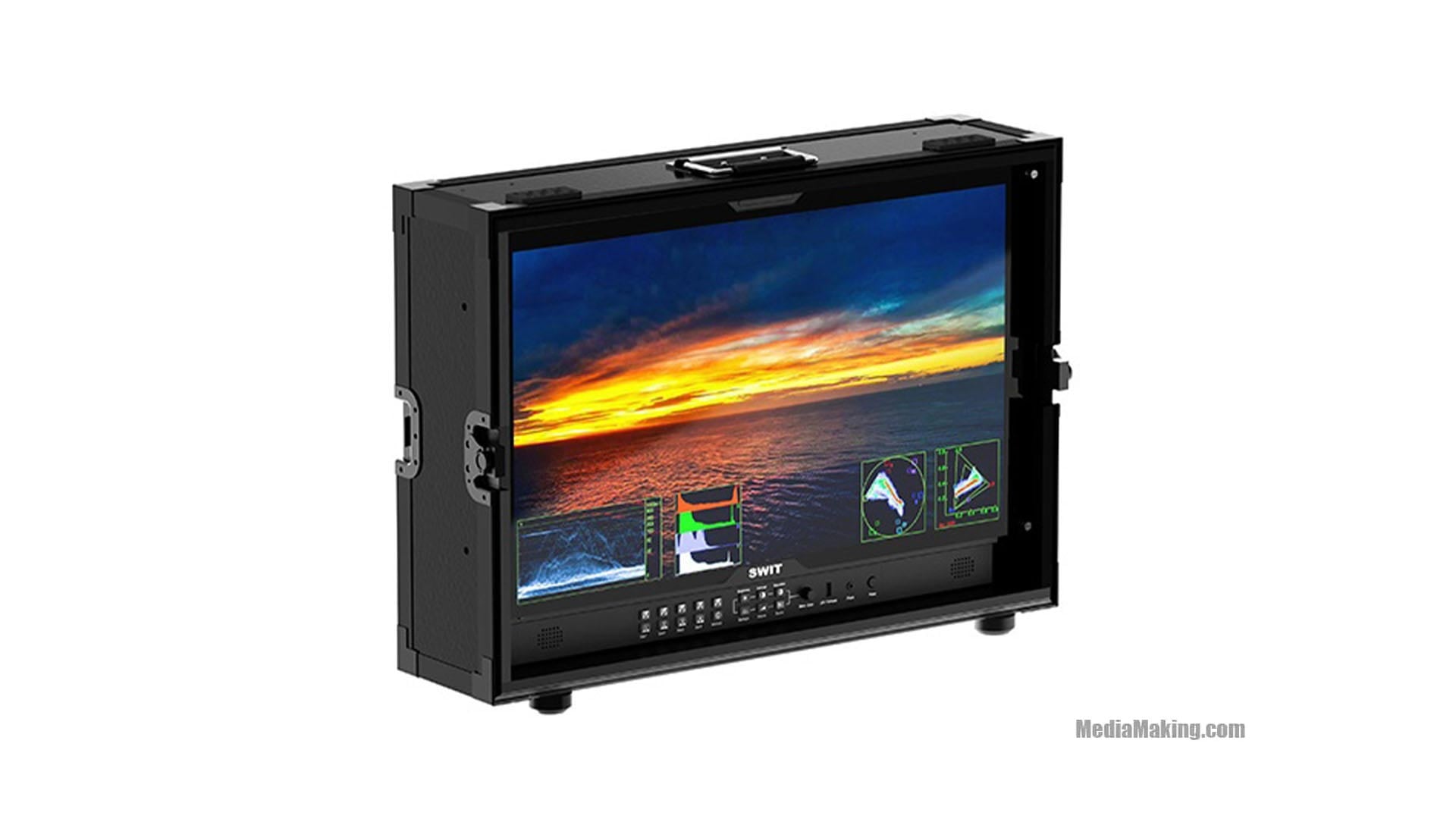

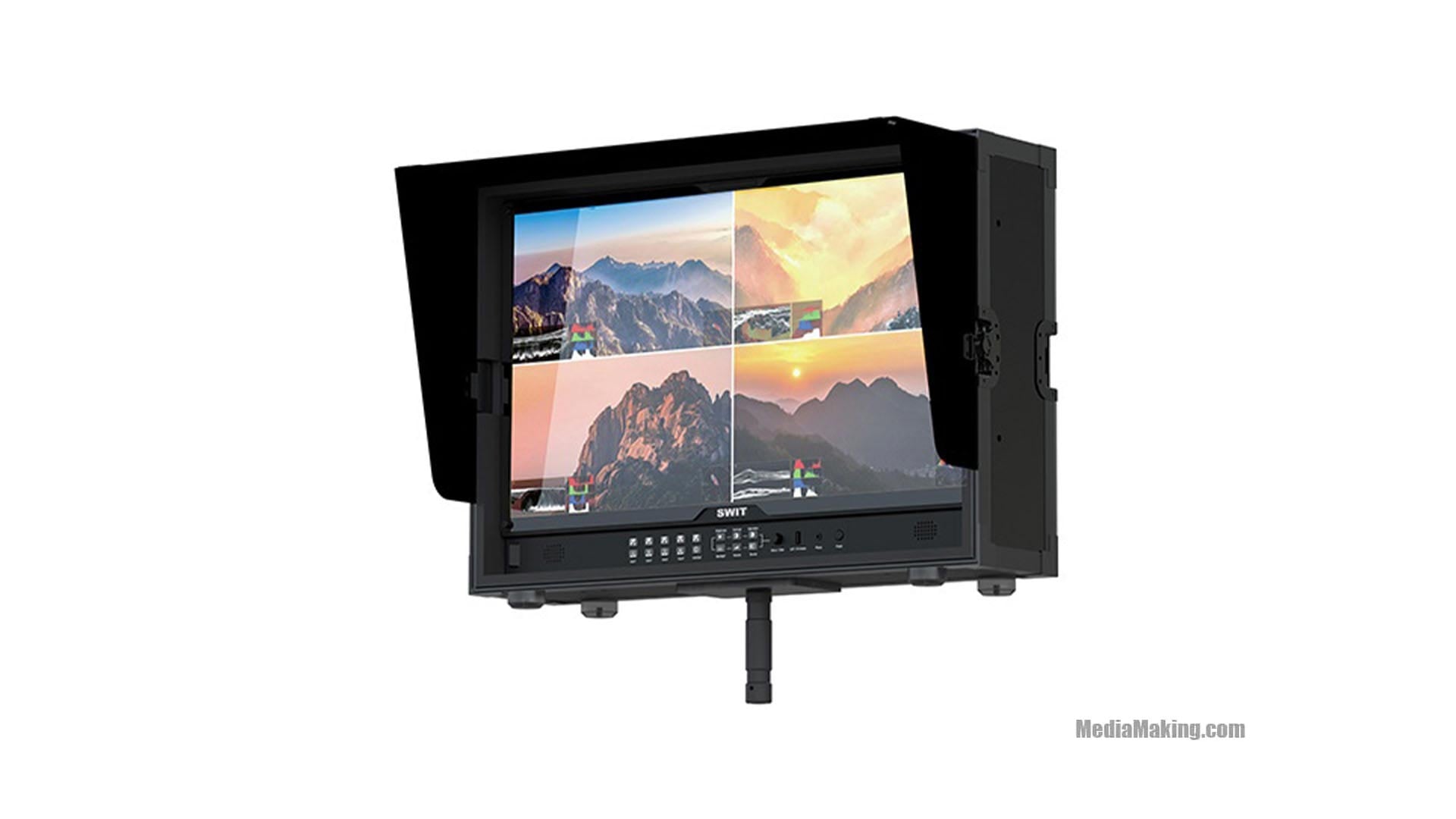

The FM-U245HDR supports 4 video inputs of mixed formats with Quadview display, or 2 inputs with Pic-by-Pic or Pic-in-Pic display. HDR/SDR gamma and colour gamut can be selected independently for each input. Supports anamorphic lens correction in 1.33x, 1.5x, 1.66x, 1.8x, 2x and mag crop modes, allowing filmmakers to correct horizontal and aspect ratio distortions in real time. The monitor is equipped with waveforms, histogram, vector scope, CIE scope, false colours, focus assist, zebra stripes and eye pattern for professional video quality monitoring assistance. It displays built-in 16-channel audio counters and allows any two channels to be selected for output via speaker or 3.5 mm headphone jack. In addition, the monitor also supports the Lissajous phase model and 5.1/7.1 surround sound models for professional audio monitoring.
It provides protection for the acrylic screen, with high transparency and anti-reaction. On the top of the housing are 2 plates for installing accessories such as the wireless video receiver, with multiple 1/4‘ and 3/8’ threads. It also features a removable stand rod, to be installed on the bottom of the case, compatible with 1-1/8‘ junior and 5/8’ baby stands, for convenient on-site lm/video production set-up.
Dimensions | 63,2 x 48 x 15,5 cm |
Screen size | 23.8″ |
Aspect ratio | 16:9 |
Resolution | 3840×2160 |
Power supply | AC 100-240V, 50/60Hz, DC 12-17V |
Consumption | 120 W |
Contrast ratio | 1000:1 |
Brightness | 1000 nit |

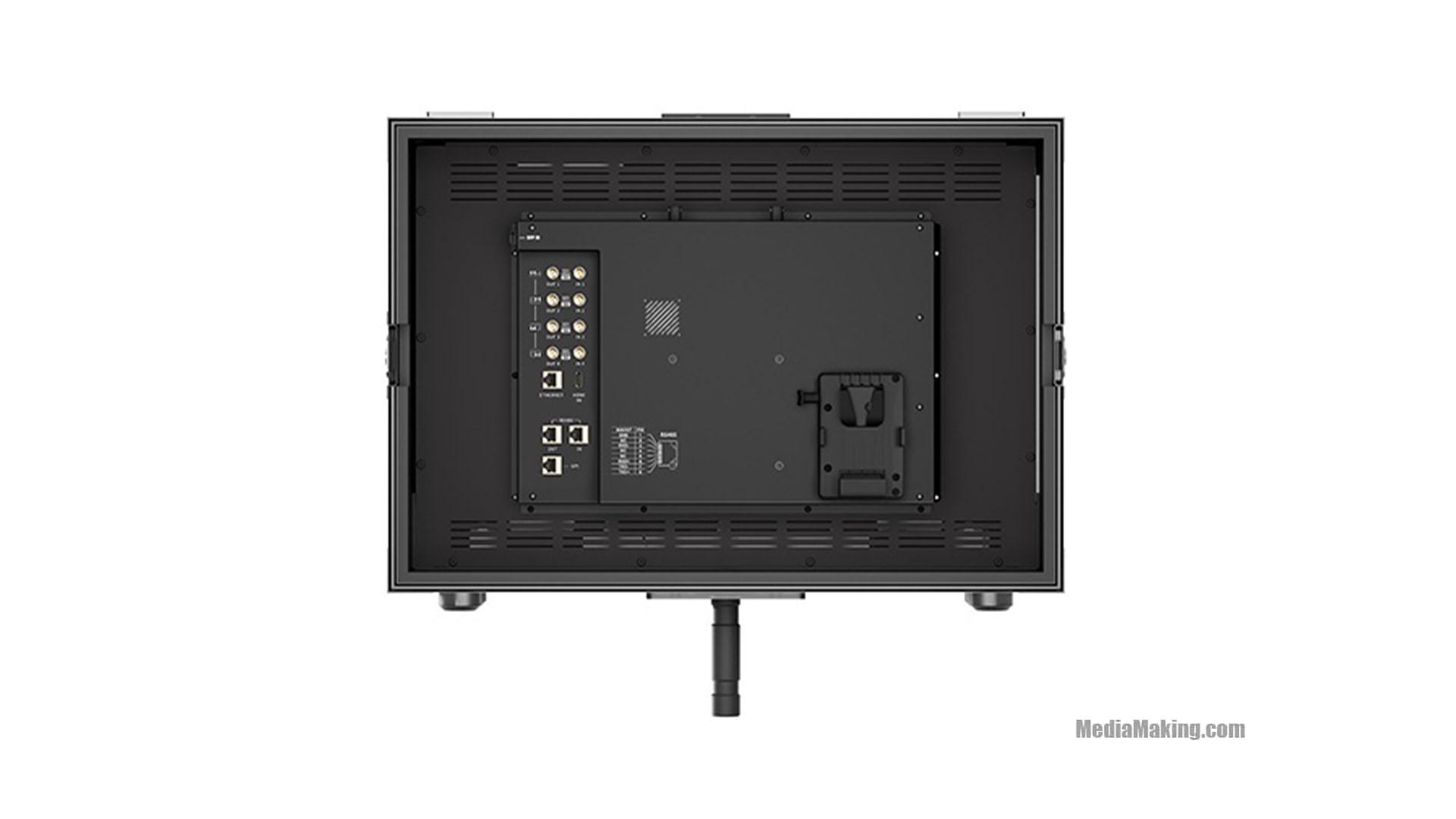

Signals inputs | 4 x BNC: 12G/6G/3G/HD/SD-SDI input 1 x HDMI: 2.0 input 1 x SFP: Fibre optic input (via optional SFP adapter) 1 x RS485: TSL 3.1/4.0 UMD Input 1 x RS485: GPI Input (Tally) 1 x RJ45: 1000M Ethernet input for IP control of the web server |
Signals outputs | 4 x BNC: 12G/6G/3G/HD/SD-SDI loop output 1 x RS485: TSL 3.1/4.0 UMD output Analogue audio: 3.5 mm headphone and speaker |
Format video | SDI 1/2/3/4:4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) Quad Link 4K (ogni canale):048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) Quad Link 8K (ogni canale):4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) HDMI:4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) |
Operating temperature | 0° – +50° C |
Storage temperature | -15° – +60° C |
