Weight | 14 kg |
Dimensions | 57 × 40,5 × 26 cm |
Voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Display type | QD-LED |
Display resolution | 1920×1080 |
Brightness | 1000nits |
Input | 1 x BNC 12G/6G/3G/HD/SD-SDI input 3 x BNC 3G/HD/SD-SDI input 1 x HDMI HDMI 2.0 input 1 x RS485 TSL 3.1/4.0 UMD input 1 x RS485 GPI (Tally) input 1 x RJ45 1000M Ethernet input for web server IP control |
Output | 1 x BNC 12G/6G/3G/HD/SD-SDI loop output 1 x BNC 3G/HD/SD-SDI loop output 1 x RS485 TSL 3.1/4.0 UMD output 1 x Headphone and 3.5 mm analogue audio speaker |
Video format | SDI 1 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) SDI 2/3/4 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) Quad Link 4K 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) |
Color | Black |

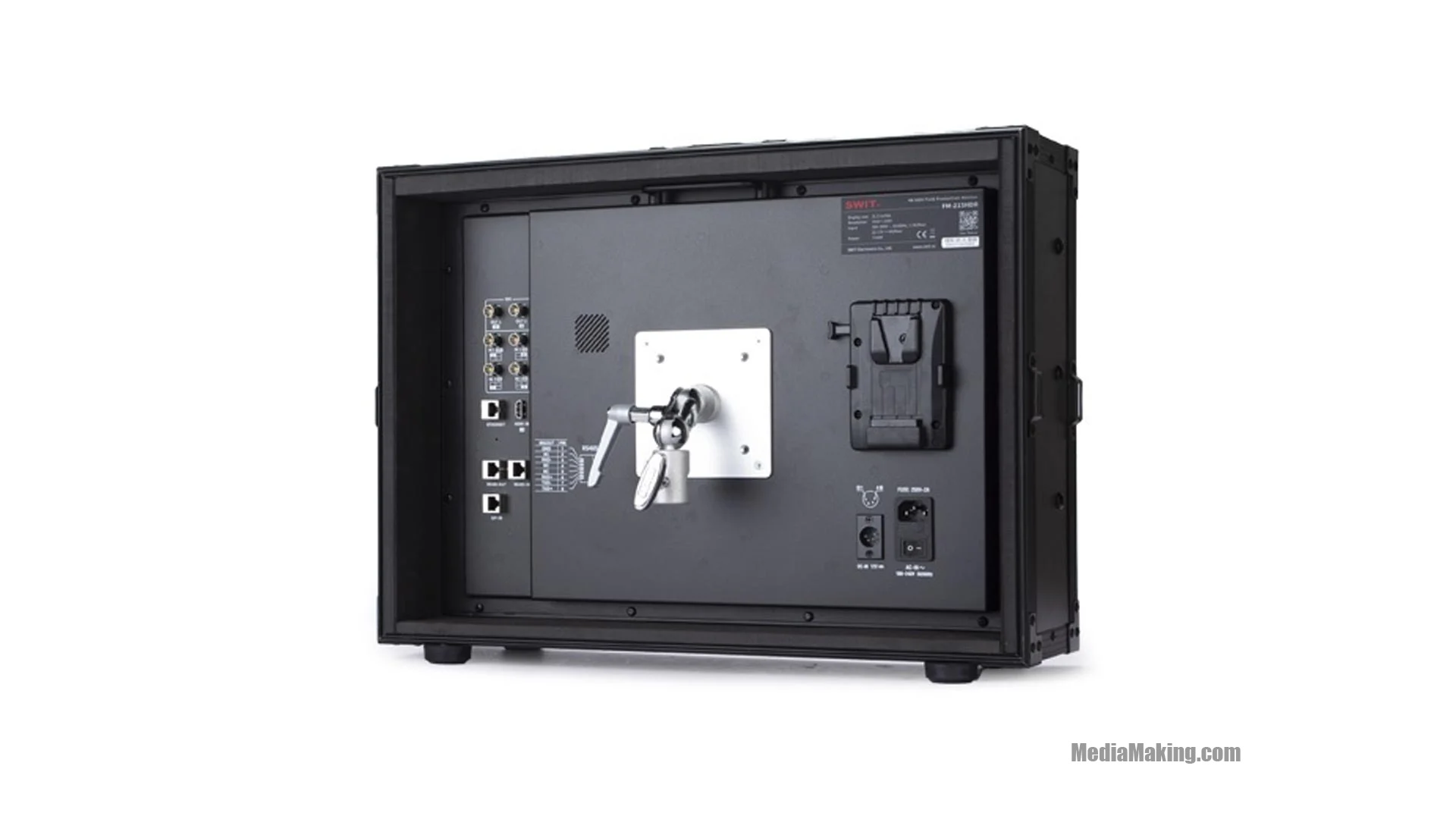

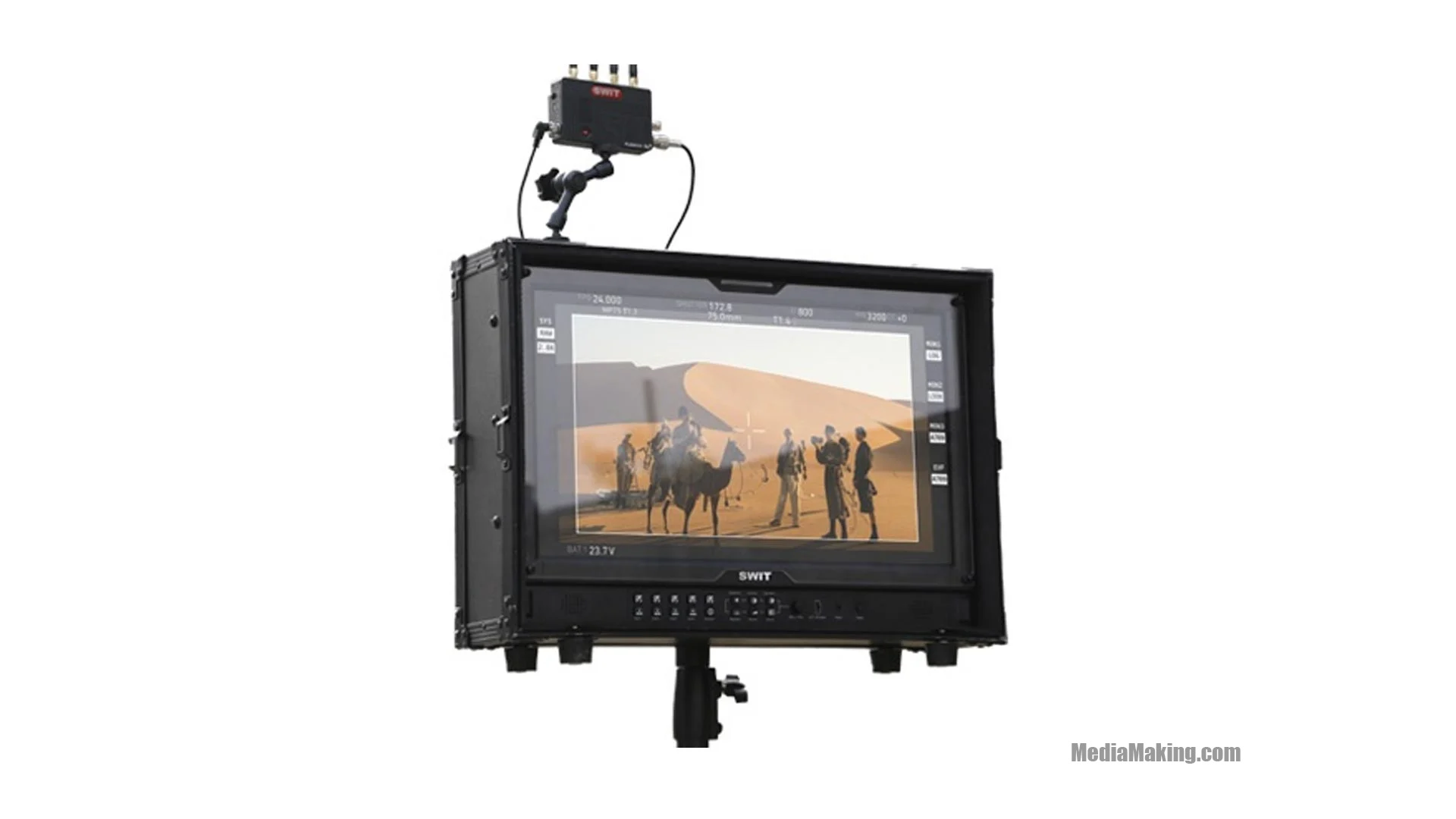

Swit FM-215HDR QD-LED 12G-SDI HDR Monitor
Swit FM-215HDR QD-LED 12G-SDI HDR Monitor
The Swit FM-215HDR QD-LED 12G-SDI HDR field monitor features an advanced Quantum Dot LED (QD-LED) panel with high-brightness 1000-nit backlight, displayable in outdoor sunlight, and capable of supporting PQ/HLG/S-log3 HDR monitoring. The FM-215HDR supports several 4K inputs, including: 12G-SDI 4K in and out, 4× 3G-SDI Quadlink 4K input, HDMI 2.0 4K input. It supports 4 video inputs of mixed formats in quadrature, or 2 inputs in Pic-by-Pic or Pic-in-Pic display and 2 inputs in portrait (cropped) display mode. HDR/SDR and colour gamut can be selected independently for each input. H/V Multi-platform livestreaming display 1× input source to simultaneously display regular horizontal and cropped vertical display, for multi-platform livestreaming productions.
Specifications
