For uninterrupted 4K / 60p11 shooting, FX3 uses an innovative heat dissipation system. Its placement, airflow structure and quiet fan optimize cooling even during prolonged shooting.

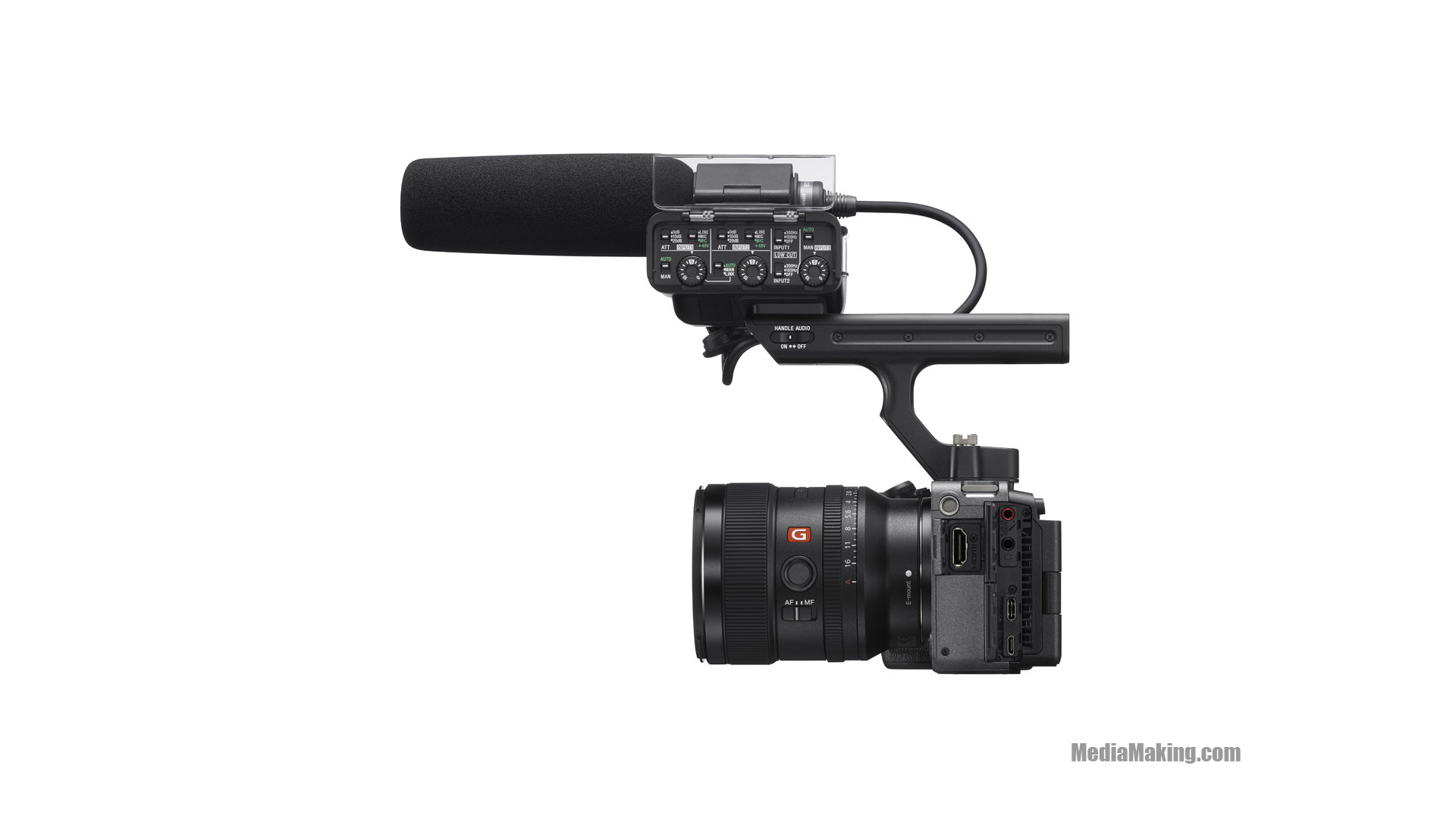

In addition to the built-in microphone, the full-size XLR connectors on the handle allow you to connect several professional microphones externally through a digital audio interface via Multi-Interface Shoe (MI). You can choose from three recording formats, including 4-channel 24-bit. Digital audio recording is also possible by connecting a digital microphone such as the ECM-B1M.
Weight | About 0,64 kg (body only) 0,71 kg (with battery and memory card |
Dimensions (W x D x D) | 129,7 mm x 77,8 mm x 84,5 mm (only body) |
Consumption | [Video]: Approx.7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), [Photo]: Approx.3.4W (with FE 28-70mm F3.5-5.6 OSS lens attached ) |
Operating temperature | From 0° C to +40° C |
Storage temperature | From -20 to +55° C |
Battery operating time | Approx. 95 min (actual recording, CIPA standard) 1, Approx. 135 min (continuous recording, CIPA standard), Approx. 580 shots (photo, CIPA standard) |
Recording format (Video) | [XAVC HS 4K] XAVC HS 4K 59,94p / 50p 200 Mbps 4:2:2 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 59,94p / 50p 150 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 59,94p / 50p / 23,98p 100 Mbps 4:2:2 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 59,94p / 50p 75 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 59,94p / 50p 45 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 23,98p 100 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 23,98p 50Mbps 4:2:2 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 23,98p 50 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 23,98p 30 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 119,88p / 100p 280 Mbps 4:2:2 10 bit MPEG-H HEVC / H.265, XAVC HS 4K 119,88p / 100p 200 Mbps 4:2:0 10 bit MPEG-H HEVC / H.265
[XAVC S 4K] XAVC S 4K 59,94p / 50p 200 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S 4K 59,94p / 50p 150 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S 4K 29,97p / 25p 140 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S 4K 23,98p 100 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S 4K 29,97p / 25p / 23,98p 100 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S 4K 29,97p / 25p / 23,98p 60 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S 4K 119,88p / 100p 280 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S 4K 119,88p / 100p 200 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59,94p / 50p / 29,97p / 25p / 23,98p 50 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S HD 59,94p / 50p / 29,97p / 25p / 23,98p 50 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S HD 59,94p / 50p 25 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC HD 29,97p / 25p 16 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S HD 119,88p / 100p 100 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264, XAVC S HD 119,88p / 100p 60 Mbps 4:2:0 8 bit MPEG-4 AVC / H.264 [XAVC S-I 4K] XAVC S-I 4K 59,94p 600 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I 4K 29,97p 300 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I 4K 23,98p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59,94p 222 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I HD 29,97p 111 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I HD 23,98p 89 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264 |
Recording format (Audio) | LPCM 2ch (48 kHz 16 bit), LPCM 2ch (48 kHz 24 bit), LPCM 4ch (48 kHz 24 bit), MPEG-4 AAC-LC 2ch |
Recording frame rate |
[XAVC Intra] XAVC-I QFHD mode: 3840 x 2160 / 59.94p, 50p, 29.97p, 23.98p, 25p XAVC-I HD modes: 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p [XAVC Long] XAVC-L QFHD mode: 3840 x 2160 / 59.94p, 50p, 29.97p, 23.98p, 25p XAVC-L HD 50 mode: 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p XAVC-L HD 35 mode: 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p XAVC-L HD 25 mode: 1920 x 1080 / 59.94i, 50i [MPEG-2 Long GOP] MPEG HD422 mode: 1920 x 1080 / 59.94i, 50i, 29.97p, 23.98p, 25pXAVC HS [XAVC HS 4K] 3.840×2.160/119,88p, 100p, 59,94p, 50p, 23,98p XAVC S [XAVC S 4K] 3840 x 2160/119,88p,100p, 59,94p, 50p, 29,97p, 25p, 23,98p, [XAVC S-I HD] 1920 x 1080/59,94p, 50p, 29,97p, 25p, 23,98p XAVC S-I [XAVC S-I 4K] 3.840×2.160/59,94p, 50p, 29,97p, 25p, 23,98p, [XAVC S-I H |
Recording / playback duration | XAVC HS [XAVC HS 4K] 59,94p/50p 200M Se si usa CEA-G160T (160 GB) circa 85 minuti, Se si usa CEA-G80T (80 GB) circa 40 minuti, 59,94p / 50p 150M Se si usa CEA-G160T (160 GB) circa 110 minuti, Se si usa CEA-G80T (80 GB) circa 55 minuti, 59,94p / 50p 100M Se si usa CEA-G160T (160 GB) circa 170 minuti, Se si usa CEA-G80T (80 GB) circa 80 minuti, 59,94p / 50p 75M Se si usa CEA-G160T (160 GB) circa 220 minuti, Se si usa CEA-G80T (80 GB) circa 100 minuti, 59,94p / 50p 45M Se si usa CEA-G160T (160 GB) circa 340 minuti, Se si usa CEA-G80T (80 GB) circa 160 minuti XAVC S [XAVC S 4K] 59,94p/50p 200M Se si usa CEA-G160T (160 GB) circa 85 minuti, Se si usa CEA-G80T (80 GB) circa 40 minuti, 59,94p / 50p 150M Se si usa CEA-G160T (160 GB) circa 110 minuti, Se si usa CEA-G80T (80 GB) circa 55 minuti, [XAVC S HD] 59,94p / 50p 50M Se si usa CEA-G160T (160 GB) circa 310 minuti, Se si usa CEA-G80T (80 GB) circa 150 minuti, 59,94p / 50p 25M Se si usa CEA-G160T (160 GB) circa 550 minuti, Se si usa CEA-G80T (80 GB) circa 390 minuti XAVC S-I [XAVC S-I 4K] XAVC S-I 4K 59.94p / 50p Se si usa CEA-G160T (160 GB) circa 25 minuti, Se si usa CEA-G80T (80 GB) circa 10 minuti, [XAVC S-I HD] 59.94p / 50p Se si usa CEA-G160T (160 GB) circa 75 minuti, Se si usa CEA-G80T (80 GB) circa 35 minuti |
Sensor | 35mm (35.6 x 23.8mm) full-frame Exmor® CMOS sensor |
Actual elements of the image | Approx.10.2 megapixels (effective) for video, Approx.12.1 megapixels (effective) for photos, Approx.12.9 megapixels (total) |
Shutter speed | Video: 1 / 8,000 to 1/4 (in 1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode), Photo: 1 / 8,000 to 30 seconds, prolonged laying |
White balance | Auto / Day / Shade / Cloudy / Bulb Light / Fluorescent Lamp Light / Flash / Underwater / Color Temperature (2,500 to 9,900K) & Color Filter / Custom |
“Slow Motion” and “Quick Motion” function |
AVC HS XAVC HS 4K: [Modalità NTSC] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [modalità PAL] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps XAVC S XAVC S 4K: [Modalità NTSC] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [modalità PAL] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [Modalità NTSC] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps2, [modalità PAL] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps2 XAVC S-I XAVC S-I 4K: [Modalità NTSC] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [modalità PAL] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [Modalità NTSC] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps2, [modalità PAL] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps2 |

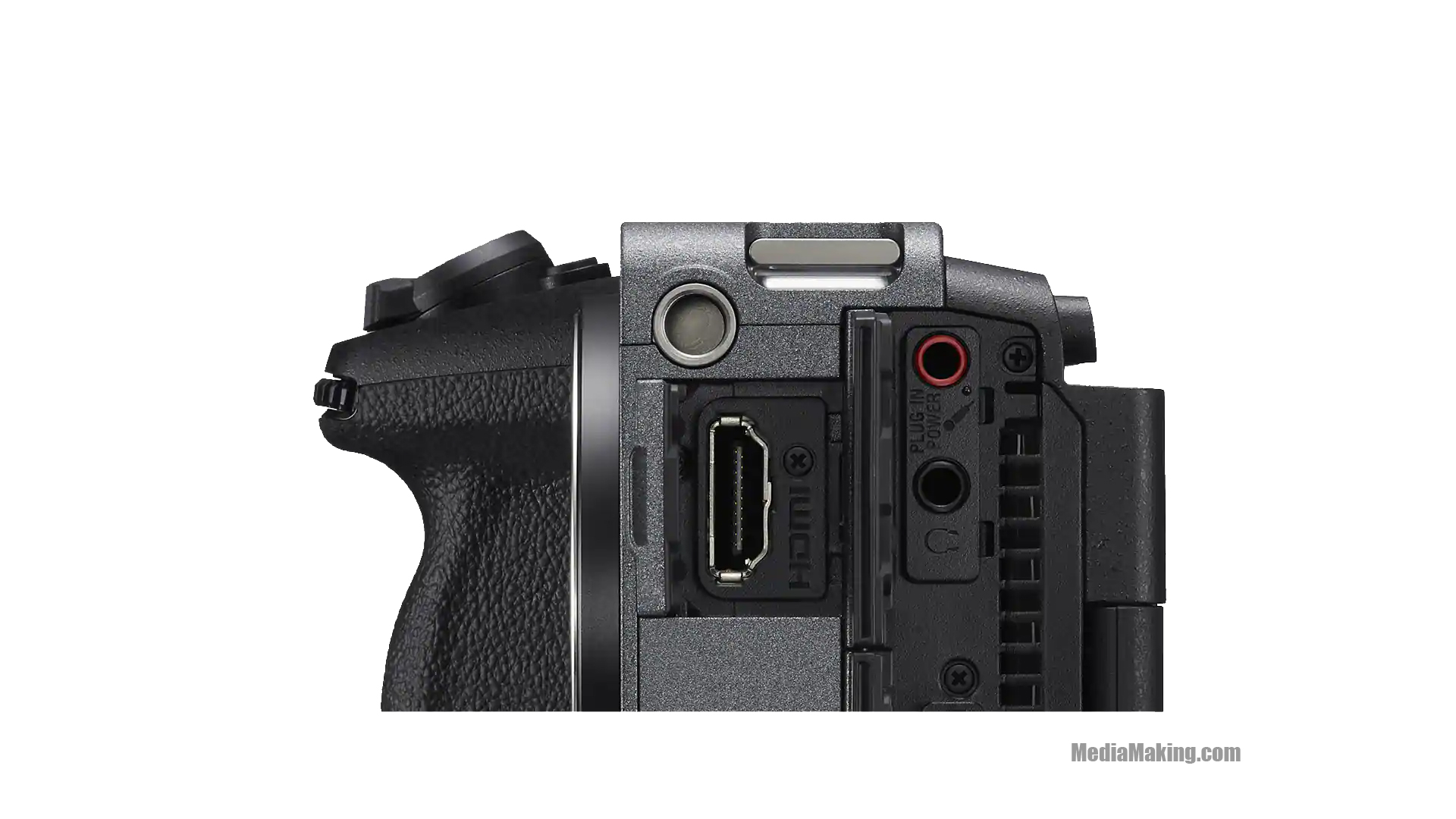

HDMI Output | HDMI input (type A), YCbCr 4: 2: 2 10 bit / RGB 8 bit |
Speaker output | Integrated, monaural |
Headphones output | Mini jack stereo (x1) |
USB | USB Type-C (x1, SuperSpeed USB 5 Gbps (USB 3.2) compatible), Multi / Micro USB (x1) |
