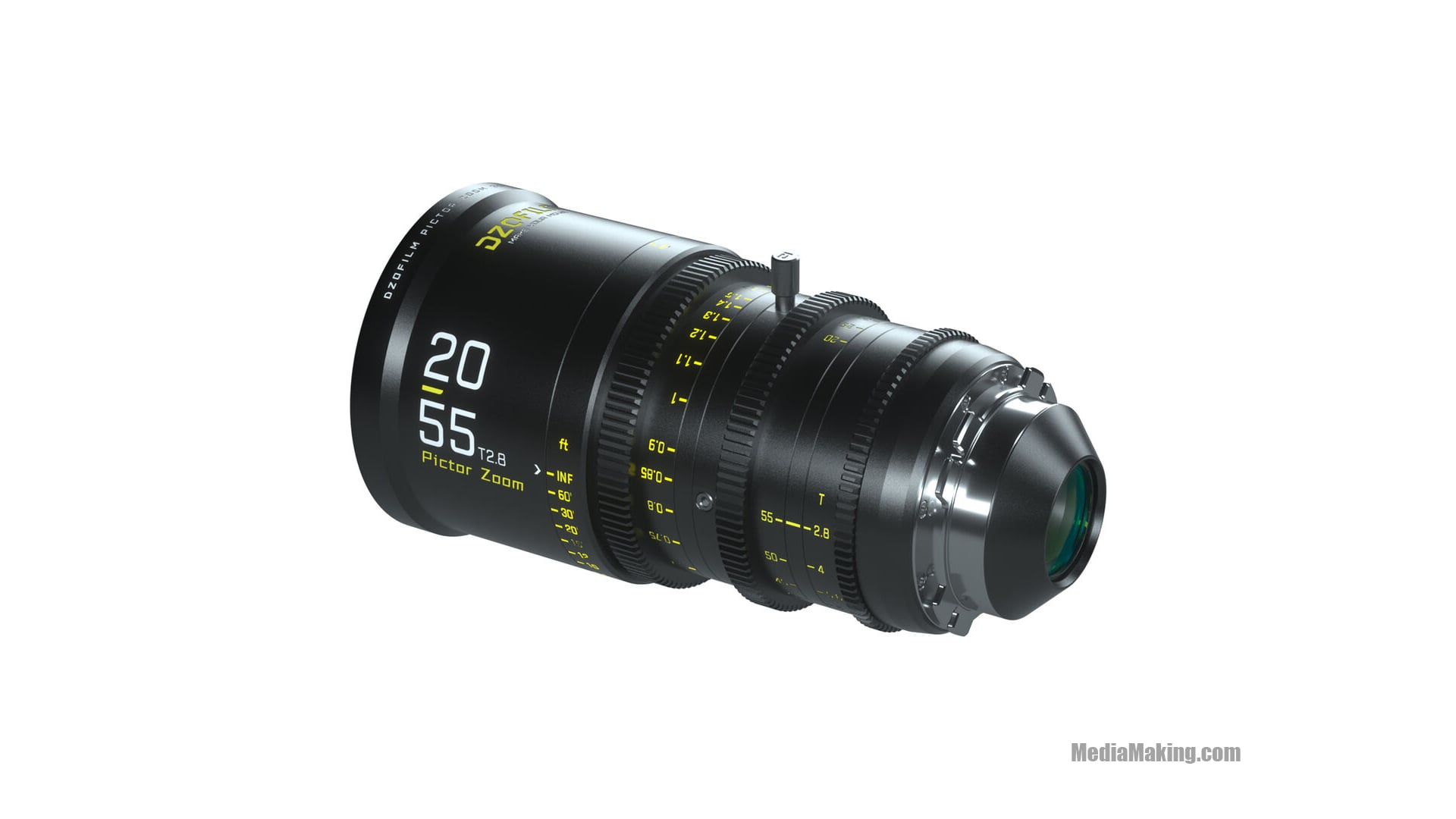

A parfocal cine lens, the DZO Pictor 20 to 55mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes a Canon EF mount.
The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens’s natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera’s lens port.
Weight | 1,52 kg |
Length | 16,4 cm |
Focal length | 20-55mm |
Mount | ARRI PL, EF Canon |
Format | Super35/APS-C |
Filter diameter | 86,0 mm |
Focus | Manual |
Zoom ratio | 2.75x |
T-stop | T2.8 – T22 |
