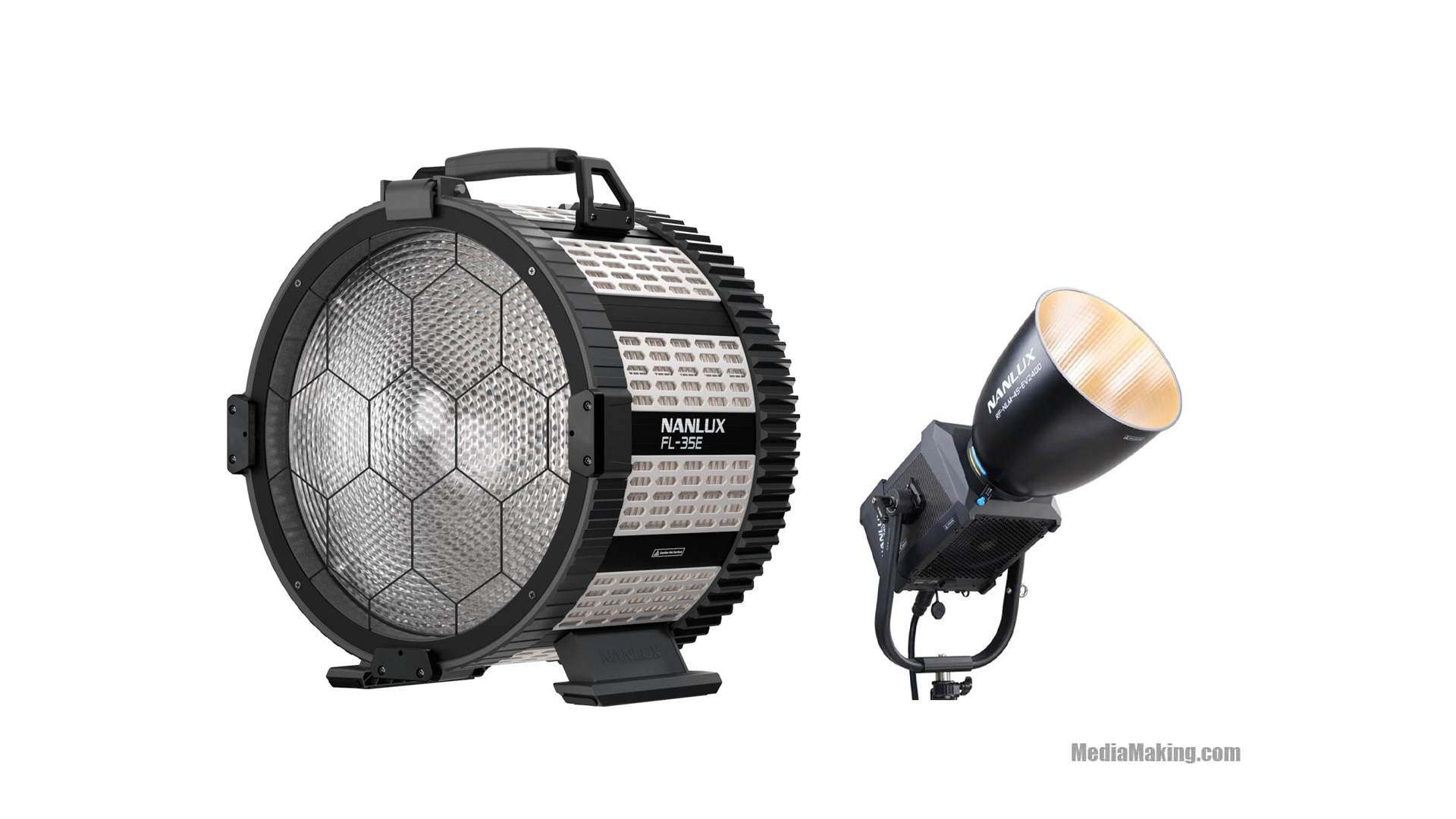

Fresnel lens with Nanlux Evoke 2400B LED bicolor light
Fresnel lens for Nanlux Evoke 2400B LED bicolor light is a state-of-the-art NL-mount optic with remote control and zoom from 15° to 46°. It integrates seamlessly with Evoke 2400B, providing an outstanding illumination of 75700lux@3m, 5600K, 15°. In addition to superior optical performance and precise beam angle control, the FL-35E features a precise motorized adjustment function powered by the electronic contacts of the NL mount of Nanlux’s Evoke 2400B. The zoom range can be controlled by multiple methods for a smarter and more efficient workflow for productions. The FL-35E can be controlled either from the button on the lens itself, or from the lamphead, NANLINK APP, wired controller, or DMX console.
The Nanlux spot light Evoke 2400B two-color LED has a power rating of only 2400W and offers exceptional efficiency with a light output superior to 4KW HMIs or 10KW tungsten. Compared with conventional light sources, Evoke 2400B requires no preheating or cooling time, is flicker-free, with 0.0%-100.0% dimming and adjustable color temperature for greater flexibility. Changes during shooting sessions are now easy and time-saving.
Building on the outstanding protection features of the Evoke 2400B, the FL-35E boasts an IP55 rating, providing strong dust and water resistance. This feature makes the Evoke 2400B and FL-35E combination suitable for use in harsh environments, providing constant and stable lighting for all-day outdoor shooting or environmentally difficult production scenes. It has CE, UKCA, RoHs and IP55 certifications.
The Nanlux spot light Evoke 2400B two-color LED has a power rating of only 2400W and offers exceptional efficiency with a light output superior to 4KW HMIs or 10KW tungsten. Compared with conventional light sources, Evoke 2400B requires no preheating or cooling time, is flicker-free, with 0.0%-100.0% dimming and adjustable color temperature for greater flexibility. Changes during shooting sessions are now easy and time-saving.
Building on the outstanding protection features of the Evoke 2400B, the FL-35E boasts an IP55 rating, providing strong dust and water resistance. This feature makes the Evoke 2400B and FL-35E combination suitable for use in harsh environments, providing constant and stable lighting for all-day outdoor shooting or environmentally difficult production scenes. It has CE, UKCA, RoHs and IP55 certifications.
Fresnel lens specifications
| Weight | Lens: 10 kg Door: 2.3 kg Trolley: 6 kg |
| Dimensions | Lens: 49 × 33 × 43 cm Door: 52.5 × 3.9 × 39.9 cm Trolley: 60 × 40 × 52 cm |
| Mount | NL mount lighting fixtures that with electronic contacts |
| Beam angle | 15° ~ 46° |
| Illumination | 5600K (15°): @ 3m 75700 lux / 7033 fc; @ 5m 25510 lux / 2370 fc; @ 7m 13070 lux / 1214 fc; @ 9m 7709 lux / 716 fc 5600K (30°): @ 3m 32800 lux / 3047 fc; @ 5m 12380 lux / 1150 fc; @ 7m 6586 lux / 612 fc; @ 9m 4151 lux / 386 fc 5600K (46°): @ 3m 17750 lux / 1649 fc; @ 5m 6745 lux / 627 fc; @ 7m 3635 lux / 338 fc; @ 9m 2273 lux / 211 fc |
| IP rating | IP55 |
Nanlux LED spot light Evoke 2400B bicolor specifications
| Weight | Spotlight (without protective COB cap): 15 kg Power supply: 11,58 kg |
| Dimensions | Spotlight (without protective COB cap): 42,7 x 31,6 x 26,5 cm Power supply: 38,9 x 17,2 x 26,8 cm |
| AC input voltage | DC48V/26A × 2, AC100-240V 50/60Hz 26A Max |
| Rated power | 2400 W |
| CRI | 96/td> |
| TLCI | 97 |
| TM-30Rf | 95 |
| TM-30Rg | 100 |
| Color temperature | 2700 – 6500 K（ G/M ± 80） |
| Control | On-board, Wire Control, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN |
| Certifications | BIS, CE, FCC-ID, RoHS, UKCA, KCC, IP55 |
| Dimming | 0-100% sepless 0.1% from 0-100% |
