Video Input Connectors | 4 x BNC (12G-SDI) |
Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
Audio Input Connectors | None |
Embedded Audio Input | SDI: 16-Channel (per Input) |

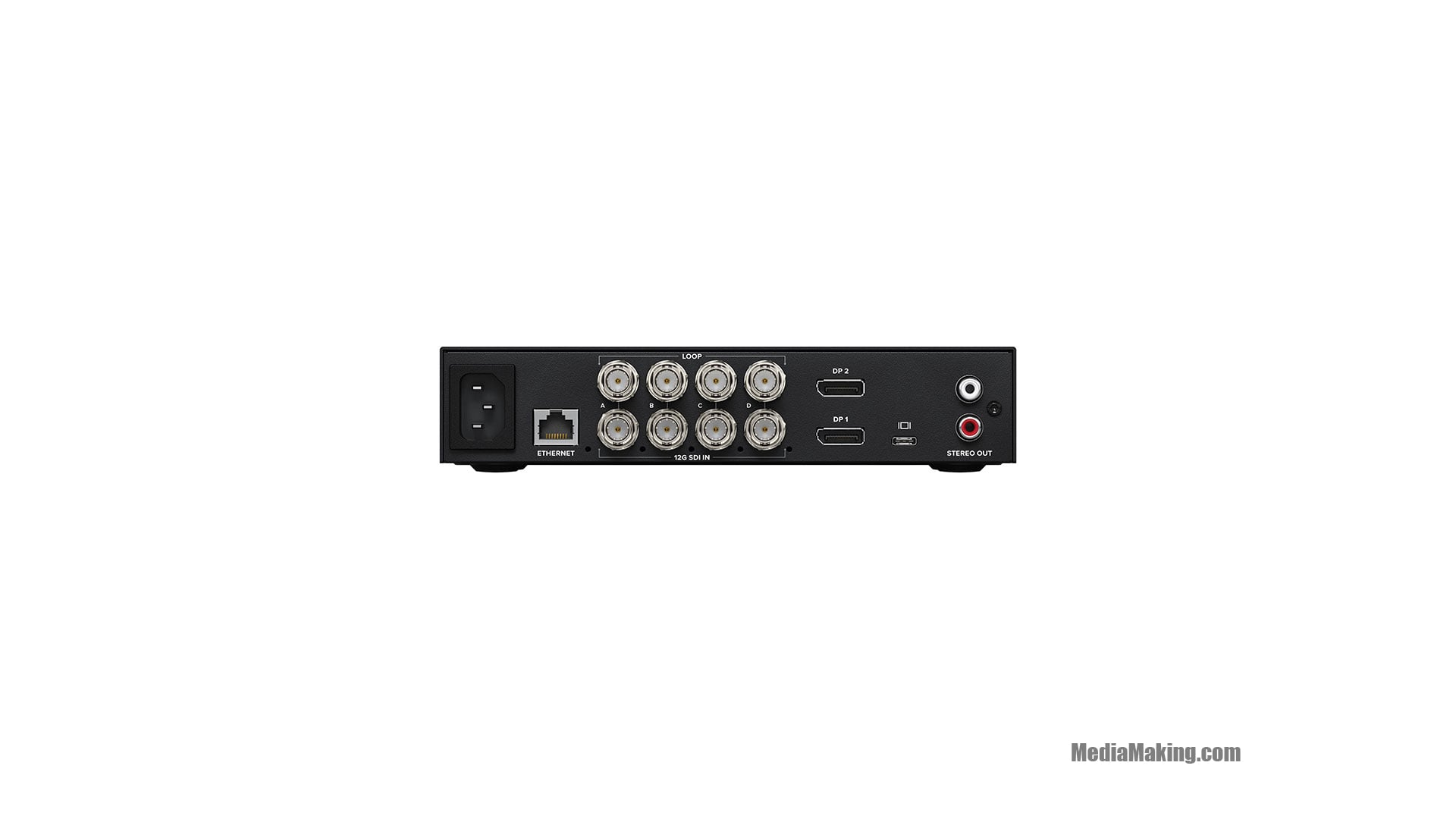

Video Output Connectors | 4 x BNC (12G-SDI) (Loop Output) 2 x DisplayPort (DisplayPort 1.4) 1 x USB Type-C (DisplayPort 1.4) |
Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
Audio Output Connectors | 2 x RCA Analog |
Embedded Audio Output | SDI: 16-Channel (per Output) |
Dimensioni | 21 x 4,39 x 17,6 cm |
Weight | 1,18 kg |
Teranex Mini SDI to DisplayPort 8K HDR Converter
Teranex Mini SDI to DisplayPort 8K HDR Converter

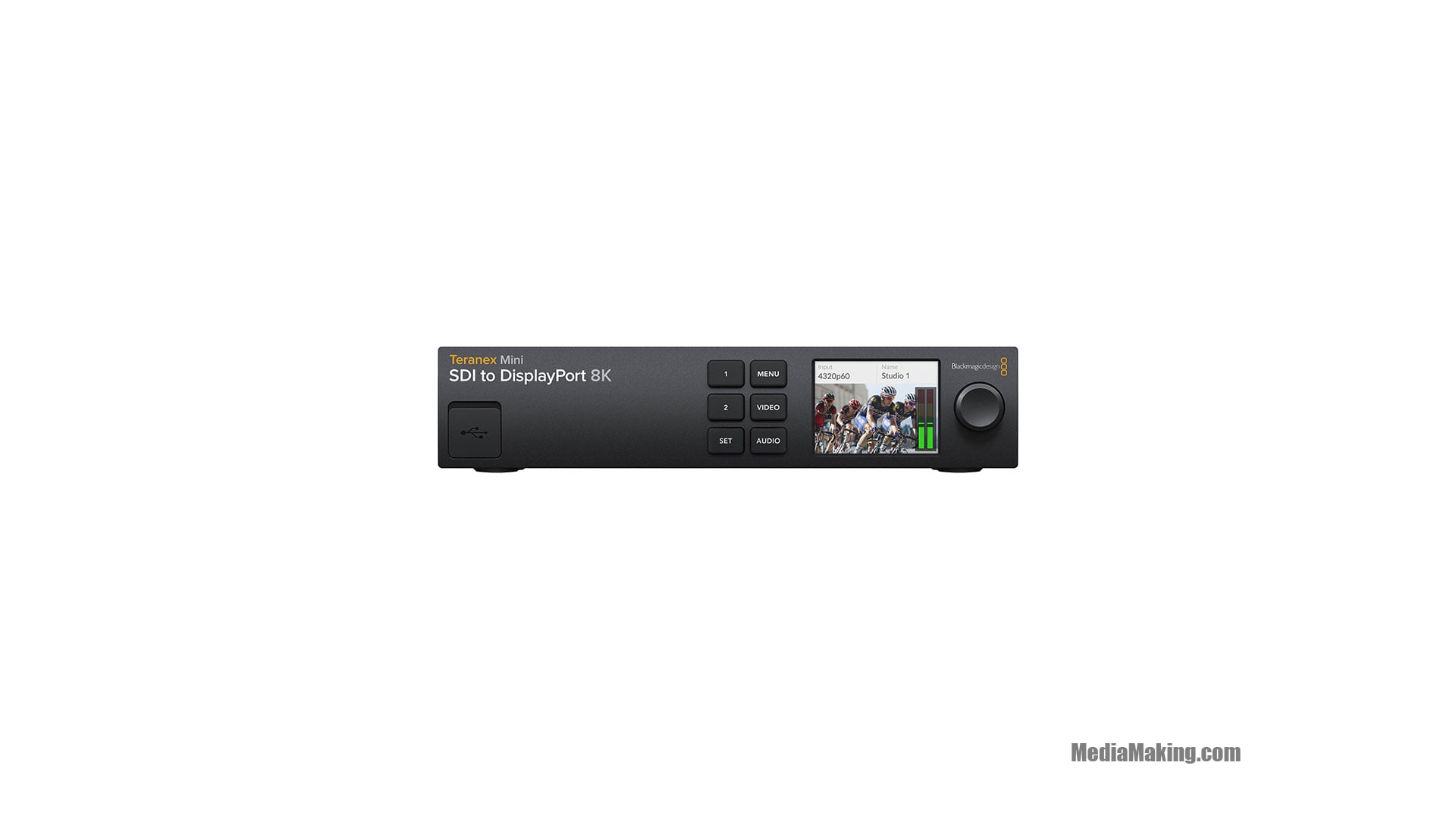

The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter is an advanced 8K monitoring solution for large screen televisions, video projectors and DisplayPort monitors. Unlike basic converters, Teranex Mini 8K HDR can use third party calibration probes to accurately align connected displays for precise color. There are 2 on‑screen scopes that can be selected between WFM, Parade, Vector and Histogram. Teranex Mini SDI to HDMI 8K HDR is perfect for film studios and broadcasters who need professional but affordable color accurate monitoring, while Teranex Mini SDI to DisplayPort 8K HDR also works with the latest 8K DisplayPort monitors. You also get an elegant design with color LCD for monitoring and control of settings!
Specifications
