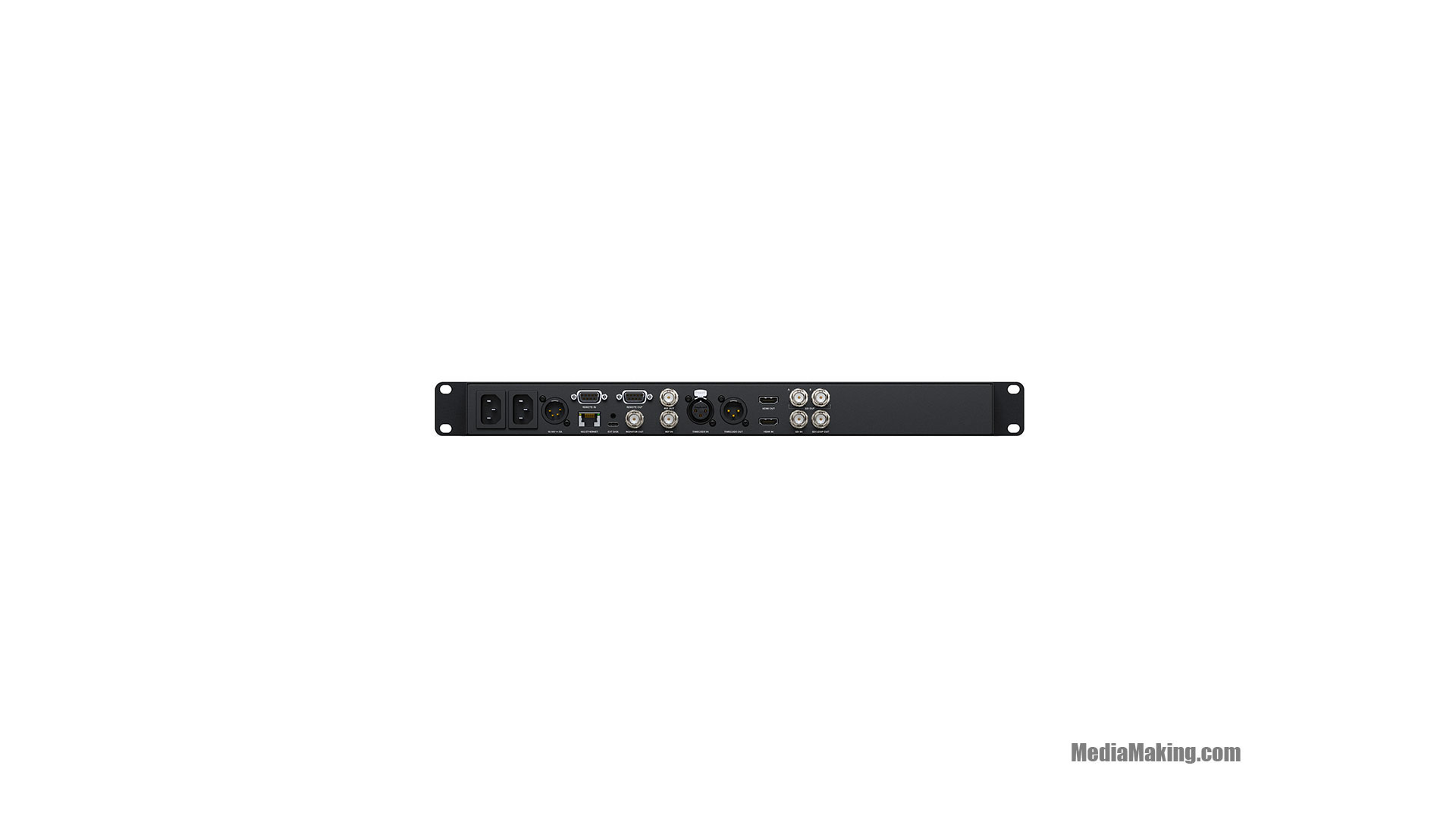

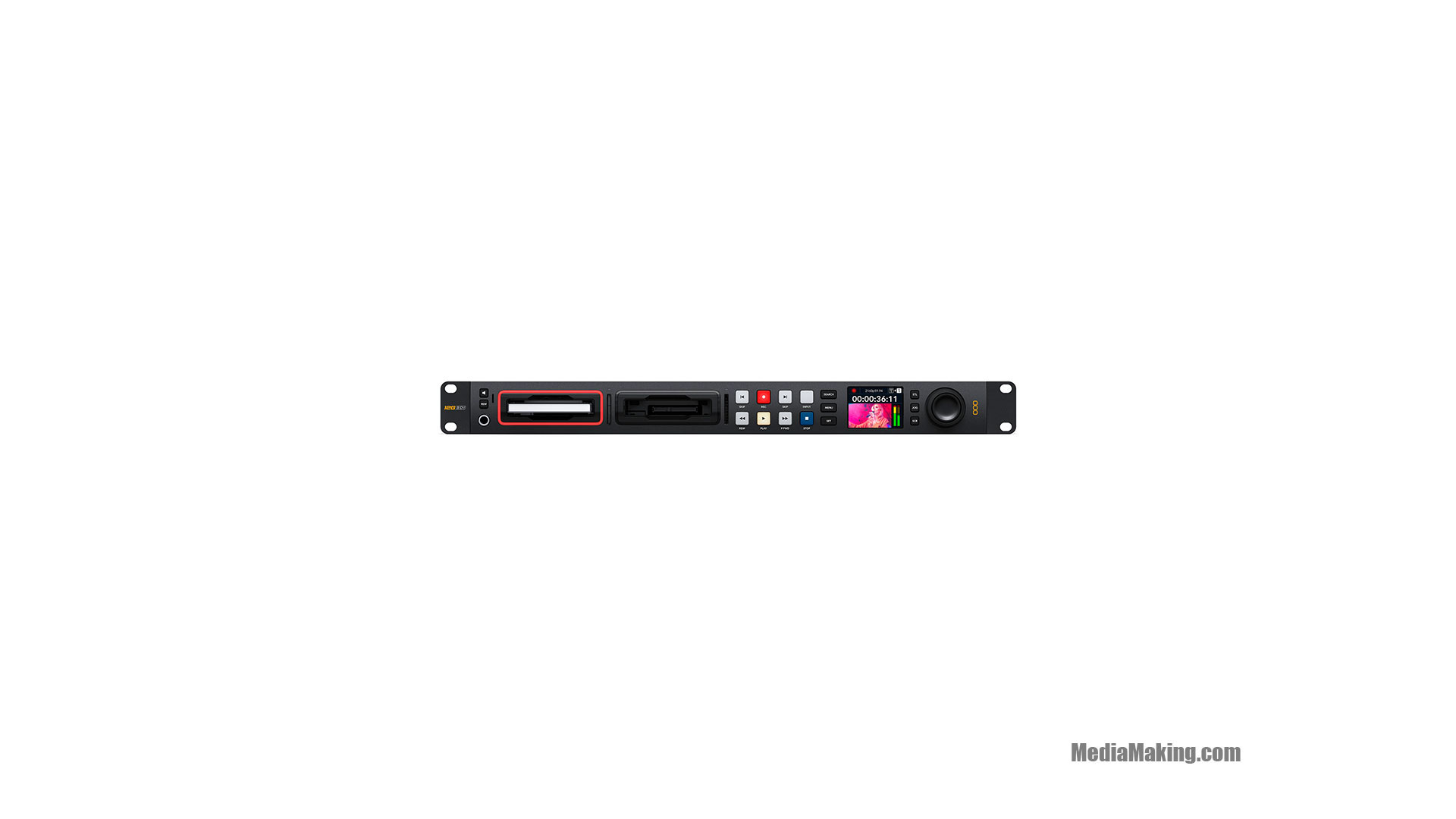

Blackmagic Design HyperDeck Studio 4K Pro
Blackmagic Design HyperDeck Studio 4K Pro
Blackmagic Design HyperDeck Studio 4K Pro permette di registrare file video di qualità broadcast direttamente su schede SD e supporti SSD! I nuovi HyperDeck Studio riprogettati presentano un design moderno con più codec e un raffreddamento più silenzioso. Tutti i modelli ora supportano la registrazione su file H.264, Apple ProRes o DNxHD con audio PCM o AAC. Inoltre il modello 4K aggiunge il supporto per i file H.265! Quando hai finito di registrare, i supporti possono essere montati su qualsiasi computer per accedere ai file utilizzando il tuo software video preferito. Per la registrazione ISO, ci sono anche generatori di timecode e di riferimento integrati per sincronizzare più unità! Tutte queste potenti caratteristiche rendono HyperDeck Studio perfetto per la trasmissione, la produzione dal vivo o la segnaletica digitale multischermo!
Specifications
Weight 2,5 kg
Dimensions 48,3 x 23,6 x 4,4 cm
Video input 1 x BNC 12G-SDI
1 x HDMI 2.0
Video output 1 x BNC SDI Loop-Through
2 x BNC 12G-SDI
1 x SDI Monitor Output
1 x HDMI 2.0
Embedded Audio Input:
16 x Channels SDI
16 x Channels HDMI

Output:
8 x Channels SDI
8 x Channels HDMI

SSD Interface 2 x 2.5″ SATA 3 Gb/s
Format support DCI/UHD 4K 2160p: 30/29,97/25/24/23,98
2K 1440p: 30/29,97/25/24/23,98
1080p: 60/50/30/29,97/25/24/23,98
1080PsF: 30/29,97/25/24/23,98
1080i: 60/59,94/50
720p: 60/59,94/50
NTSC/PAL
525i 59.94
625i 50
480p60 e 576p50 only HDMI
Supported codecs ProRes HQ QuickTime
ProRes 422 QuickTime
ProRes LT QuickTime
ProRes Proxy QuickTime for all Formats up to 2160p30

Playback Only of:
ProRes 4444 QuickTime fino a 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF per formati HD 720p e 1080p fino a 60 fps
DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF per formati 2K DCI e 2160p fino a 30 fps
H.265 SDI 4:2:2 10-Bit, H.265 Alto 4:2:0 10-Bit, H.265 Medio 4:2:0 10-Bit, H.265 Basso 4:2:0 10- Bit per tutti i formati 2160p fino a 60 fps
H.264 SDI 4:2:2 10-Bit, H.264 Alto 4:2:0 8-Bit, H.264 Medio 4:2:0 8-Bit, H.264 Basso 4:2:0 8- Bit per tutti i formati progressivi fino a 1080p60
