Weight | 46 kg |
AC input power | 100 – 240 V AC |
Maximum power consumption | 5000 W |
G/M adjusting | ±80 |
CRI | 97 |
TLCI | 98 |
Output | 22,210 lux @ 5m |
Color temperature | 2700k – 5600K |
Dimming | 0,0 % – 0,1% |
Controls | On board, wired controller, Nanlink App, remote control, DMX/RDM, LumenRadio CRMX, Art-Net/sACN |
Effects | 12 built-in special effects with customizable parameters |
Fan mode | Smart, Full Speed, Low Speed, Pause, Off |

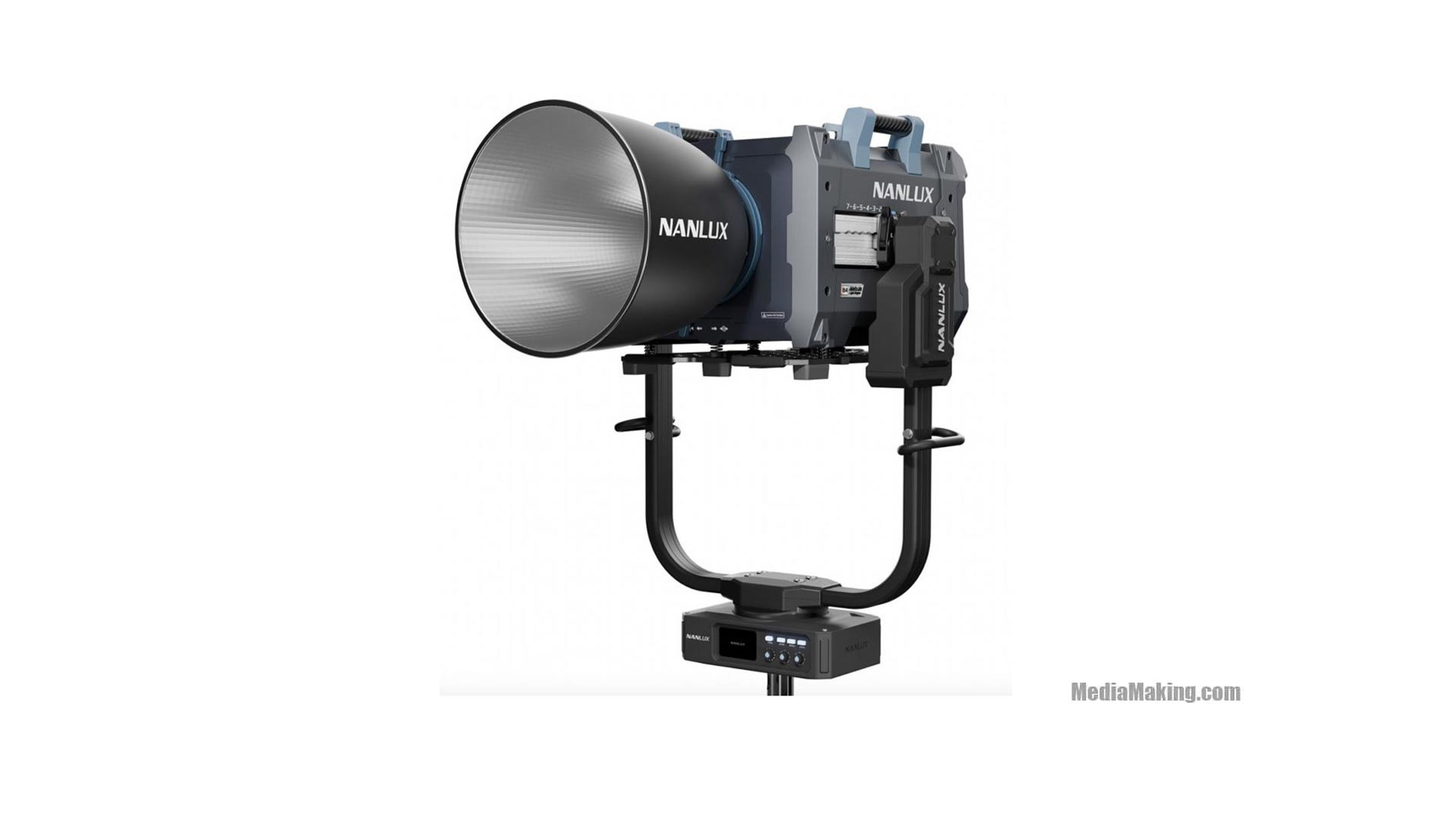

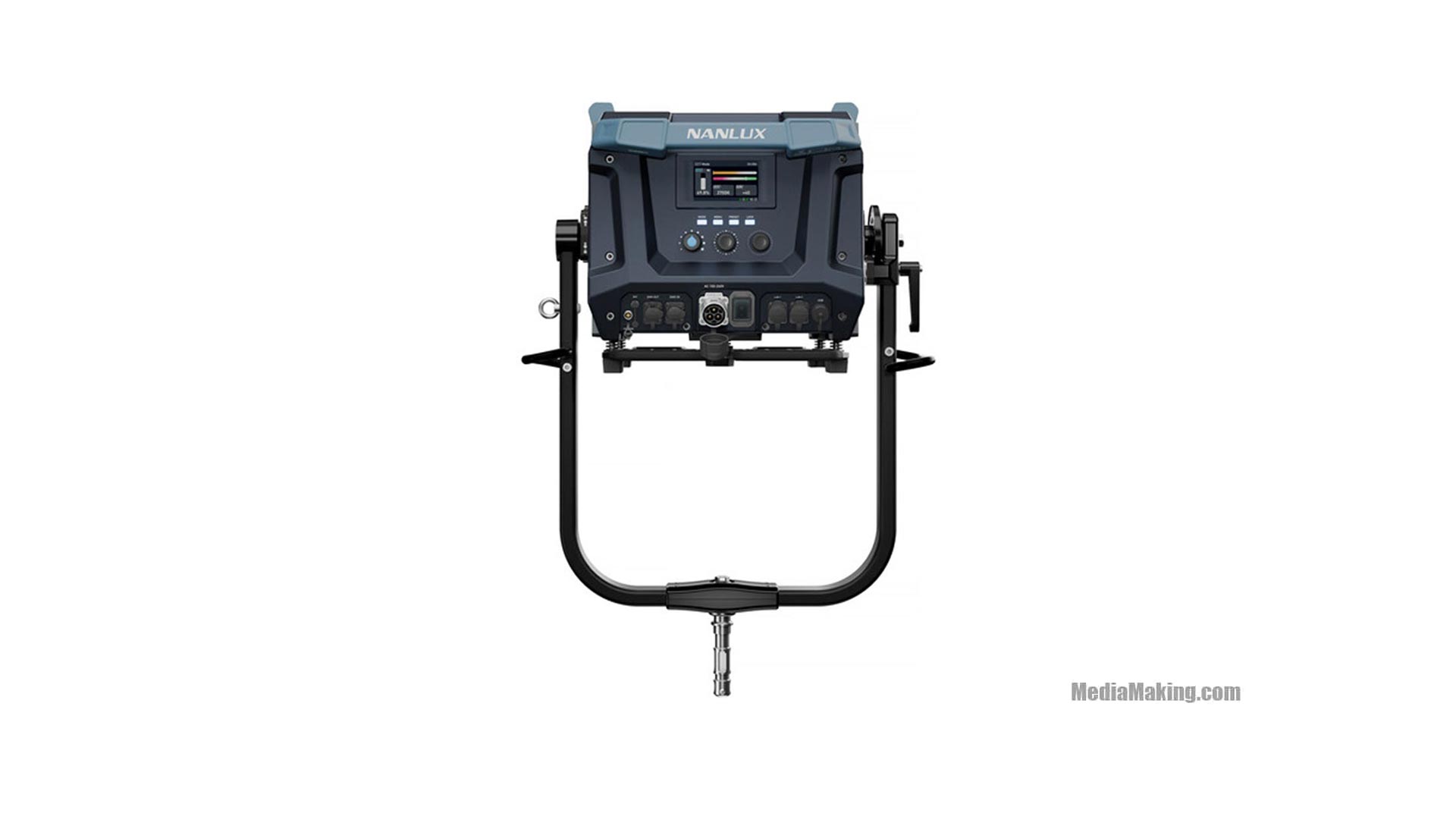

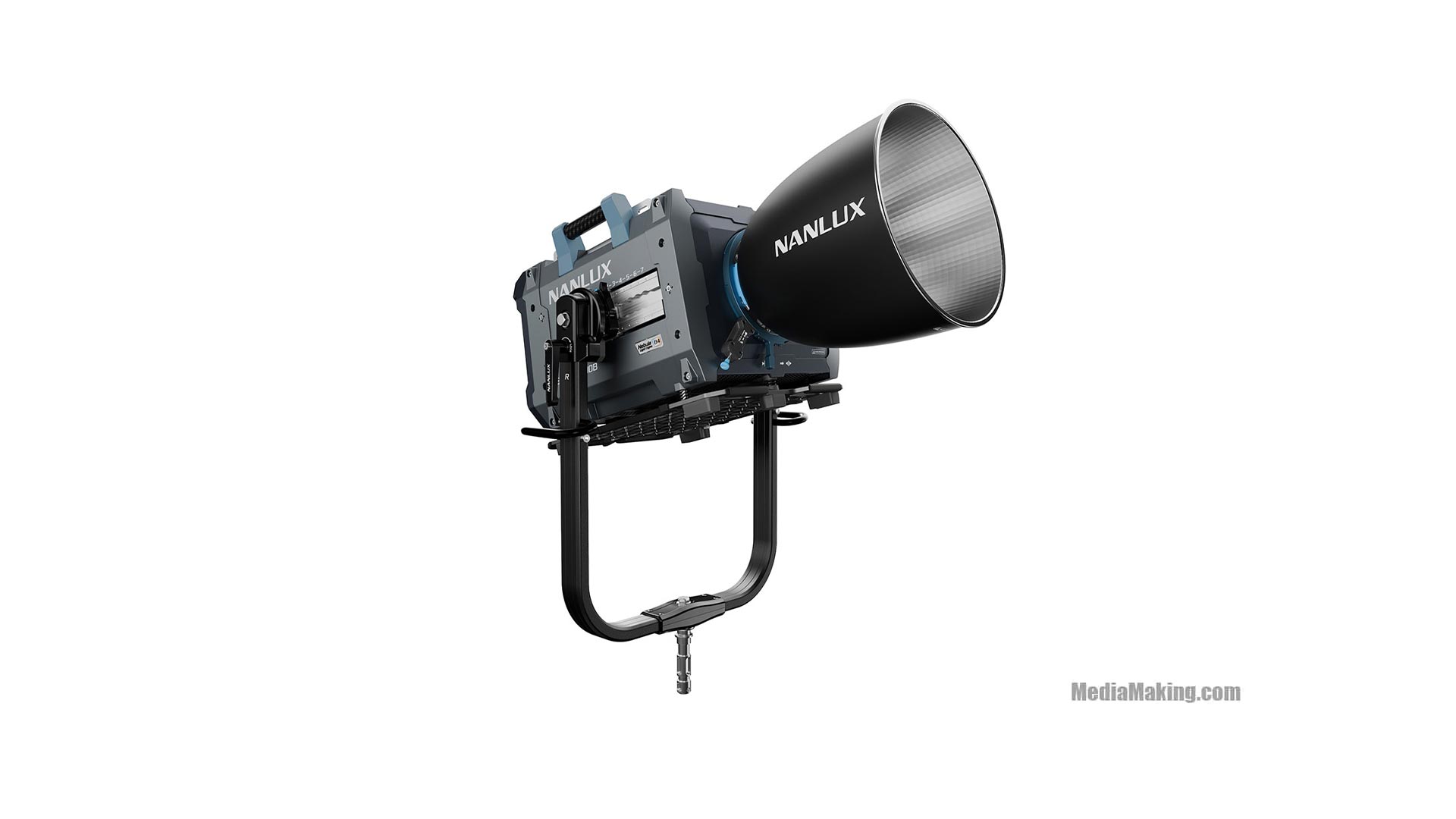

Nanlux LED spot light Evoke 5000B bicolor

Nanlux LED spot light Evoke 5000B bicolor
Nanlux LED spot light Evoke 5000B bicolor is a versatile LED lamp designed for professional film and photography applications. It offers a high power output of 5000 watts, providing powerful illumination suitable for various shooting scenarios. The luminaire has a color temperature range of 2700K to 6500K, allowing precise control of the lighting environment. It also supports a wide range of dimming options, allowing users to adjust the light intensity according to their specific needs. This light engine not only provides white light efficiency, but also offers a color temperature range of 2700K to 6500K and ±80 adjustment for Green/Magenta. With an ultra-high input power of 5000W, it is the only bi-color projector of this power that can adjust both color temperature and Green/Magenta values. Integrated professional CSP chips and ultra-high LED light efficiency enable the Evoke 5000B to produce outstanding illumination, approaching that of a 9kW HMI or a 24kW tungsten light. In response to the need for high light efficiency and functionality, NANLUX developed the innovative Nebula B4 light engine. This engine integrates four different types of white light chips, enabling Green/Magenta adjustment over the entire color temperature range of a two-tone fixture. Compared with two-color lighting produced by full-color light engines, the Nebula B4 offers 30% higher luminous efficiency for the same power consumption.
Specifications
